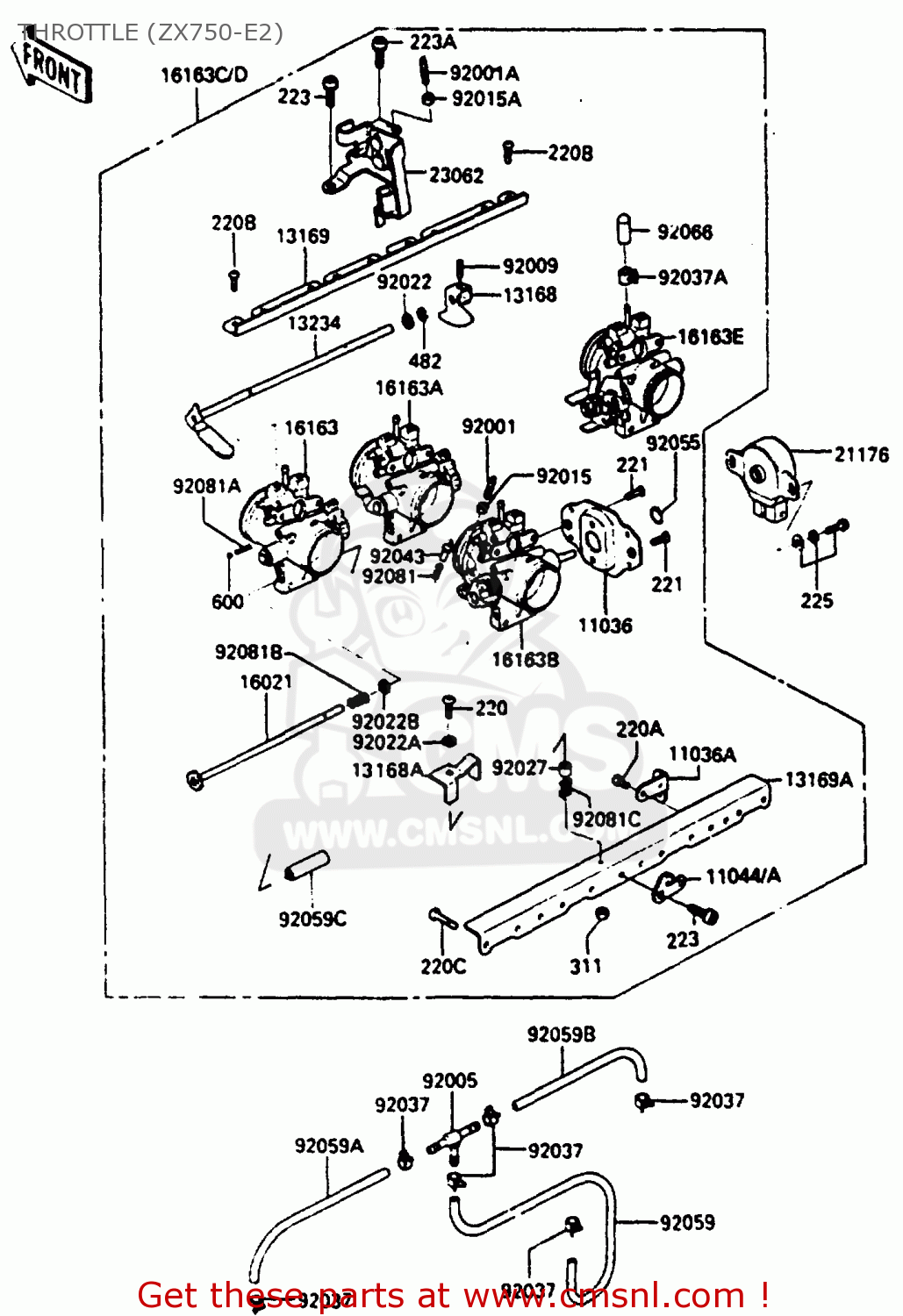

THROTTLE (ZX750-E2)

ref

part #

description

quantity

11036

110361481
ref: 11036

BRACKET-A,THROTTLE SE

€ 35.00

11036A

110361491
ref: 11036A

BRACKET-A,STAY LWR

€ 8.50

11044

110441077
ref: 11044
EU, FR, GR, IF, NR,

BRACKET,THROTTLE STOP

€ 9.50

11044A

110441132
ref: 11044A
SD, WG

BRACKET

€ 10.50

13168

131681118
ref: 13168

LEVER,FAST IDLE

€ 9.50

13168A

131681218
ref: 13168A

LEVER,IDLING LINK

€ 22.50

13169

131691521
ref: 13169

PLATE,THROTTLE STAY U

€ 22.00

13169A

131691522
ref: 13169A

PLATE,THROTTLE STAY L

€ 29.00

13234

132341008
ref: 13234

SHAFT-COMP,FAST IDLE

€ 49.00

16021

160211044
ref: 16021

SCREW-THROTTLE STOP

€ 28.50

16163

161631059
ref: 16163

THROTTLE-ASSY,LH,OUTS

€ 103.00

16163A

161631060
ref: 16163A

THROTTLE-ASSY,LH,INSI

€ 86.50

16163B

161631062
ref: 16163B

THROTTLE-ASSY,RH,OUTS

€ 67.00

16163C

161631074
ref: 16163C
EU, FR, GR, IT, NR,

THROTTLE-ASSY

€ 535.00

16163D

161631076
ref: 16163D
SD, WG

THROTTLE-ASSY

€ 449.00

16163E

161631077
ref: 16163E

THROTTLE-ASSY,RH,INSI

€ 132.00

21176

211761004
ref: 21176

SENSOR,THROTTLE

€ 460.00

23062

230621058
ref: 23062

BRACKET-COMP,THROTTLE

€ 65.50

92001

920011447
ref: 92001

BOLT,ADJUSTING

€ 6.50

92001A

920011909
ref: 92001A

BOLT,THROTTLE BRACKET

€ 6.50

92005

920051017
ref: 92005

FITTING,TUBE

€ 6.50

92009

920091147
ref: 92009

SCREW,FAST IDLE LEVER

€ 6.00

92015

920151119
ref: 92015

NUT,THROTTLE VALVE AD

€ 3.50

92015A

920151348
ref: 92015A

NUT,THROTTLE BRACKET

€ 0.50

92022

16039019
ref: 92022

WASHER-PLAIN

€ 3.00

92022A

16039038
ref: 92022A

WASHER,PLAIN

€ 3.00

92022B

920221361
ref: 92022B

WASHER,THROTTLE STOP

€ 1.50

92027

920271203
ref: 92027

COLLAR,STEPPED

€ 5.00

92037

920371461
ref: 92037

CLAMP,TUBE

€ 1.00

92037A

920371462
ref: 92037A

CLAMP

€ 1.00

92043

920431079
ref: 92043

PIN,THROTTLE VALVE AD

€ 3.50

92055

920551226
ref: 92055

RING-O,THROTTLE SENSO

€ 5.50

92059

920591043
ref: 92059

TUBE,TUBE 4X9X290

€ 7.00

92059A

920591068
ref: 92059A

TUBE,4 X9 X230M/M

€ 12.50

92059B

920591193
ref: 92059B

TUBE

€ 12.50

92059C

920591371
ref: 92059C

TUBE,ANTI-VIBRATION

€ 3.50

92066

92068006
ref: 92066

RUBBER PLUG

€ 2.50

92081

920811299
ref: 92081

SPRING

€ 129.50

92081A

920811260
ref: 92081A

SPRING,FAST IDLE SHFT

€ 3.50

92081B

920811538
ref: 92081B

SPRING,THROTTLE STOP

€ 2.00

92081C

920811539
ref: 92081C

SPRING,IDLING LINK

€ 9.50

220

220B0418
ref: 220

SCREW-PAN-CROS,4X18

€ 3.00

220A

220C0506
ref: 220A

SCREW-PAN-CROS

€ 1.50

220B

220C0510
ref: 220B

SCREW-PAN-CROS

€ 2.50

220C

220C0616
ref: 220C

SCREW-PAN-CROS,6X12,B

€ 2.50

221

221B0510
ref: 221

SCREW-CNTSNK HD,5X10

€ 2.50

223

223B0508
ref: 223

SCREW-PAN-WS-CROS

€ 0.50

223A

223B0512
ref: 223A

SCREW-PAN-WS-CROS

€ 2.50

225

225B0510
ref: 225

SCREW-PAN-WSP-CROS

€ 0.50

311

311B0400
ref: 311

NUT-HEX,4MM

€ 0.50

482

482L4000
ref: 482

CIRCLIP-TYPE-E,4MM

€ 0.50

600

600A0400
ref: 600

BALL-STEEL,1/8

€ 2.00
