CYLINDER/PISTON

ZX750E2 1985 EUROPE UK FR FU GR IT NR SD

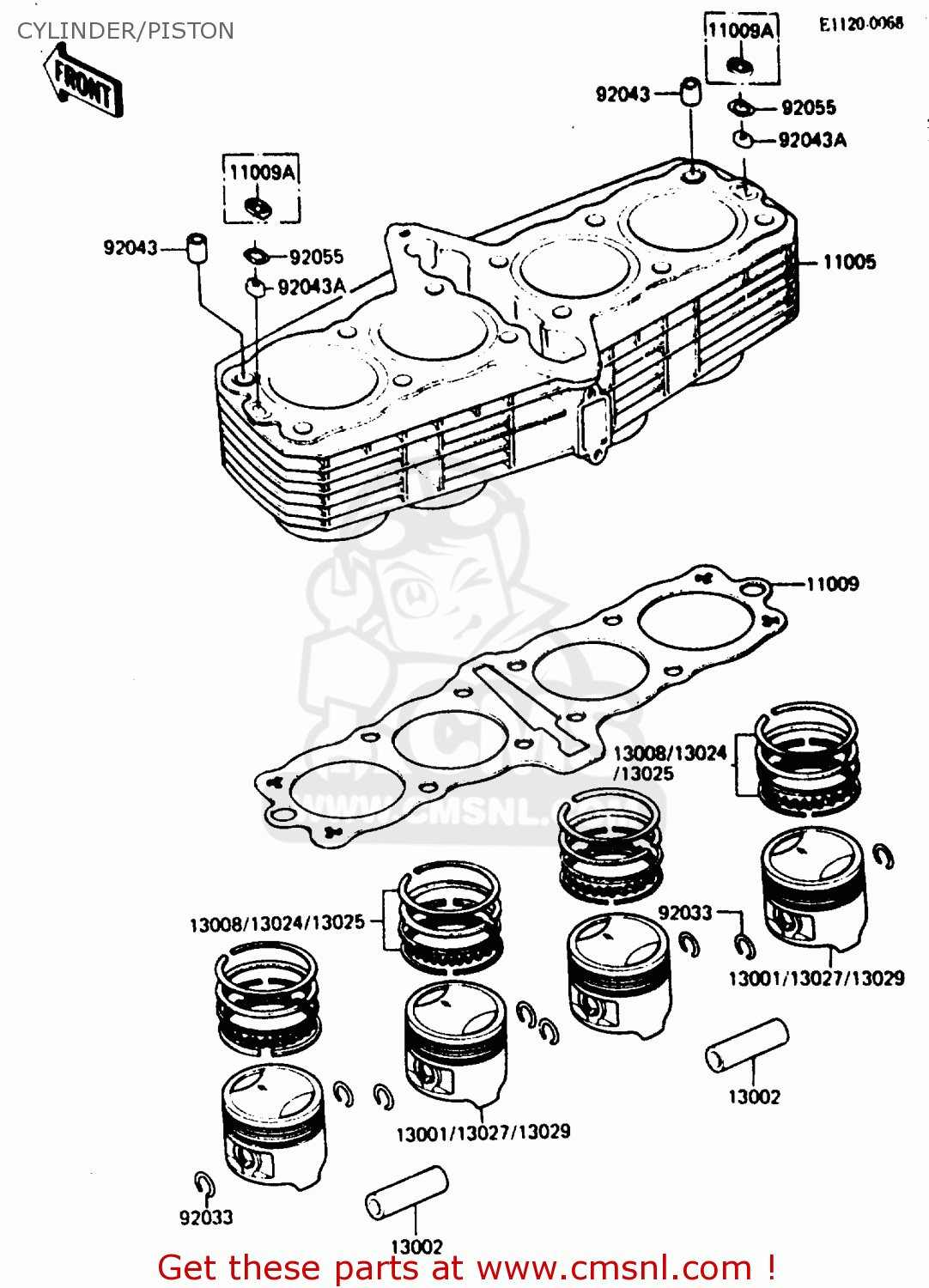

Cylinder/piston diagram ZX750E2 1985 EUROPE UK FR FU GR IT NR SD

prices are in EUR

ref

part #

description

quantity

11005

110051306
ref: 11005

CYLINDER-ENGINE,F.BLA

€ 1,267.00

11009

110091154
ref: 11009

GASKET,CYLINDER BASE (MCA)

€ 23.50

11009A

110091419
ref: 11009A

GASKET,CYLINDER OIL L (NAS)

€ 10.50

13001

130011165
ref: 13001

PISTON-ENGINE,STD

€ 59.50

13002

130021053
ref: 13002

PIN-PISTON

€ 16.50

13008

130085046
ref: 13008

RING-SET-PISTON,STD

€ 56.00

13024

130245022
ref: 13024

RING-SET-PISTON LL,O/

€ 67.00

13025

130255022
ref: 13025

RING-SET-PISTON L,O/S

€ 67.00

13027

130271113
ref: 13027

PISTON-ENGINE LL,O/S

€ 70.50

13029

130291112
ref: 13029

PISTON-ENGINE L,O/S 0

€ 70.50

92033

920331161
ref: 92033

RING-SNAP,PISTON PIN

€ 2.50

92043

92042028
ref: 92043

PIN-DOWEL

€ 1.00

CYLINDER/PISTON

all assemblies
