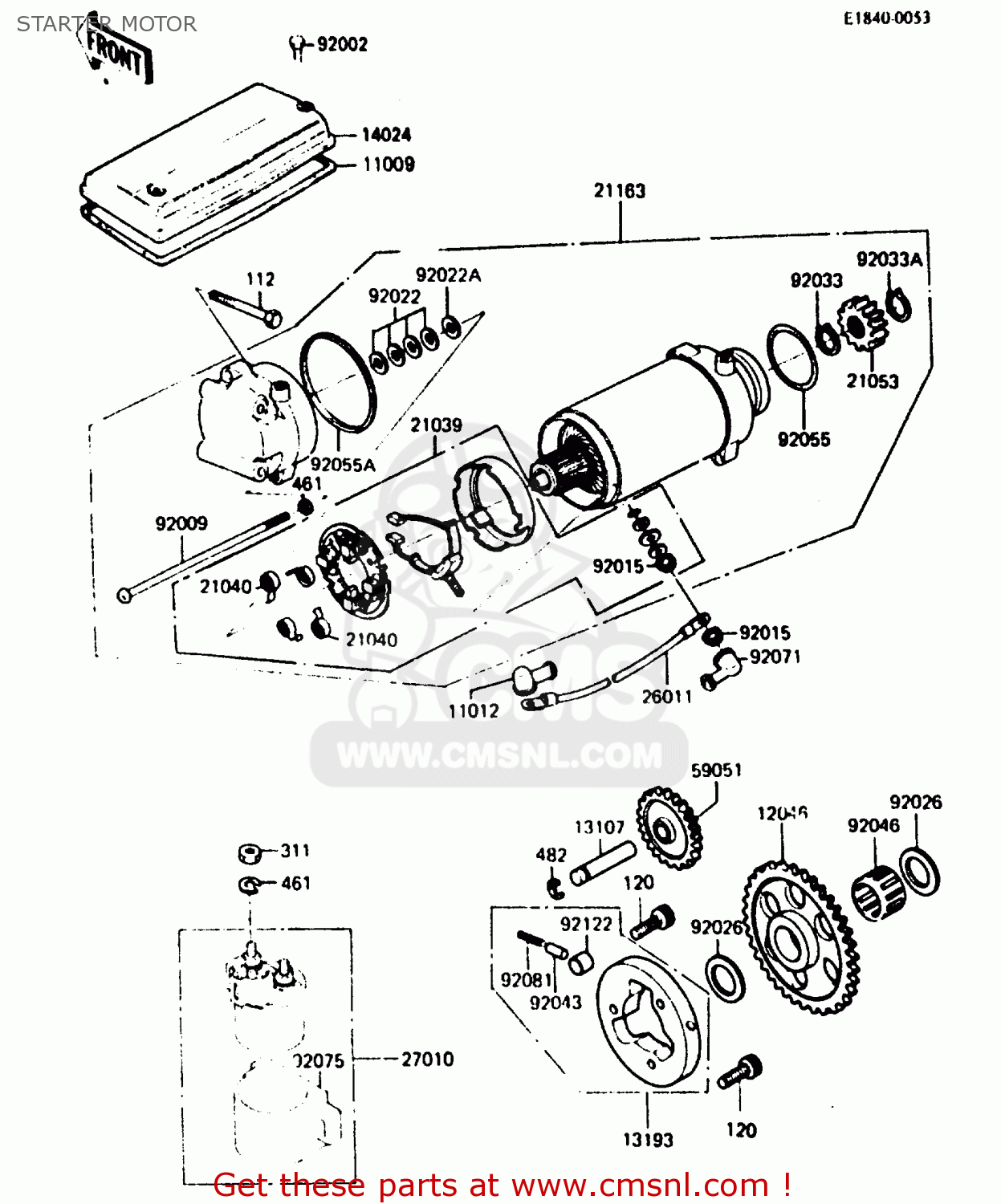

STARTER MOTOR

ref

part #

description

quantity

11009

21166003
ref: 11009

GASKET,STARTER COVER (NAS)

€ 9.50

11012

110121354
ref: 11012

CAP,TERMINAL

€ 7.00

12046

120461032
ref: 12046

SPROCKET,STARTER,58T

€ 99.50

13107

21143003
ref: 13107

SHAFT,IDLE GEAR

€ 10.00

13193

131931012
ref: 13193

CLUTCH TARIER

€ 152.50

14024

140251441
ref: 14024

COVER,STARTER,F.BLACK

€ 23.50

21039

210391006
ref: 21039

BRUSH,CARBON

€ 89.50

21040

210401003
ref: 21040

SPRING-BRUSH

€ 6.00

21053

21053004
ref: 21053

PINION, STARTER

€ 69.00

21163

211631053
ref: 21163

STARTER-ELECTRIC

€ 633.50

26011

260111073
ref: 26011

WIRE-LEAD,STARTER MOT

€ 41.00

27010

270101235
ref: 27010

SWITCH,MAGNETIC

€ 102.50

59051

21167004
ref: 59051

GEAR-SPUR,IDLE,29T

€ 69.50

92002

920021098
ref: 92002

BOLT,6X10

€ 2.00

92009

21099006
ref: 92009

SCREW,PAN HEAD, 6X130

€ 4.50

92015

920151195
ref: 92015

NUT,FLANGED,6MM

€ 1.50

92022

21025011
ref: 92022

WASHER, THRUST, 0.2T

€ 4.00

92022A

920221132
ref: 92022A

WASHER,9.1X18X0.8

€ 4.00

92026

920261025
ref: 92026

SPACER,25X36X3.2

€ 3.50

92033

92033034
ref: 92033

CIRCLIP

€ 7.00

92033A

92033037
ref: 92033A

RING-SNAP,13MM

€ 6.50

92043

92043087
ref: 92043

PIN

€ 8.00

92046

92046056
ref: 92046

BEARING-NEEDLE,K25301

€ 24.00

92055

21027008
ref: 92055

O RING, 40M/M

€ 8.50

92055A

920551086
ref: 92055A

O RING,64MM

€ 6.50

92071

21017017
ref: 92071

GROMMET-CORD

€ 6.50

92075

21064002
ref: 92075

DAMPER,MAGNETIC SWITC

€ 13.50

92081

92081110
ref: 92081

SPRING

€ 3.00

92122

92122004
ref: 92122

ROLLER,15X13

€ 7.00

112

112G0660
ref: 112

BOLT-UPSET

€ 3.00

120

120P0812
ref: 120

BOLT,SOCKET,8X12

€ 2.50

311

311B0600
ref: 311

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

482

482J0200
ref: 482

CIRCLIP-TYPE-E,12MM

€ 2.50

all assemblies
