FRONT FORK
ZX750A5 GPZ750 1987 USA

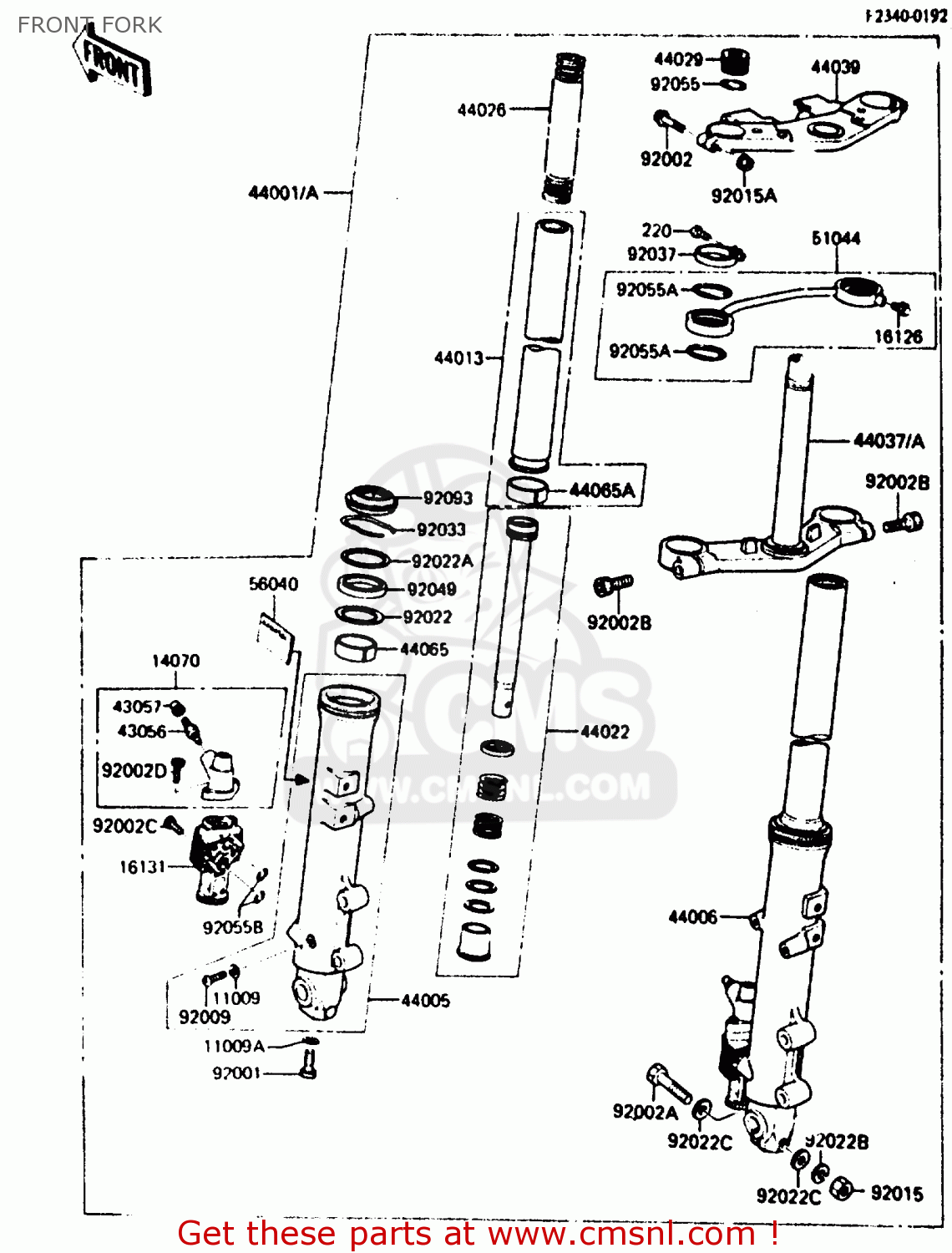

Front fork diagram ZX750A5 GPZ750 1987 USA
FRONT FORK ZX750A5 GPZ750 1987 USA
×
prices are in EUR
ref
part #
description
quantity
11009
44045002
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009A
44045057
ref: 11009A
GASKET (NAS)
€ 3.00
14070
140701055
ref: 14070
BODY-BREATHER,FORK,AN
€ 157.00
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
16131
161311055
ref: 16131
BODY-VALVE,FORK,ANTI-
€ 140.00
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
€ 3.00
44001
440011578
ref: 44001
FORK-FRONT
€ 1,212.50
44005
440051131
ref: 44005
PIPE-LEFT FORK OUTER
€ 285.00
44006
440061131
ref: 44006
PIPE-RIGHT FORK OUTER
€ 230.00
44013
440131226
ref: 44013
PIPE-FORK INNER
€ 149.50
44022
440221159
ref: 44022
CYLINDER-FORK
€ 89.00
44026
440261253
ref: 44026
SPRING-FRONT FORK
€ 51.00
44029
440291035
ref: 44029
SEAT-FORK SPRING
€ 16.50
44037
440371111
ref: 44037
HOLDER-FORK UNDER
€ 175.50
44039
440391073
ref: 44039
HOLDER-FORK UPPER
€ 197.50
44065
440651051
ref: 44065
BUSHING-FRONT FORK
€ 15.00
44065A
440651058
ref: 44065A
BUSHING-FRONT FORK,IN
€ 20.00
51044
510441027
ref: 51044
TUBE-ASSY
€ 94.00
56040
560401030
ref: 56040
LABEL-WARNING,FRONT F
€ 2.50
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92002
920021158
ref: 92002
BOLT,FLANGED,8X55
€ 6.00
92002A
920021163
ref: 92002A
BOLT,8X60
€ 5.50
92002B
920021164
ref: 92002B
BOLT,SOCKET,12X30
€ 8.50
92002C
920021166
ref: 92002C
BOLT,SOCKET,6X16
€ 4.50
92002D
920021289
ref: 92002D
BOLT,SOCKET,5X12
€ 2.50
92009
920091324
ref: 92009
SCREW,4X8
€ 2.50
92015
920151400
ref: 92015
NUT,8MM
€ 3.00
92015A
920151408
ref: 92015A
NUT,FLANGED,8MM
€ 1.00
92022
920221455
ref: 92022
WASHER,FORK OUTER PIP
€ 4.50
92022A
920221456
ref: 92022A
WASHER,FORK OUTER PIP
€ 3.50
92022B
920221552
ref: 92022B
WASHER,SPRING,8MM
€ 2.50
92022C
920221554
ref: 92022C
WASHER,PLAIN,8MM
€ 3.00
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92037
920371454
ref: 92037
CLAMP,FRONT FORK
€ 8.50
92049
920491177
ref: 92049
SEAL-OIL,FORK
€ 15.00
92055
920551132
ref: 92055
RING-O,FORK SPRING SE
€ 4.00
92055A
920551164
ref: 92055A
RING-O,TUBE ASSY
€ 5.50
92055B
920551201
ref: 92055B
RING-O,AND
€ 1.00
92093
920931160
ref: 92093
SEAL,FORK
€ 16.50
220
220E0412
ref: 220
SCREW-PAN-CROS
€ 2.00
