OIL PAN

ZX636C1 NINJA ZX6R 2005 USA CALIFORNIA CANADA

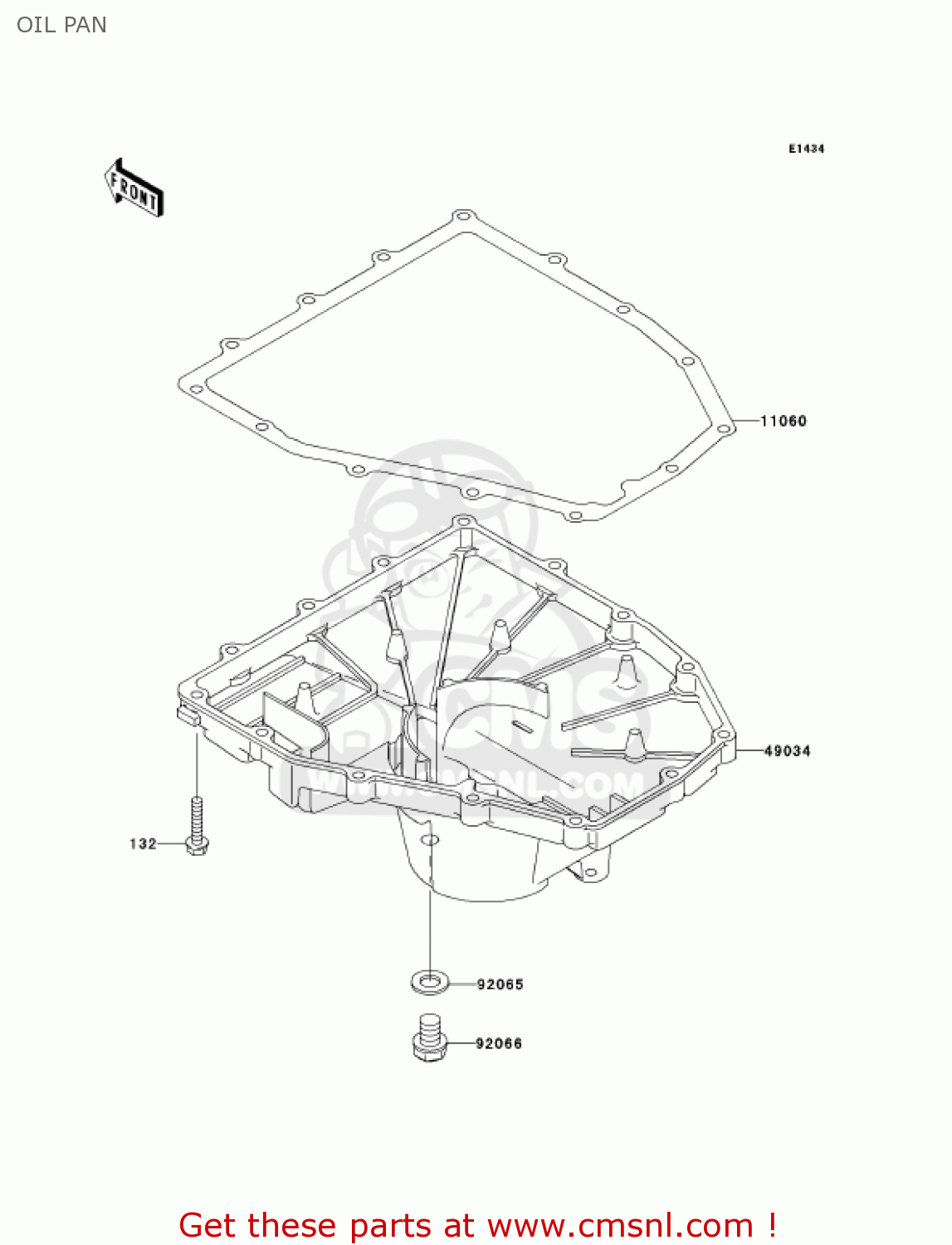

Oil pan diagram ZX636C1 NINJA ZX6R 2005 USA CALIFORNIA CANADA

OIL PAN ZX636C1 NINJA ZX6R 2005 USA CALIFORNIA CANADA

OIL PAN ZX636C1 NINJA ZX6R 2005 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

132

132J0630
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

11060

110601996
ref: 11060

GASKET,OIL PAN (NAS)

€ 22.00

49034

490341147
ref: 49034

PAN-OIL

€ 181.00

92065

92065097
ref: 92065

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

92066

920661174
ref: 92066

PLUG,OIL DRAIN,12X15

€ 4.00
