GENERATOR

ZX636C1 NINJA ZX6R 2005 USA CALIFORNIA CANADA

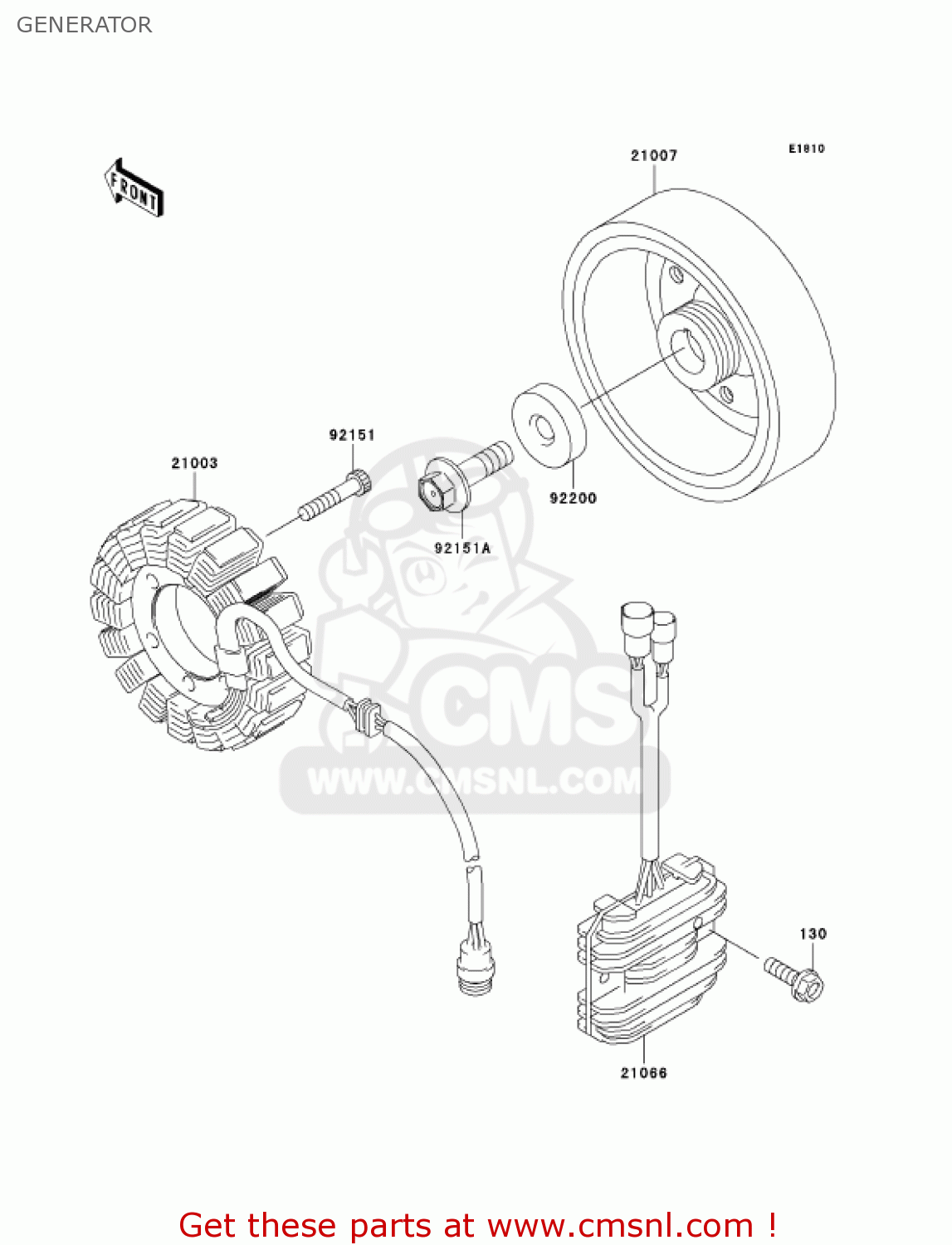

Generator diagram ZX636C1 NINJA ZX6R 2005 USA CALIFORNIA CANADA

GENERATOR ZX636C1 NINJA ZX6R 2005 USA CALIFORNIA CANADA

GENERATOR ZX636C1 NINJA ZX6R 2005 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130H0620
ref: 130

BOLT-FLANGED

€ 0.50

21003

210030001
ref: 21003

STATOR

€ 544.50

21007

210070001
ref: 21007

ROTOR

€ 513.00

21066

210660002
ref: 21066

REGULATOR-VOLTAGE

€ 215.00

92151

921511626
ref: 92151

BOLT,6X30

€ 1.50

92151A

921511653
ref: 92151A

BOLT,10X40

€ 5.50

92200

922001667
ref: 92200

WASHER

€ 4.50
