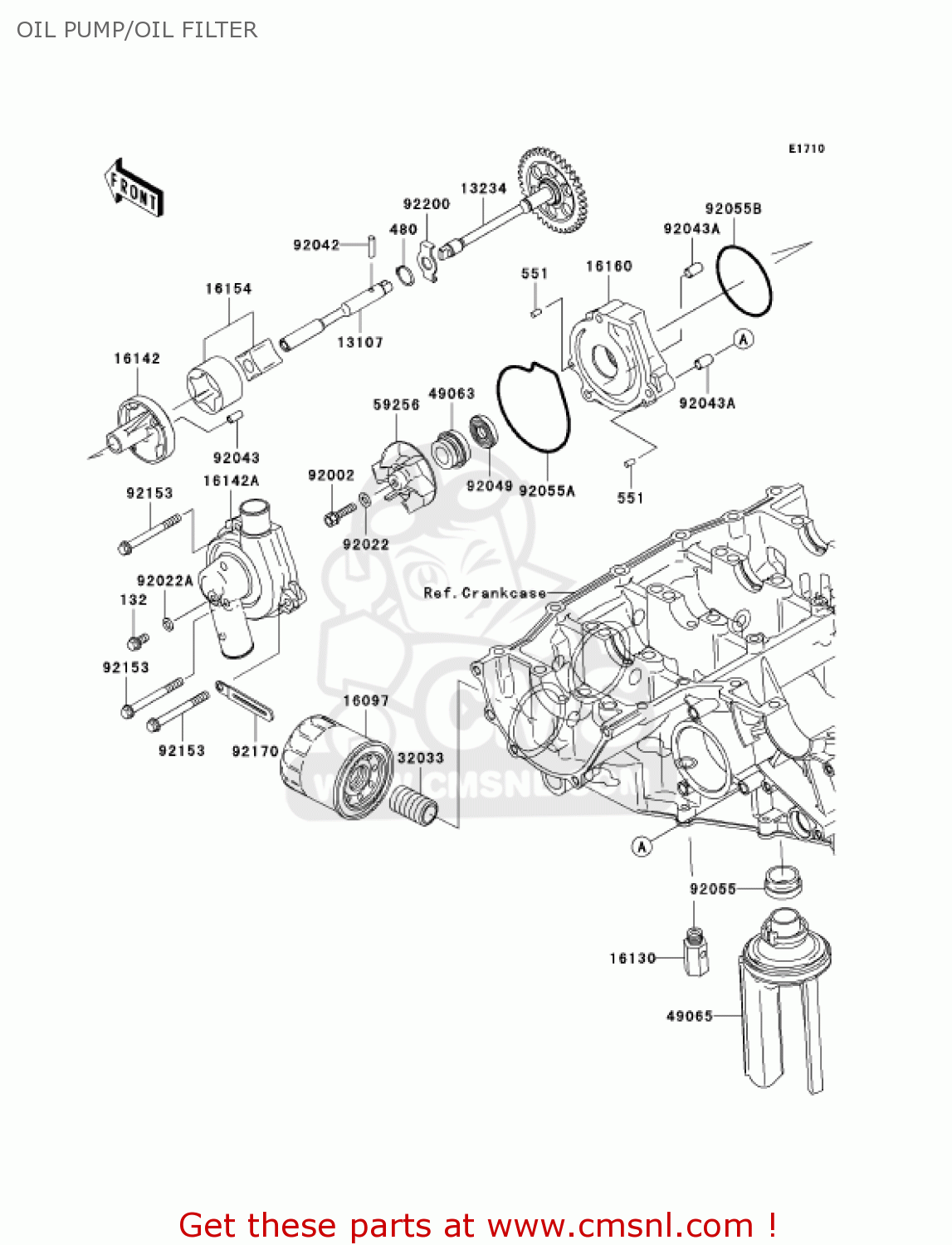

OIL PUMP/OIL FILTER

ref

part #

description

quantity

132

132L0612
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

480

480J1100
ref: 480

CIRCLIP-TYPE-C,11MM

€ 0.50

551

551A0408
ref: 551

PIN-DOWEL,4X8

€ 0.50

13107

131070072
ref: 13107

SHAFT,LH

€ 46.50

13234

132340012
ref: 13234

SHAFT-COMP

€ 76.50

16097

160970002A
ref: 16097

FILTER-ASSY-OIL

€ 10.50

16130

161301058
ref: 16130

VALVE-ASSY-RELIEF

€ 30.00

16142

161420017
ref: 16142

COVER-PUMP,OIL

€ 31.50

16142A

161420018
ref: 16142A

COVER-PUMP,WATER

€ 142.00

16154

161541124
ref: 16154

ROTOR-PUMP

€ 55.00

16160

161600068
ref: 16160

BODY,OIL PUMP

€ 117.00

32033

320331535
ref: 32033

PIPE

€ 9.00

49063

490631055
ref: 49063

SEAL-MECHANICAL

€ 17.00

49065

490650008
ref: 49065

FILTER-OIL

€ 25.50

59256

592561074
ref: 59256

IMPELLER

€ 32.50

92002

920021154
ref: 92002

BOLT,6X22

€ 3.00

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92022A

92022304
ref: 92022A

WASHER,PLAIN

€ 2.50

92042

92042014
ref: 92042

PIN-GEAR CHANGE DRUM

€ 0.50

92043

920431262
ref: 92043

PIN,DOWEL,4.2X6X12

€ 2.50

92043A

920431263
ref: 92043A

PIN,DOWEL,6.2X8X14

€ 0.50

92049

920491336
ref: 92049

SEAL-OIL,OIL PUMP

€ 20.50

92055

920551503
ref: 92055

RING-O,OIL FILTER

€ 6.50

92055A

920551532
ref: 92055A

RING-O,WATER PUMP COV

€ 10.50

92055B

920553018
ref: 92055B

RING-O,59.6X2.4

€ 4.00

92153

921530780
ref: 92153

BOLT,6X60

€ 2.00

92170

921701514
ref: 92170

CLAMP

€ 2.50

92200

922000041
ref: 92200

WASHER,11.3X21X1.6

€ 2.50
