GEAR CHANGE MECHANISM

ZX600N1 NINJA ZX6RR 2005 USA CALIFORNIA CANADA

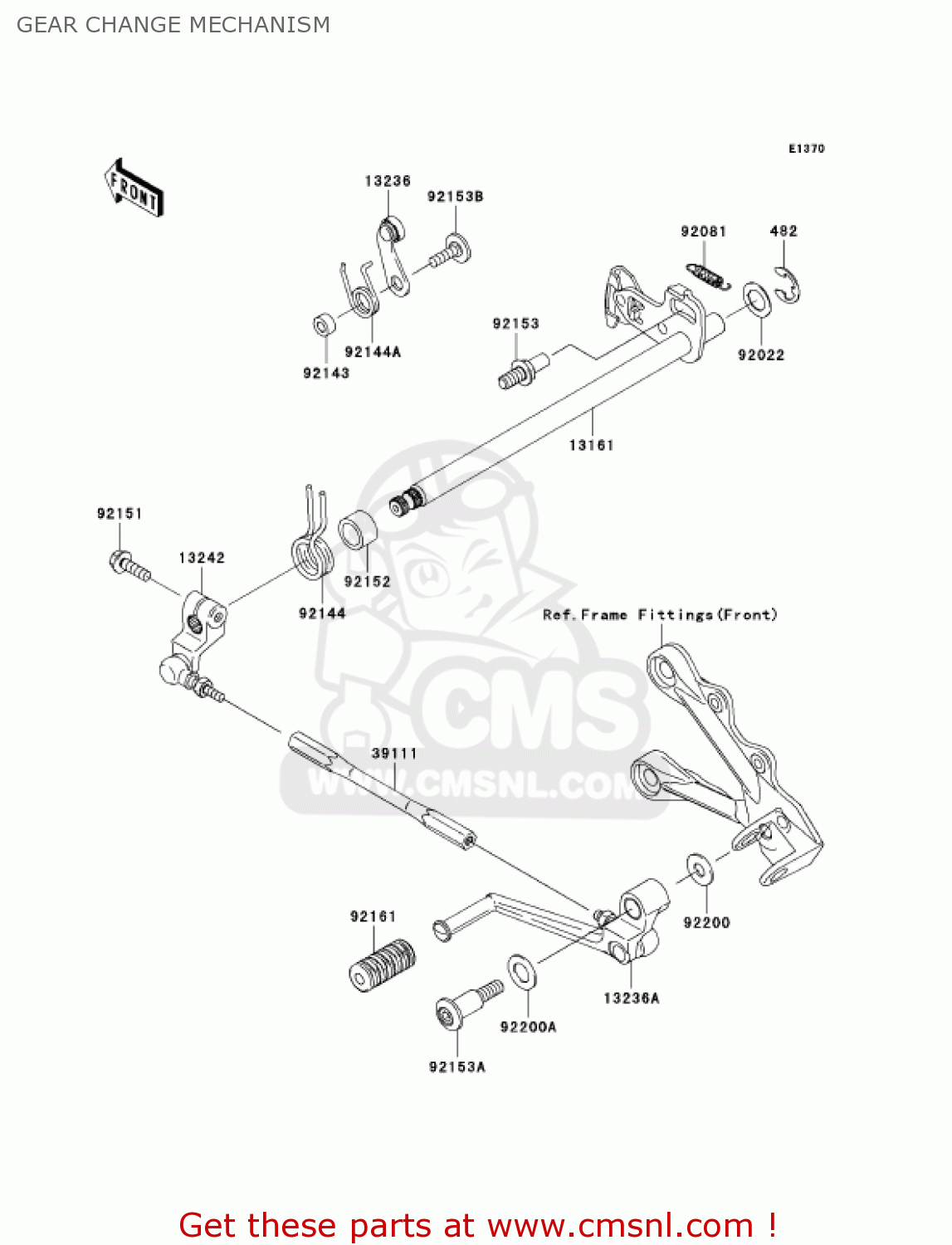

Gear change mechanism diagram ZX600N1 NINJA ZX6RR 2005 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM ZX600N1 NINJA ZX6RR 2005 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZX600N1 NINJA ZX6RR 2005 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZX600N1 NINJA ZX6RR 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
482J0200
482J0200
ref: 482J0200
CIRCLIP-TYPE-E,12MM
482J0200
€ 2.50
13161
131610021
ref: 13161
LEVER-COMP-CHANGE SHA
131610021
€ 80.00
13236
132360068
ref: 13236
LEVER-COMP
132360068
€ 9.50
13236
132360078
ref: 13236
LEVER-COMP,CHANGE PED
132360078
€ 86.00
13242
132421348
ref: 13242
LEVER-ASSY-CHANGE,BOS
132421348
€ 37.50
39111
391111164
ref: 39111
ROD-TIE
391111164
€ 73.00
92022
920221628
ref: 92022
WASHER,CHANGE SHAFT
920221628
€ 4.50
92081
920811708
ref: 92081
SPRING,PAWL RETURN
920811708
€ 4.00
92143
921431595
ref: 92143
COLLAR
921431595
€ 6.50
92144
921441345
ref: 92144
SPRING,CHANGE PEDAL R
921441345
€ 11.50
92144
921441523
ref: 92144
SPRING,GEAR POSITION
921441523
€ 6.00
92151
921511226
ref: 92151
BOLT,6X20
921511226
€ 1.50
92152
921521383
ref: 92152
COLLAR
921521383
€ 2.50
92153
921530421
ref: 92153
BOLT,RETURN SPRING
€ 6.50
92153
921530880
ref: 92153
BOLT,8X41
921530880
€ 7.50
92153
921530896
ref: 92153
BOLT,6X20
921530896
€ 5.00
92161
921611300
ref: 92161
DAMPER,CHANGE PEDAL
921611300
€ 4.00
92200
922000198
ref: 92200
WASHER,8.5X20X1.5
922000198
€ 2.00
92200
922000199
ref: 92200
WASHER,12.5X22X1.2
922000199
€ 2.00
