STARTER MOTOR

ZX600J7F ZZR600 2007 USA CALIFORNIA CANADA

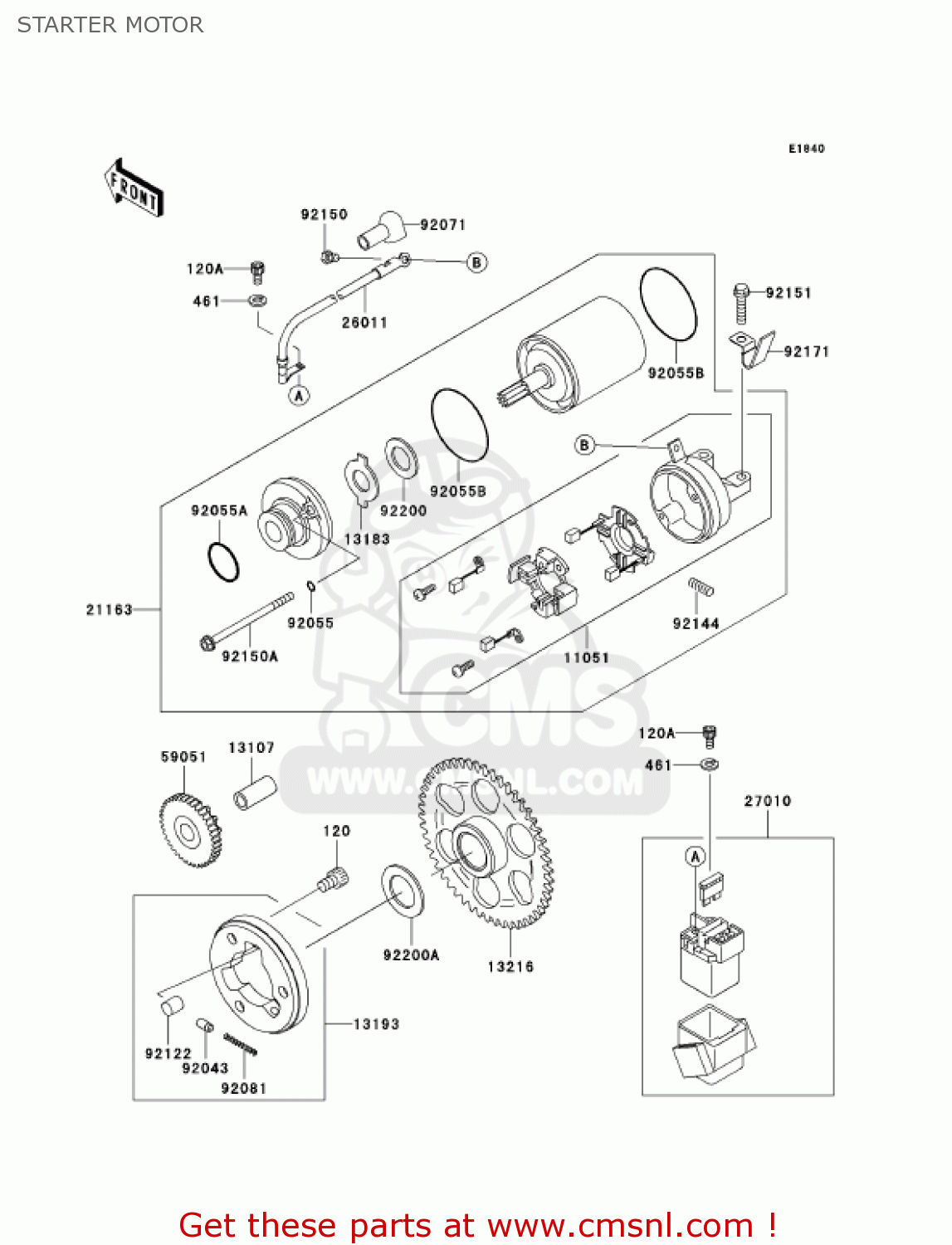

Starter motor diagram ZX600J7F ZZR600 2007 USA CALIFORNIA CANADA

STARTER MOTOR ZX600J7F ZZR600 2007 USA CALIFORNIA CANADA
STARTER MOTOR ZX600J7F ZZR600 2007 USA CALIFORNIA CANADA
STARTER MOTOR ZX600J7F ZZR600 2007 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120P0812
ref: 120
BOLT,SOCKET,8X12
120P0812
€ 2.50
120A
120S0510
ref: 120A
BOLT-SOCKET
120S0510
€ 0.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
461K0500
€ 0.50
11051
110511916
ref: 11051
BRACKET,STARTER MOTOR
€ 110.50
13107
131071176
ref: 13107
SHAFT,7.8X12X26.5
131071176
€ 6.50
13183
131831460
ref: 13183
PLATE
€ 9.00
13193
131930001
ref: 13193
CLUTCH-ASSY-ONEWAY
€ 129.50
13216
132161194
ref: 13216
GEAR-COMP,ONEWAY CLUT
€ 139.50
21163
211631304
ref: 21163
STARTER-ELECTRIC
€ 653.00
26011
260111694
ref: 26011
WIRE-LEAD,STARTER
€ 54.00
27010
270101380
ref: 27010
SWITCH
270101380
€ 117.50
59051
590511200
ref: 59051
GEAR-SPUR,IDLE,48T&14
590511200
€ 57.00
92043
92043132
ref: 92043
PIN
92043132
€ 4.00
92055
920551261
ref: 92055
RING-O,4.5MM
920551261
€ 2.00
92055A
920551262
ref: 92055A
RING-O,24.4X3.1
920551262
€ 8.50
92055B
920551455
ref: 92055B
RING-O
€ 9.50
92071
920711182
ref: 92071
GROMMET,TERMINAL
€ 8.00
92081
92081159
ref: 92081
SPRING, COIL
92081159
€ 2.50
92122
92122006
ref: 92122
ROLLER
92122006
€ 4.00
92144
921441423
ref: 92144
SPRING,BRUSH
921441423
€ 3.00
92150
921501305
ref: 92150
BOLT
€ 3.00
92150A
921501326
ref: 92150A
BOLT
€ 12.50
92151
921511930
ref: 92151
BOLT,6X25
921511930
€ 2.00
92171
921711238
ref: 92171
CLAMP
921711238
€ 3.00
92200
922001019
ref: 92200
WASHER
922001019
€ 5.00
92200A
922001393
ref: 92200A
WASHER,27.5X38X1.0
922001393
€ 2.50
