GEAR CHANGE MECHANISM

ZX600J7F ZZR600 2007 USA CALIFORNIA CANADA

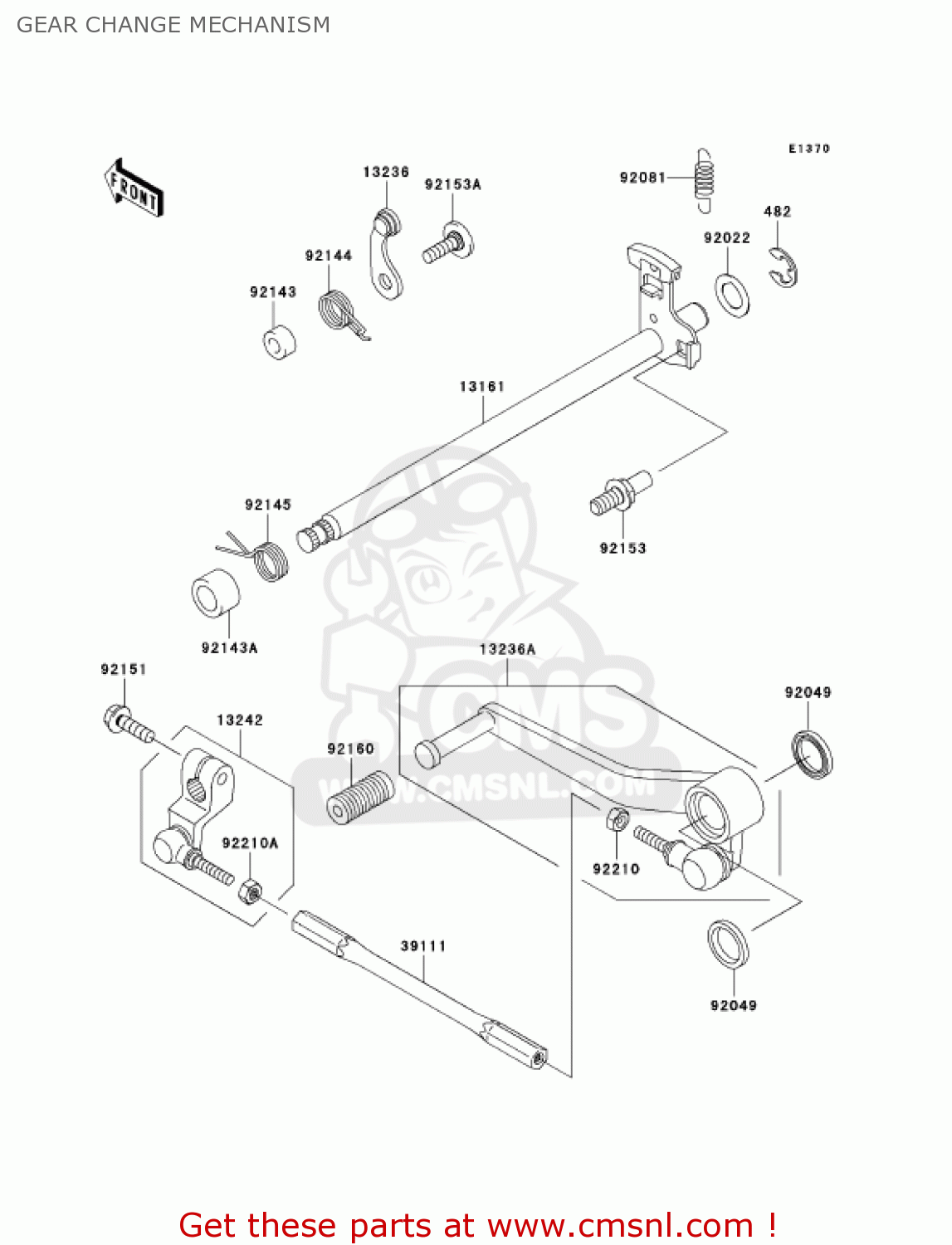

Gear change mechanism diagram ZX600J7F ZZR600 2007 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM ZX600J7F ZZR600 2007 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZX600J7F ZZR600 2007 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZX600J7F ZZR600 2007 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
482
482J0200
ref: 482
CIRCLIP-TYPE-E,12MM
482J0200
€ 2.50
13161
131611270
ref: 13161
LEVER-COMP-CHANGE SHA
131611270
€ 77.50
13236
132361243
ref: 13236
LEVER-COMP
132361243
€ 13.00
13236A
132361317
ref: 13236A
LEVER-COMP,CHANGE PED
132361317
€ 81.00
13242
132421348
ref: 13242
LEVER-ASSY-CHANGE,BOS
132421348
€ 37.50
39111
391111165
ref: 39111
ROD-TIE
391111165
€ 72.00
92022
920221628
ref: 92022
WASHER,CHANGE SHAFT
920221628
€ 4.50
92049
920491492
ref: 92049
SEAL-OIL
920491492
€ 6.00
92081
920811708
ref: 92081
SPRING,PAWL RETURN
920811708
€ 4.00
92143
921431595
ref: 92143
COLLAR
921431595
€ 6.50
92143A
921431733
ref: 92143A
COLLAR,13.2X19.9X12
921431733
€ 3.00
92144
921441856
ref: 92144
SPRING
921441856
€ 6.50
92145
921451122
ref: 92145
SPRING
921451122
€ 6.50
92151
921511226
ref: 92151
BOLT,6X20
921511226
€ 1.50
92153
921530421
ref: 92153
BOLT,RETURN SPRING
€ 6.50
92153A
921530896
ref: 92153A
BOLT,6X20
921530896
€ 5.00
92160
921601036
ref: 92160
DAMPER,CHANGE PEDAL
921601036
€ 3.50
92210
922101100
ref: 92210
NUT
922101100
€ 1.50
92210A
922101101
ref: 92210A
NUT
922101101
€ 1.50
