RADIATOR

ZX600G1 NINJA ZX6R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP

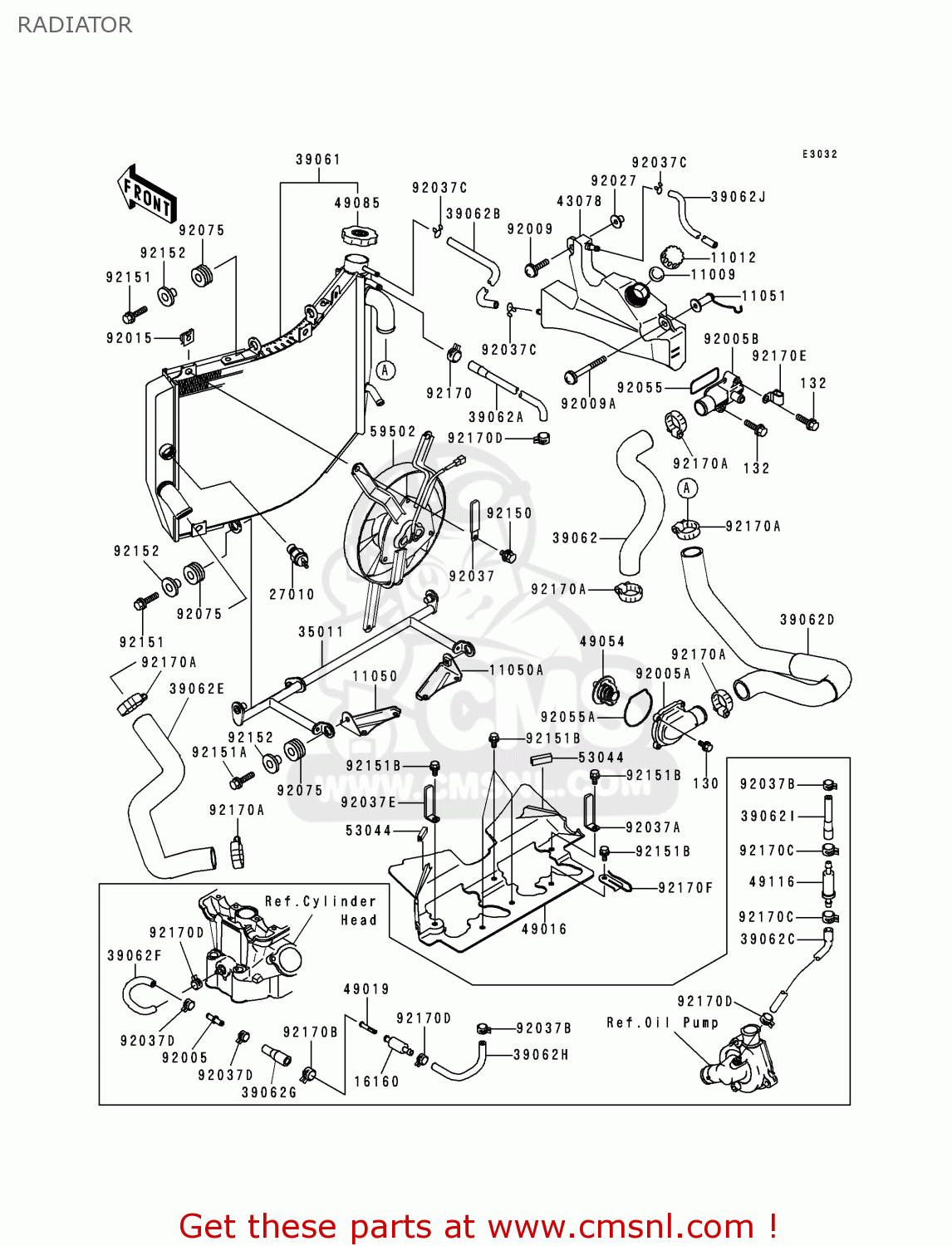

Radiator diagram ZX600G1 NINJA ZX6R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP

RADIATOR ZX600G1 NINJA ZX6R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP
RADIATOR ZX600G1 NINJA ZX6R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP
RADIATOR ZX600G1 NINJA ZX6R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
11050
110501643
ref: 11050
BRACKET
110501643
€ 8.50
11050A
110501644
ref: 11050A
BRACKET
110501644
€ 8.00
11051
110511219
ref: 11051
BRACKET
110511219
€ 14.00
16160
161601151
ref: 16160
ARFGFRITNLUK
BODY,FILTER
161601151
€ 6.50
27010
270101304
ref: 27010
SWITCH,THERMOSTAT
270101304
€ 63.00
35011
350111903
ref: 35011
STAY
€ 94.00
39061
390611265
ref: 39061
RADIATOR-ASSY
€ 432.00
39062
390621633
ref: 39062
HOSE-COOLING,PUMP-CYL
390621633
€ 30.00
39062A
390621742
ref: 39062A
HOSE-COOLING
390621742
€ 7.50
39062B
390621743
ref: 39062B
HOSE-COOLING,RADIATOR
390621743
€ 10.00
39062C
390621746
ref: 39062C
ARFGFRITNLUK
HOSE-COOLING,PUMP-VAL
€ 6.00
39062D
390621750
ref: 39062D
HOSE-COOLING,RADIATOR
390621750
€ 53.50
39062E
390621751
ref: 39062E
HOSE-COOLING,RADIATOR
390621751
€ 35.00
39062F
390621767
ref: 39062F
ARFGFRITNLUK
HOSE-COOLING,HEAD-FIT
€ 4.50
39062G
390621768
ref: 39062G
ARFGFRITNLUK
HOSE-COOLING,FITTING-
€ 4.00
39062H
390621769
ref: 39062H
ARFGFRITNLUK
HOSE-COOLING
€ 3.50
39062I
390621779
ref: 39062I
ARFGFRITNLUK
HOSE-COOLING,CARBURET
€ 4.00
39062J
390621780
ref: 39062J
HOSE-COOLING
€ 14.50
43078
430781162
ref: 43078
RESERVOIR
430781162
€ 54.00
49016
490161200
ref: 49016
COVER-SEAL
490161200
€ 16.00
49019
490191068
ref: 49019
ARFGFRITNLUK
FILTER-FUEL
490191068
€ 4.00
49054
490541067
ref: 49054
THERMOSTAT
490541067
€ 46.00
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
490851067
€ 39.50
49116
491161081
ref: 49116
ARFGFRITNLUK
VALVE-ASSY
491161081
€ 85.00
53044
530441174
ref: 53044
TRIM
530441174
€ 2.50
59502
595021128
ref: 59502
FAN-ASSY
595021128
€ 621.50
92005
920051167
ref: 92005
ARFGFRITNLUK
FITTING
920051167
€ 3.00
92005A
920051275
ref: 92005A
FITTING,THERMOSTAT
920051275
€ 66.50
92005B
920051343
ref: 92005B
FITTING,CYLINDER
€ 25.00
92009
920091465
ref: 92009
SCREW
920091465
€ 2.50
130
130J0514
ref: 130
BOLT-FLANGED
130J0514
€ 2.50
132
132J0630
ref: 132
BOLT-FLANGED-SMALL
132J0630
€ 2.50
92009A
920091829
ref: 92009A
SCREW,6X56
920091829
€ 1.50
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92027
920271651
ref: 92027
COLLAR
920271651
€ 2.50
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371316
ref: 92037A
CLAMP
€ 1.50
92037B
920371461
ref: 92037B
ARFGFRITNLUK
CLAMP,TUBE
920371461
€ 1.00
92037C
92037147
ref: 92037C
CLAMP,CHAIN OILER
92037147
€ 4.50
92037D
920371505
ref: 92037D
ARFGFRITNLUK
CLAMP,TUBE
920371505
€ 3.00
92037E
920371679
ref: 92037E
CLAMP
920371679
€ 3.50
92055
920551402
ref: 92055
RING-O
920551402
€ 5.00
92055A
920551533
ref: 92055A
RING-O,THERMOSTAT CAP
920551533
€ 6.50
92075
920751123
ref: 92075
DAMPER,RUBBER
920751123
€ 3.00
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
92151
921511225
ref: 92151
BOLT,6X25
921511225
€ 1.50
92151A
921511226
ref: 92151A
BOLT,6X20
921511226
€ 1.50
92151B
921511363
ref: 92151B
BOLT,6X12
921511363
€ 1.50
92152
921521074
ref: 92152
COLLAR
921521074
€ 4.00
92170
921701167
ref: 92170
CLAMP
921701167
€ 4.00
92170A
921701284
ref: 92170A
CLAMP,CABLE
921701284
€ 7.50
92170B
921701491
ref: 92170B
ARFGFRITNLUK
CLAMP
921701491
€ 5.00
92170C
921701492
ref: 92170C
ARFGFRITNLUK
CLAMP
921701492
€ 3.00
92170D
921701493
ref: 92170D
EUGRNRSDSP
CLAMP
921701493
€ 3.00
92170D
921701493
ref: 92170D
ARFGFRITNLUK
CLAMP
921701493
€ 3.00
92170E
921701577
ref: 92170E
CLAMP
921701577
€ 3.00
92170F
921701932
ref: 92170F
CLAMP
€ 9.00
