Genuine ZX Kawasaki Parts delivered quickly!


CARBURETOR PARTS

ZX600G1 NINJA ZX6R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP

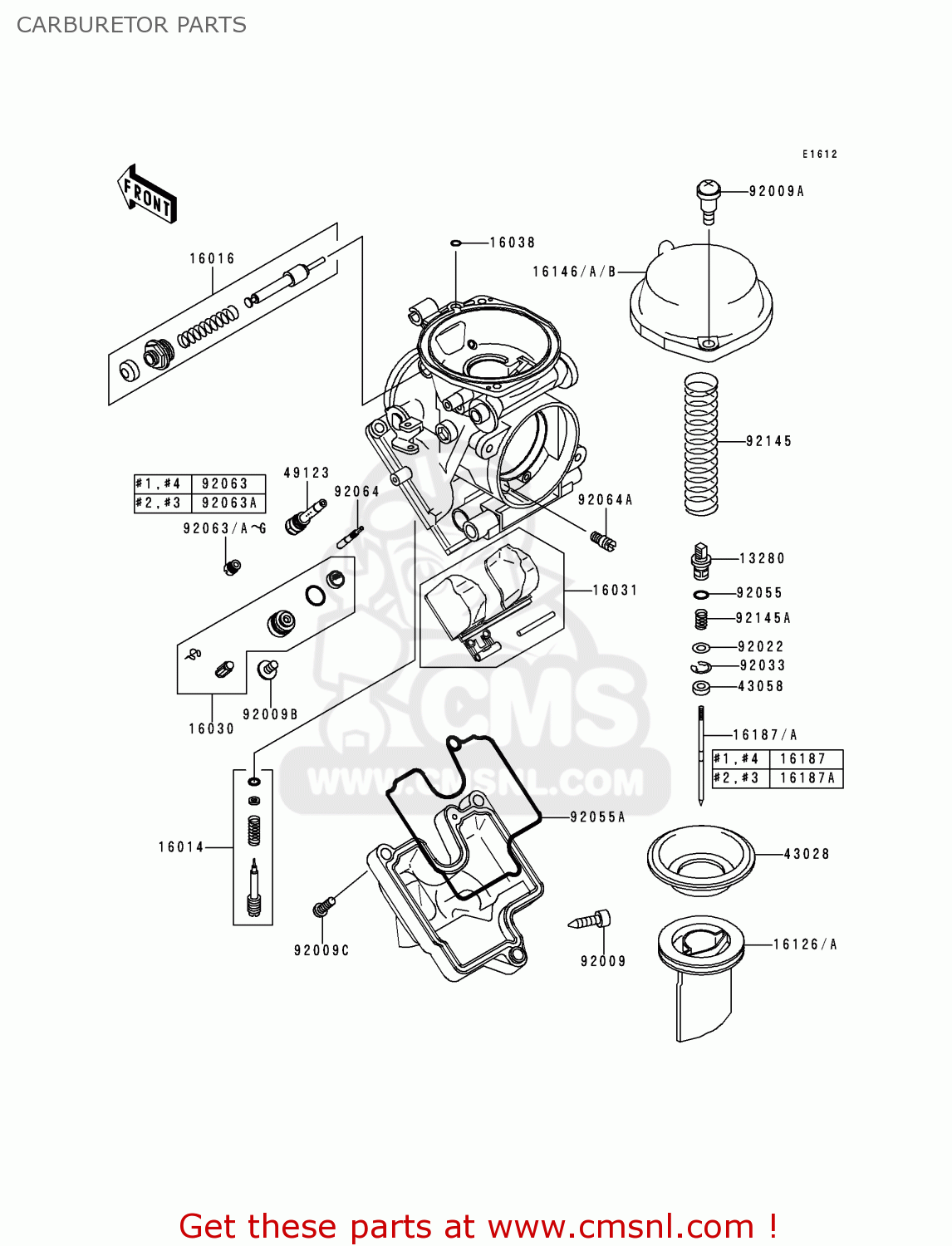

Carburetor parts diagram ZX600G1 NINJA ZX6R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP

CARBURETOR PARTS ZX600G1 NINJA ZX6R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP
CARBURETOR PARTS ZX600G1 NINJA ZX6R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP
CARBURETOR PARTS ZX600G1 NINJA ZX6R 1998 EUROPE UK FR NL AR FG GR IT NR SD SP
prices are in EUR
ref
part #
description
quantity
13280
132801095
ref: 13280
HOLDER
€ 22.00
16014
160141100
ref: 16014
SCREW-PILOT AIR
160141100
€ 18.00
16016
160161107
ref: 16016
PLUNGER,STARTER
160161107
€ 31.50
16030
160301088
ref: 16030
VALVE-FLOAT,#1.5
160301088
€ 41.50
16031
160311096
ref: 16031
FLOAT
€ 42.00
16038
16038022
ref: 16038
GASKET,O-RING
16038022
€ 4.50
16126
161261363
ref: 16126
AREUFGFRGRITNLNRSPUK
VALVE,VACUUM
161261363
€ 55.00
16126A
161261364
ref: 16126A
SD
VALVE,VACUUM
€ 52.00
16146
161461197
ref: 16146
AREUGRITNLNRSDSPUK
COVER-ASSY,MIXING
€ 48.00
16146A
161461199
ref: 16146A
FG
COVER-ASSY,MIXING
161461199
€ 48.00
16146B
161461200
ref: 16146B
FR
COVER-ASSY,MIXING
€ 40.00
16187
161871058
ref: 16187
NEEDLE-JET,5EI1
€ 20.50
16187A
161871059
ref: 16187A
NEEDLE-JET,5EI2
161871059
€ 20.50
43028
430281086
ref: 43028
DIAPHRAGM,VACUUM VALV
430281086
€ 44.00
43058
430581094
ref: 43058
RING
€ 2.50
49123
491231051
ref: 49123
HOLDER-MAIN JET
491231051
€ 22.00
92009
920091826
ref: 92009
SCREW,DRAIN
920091826
€ 6.00
92009A
920091850
ref: 92009A
SCREW,MIXING COVER
920091850
€ 2.50
92009B
920091853
ref: 92009B
SCREW,FLOAT VALVE
€ 3.00
92009C
920091854
ref: 92009C
SCREW,FLOAT CHAMBER
920091854
€ 1.50
92022
920221123
ref: 92022
WASHER,JET NEEDLE
920221123
€ 5.50
92033
920331299
ref: 92033
RING-SNAP
920331299
€ 1.50
92055
920551093
ref: 92055
RING-O,DRAIN PLUG
920551093
€ 4.50
92055A
920551588
ref: 92055A
RING-O,FLOAT CHAMBER
920551588
€ 11.00
92063
920631431
ref: 92063
JET-MAIN,#A137.5
920631431
€ 10.50
92063A
920631432
ref: 92063A
JET-MAIN,#A140
920631432
€ 8.50
92063B
920631433
ref: 92063B
JET-MAIN,#A130
920631433
€ 10.50
92063C
920631434
ref: 92063C
JET-MAIN,#A132.5
920631434
€ 10.50
92063D
920631435
ref: 92063D
JET-MAIN,#A135
920631435
€ 8.00
92063E
920631436
ref: 92063E
JET-MAIN,#A142.5
920631436
€ 8.50
92063F
920631437
ref: 92063F
JET-MAIN,#A145
920631437
€ 9.00
92063G
920631438
ref: 92063G
JET-MAIN,#A147.5
920631438
€ 11.00
92064
920641195
ref: 92064
JET-PILOT,#12.5
920641195
€ 13.00
92064A
920641196
ref: 92064A
JET-PILOT,#A120
€ 9.50
92145
921451182
ref: 92145
SPRING,VACUUM VALVE
921451182
€ 7.00
92145A
921451183
ref: 92145A
SPRING
921451183
€ 1.50
