FRAME FITTINGS

ZX600F3 NINJA ZX6R 1997 USA CALIFORNIA CANADA

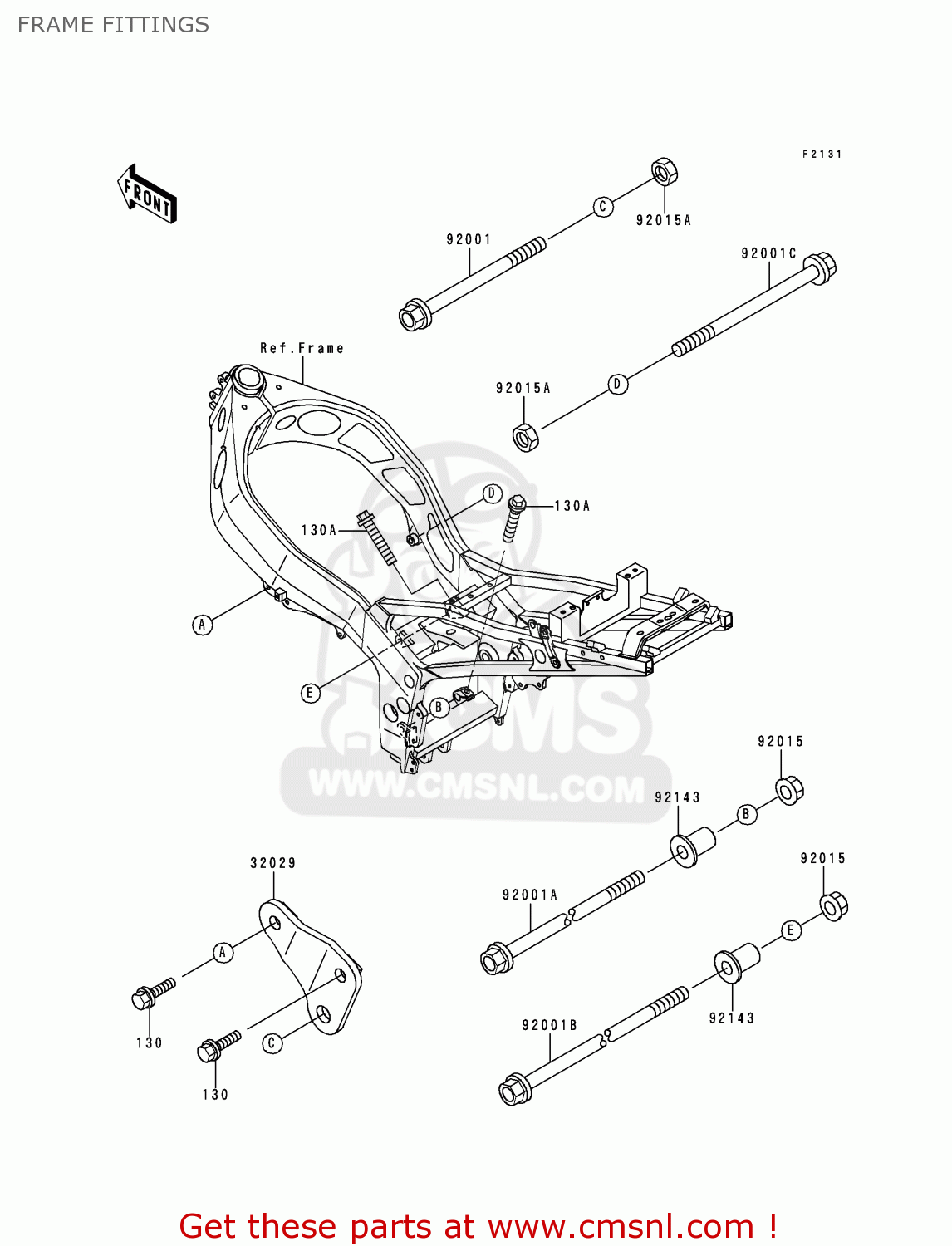

Frame fittings diagram ZX600F3 NINJA ZX6R 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0820
ref: 130

BOLT-FLANGED,8X20

€ 0.50

130A

130J0840
ref: 130A

BOLT-FLANGED,8X40

€ 3.00

32029

320291942
ref: 32029

BRACKET-ENGINE,LH

€ 16.00

92001

920011618
ref: 92001

BOLT,FLANGED,10X70

€ 7.00

92001A

920011621
ref: 92001A

BOLT,FLANGED,10X180

€ 15.00

92001B

920011677
ref: 92001B

BOLT,FLANGED,10X200,B

€ 12.00

92001C

920011709
ref: 92001C

BOLT,FLANGED,10X80

€ 7.00

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92015A

920151189
ref: 92015A

NUT,LOCK,10MM,BLACK

€ 4.50

92143

921431615
ref: 92143

COLLAR,ENGINE MOUNT,L

€ 11.50
