CHASSIS ELECTRICAL EQUIPMENT

ZX600F3 NINJA ZX6R 1997 USA CALIFORNIA CANADA

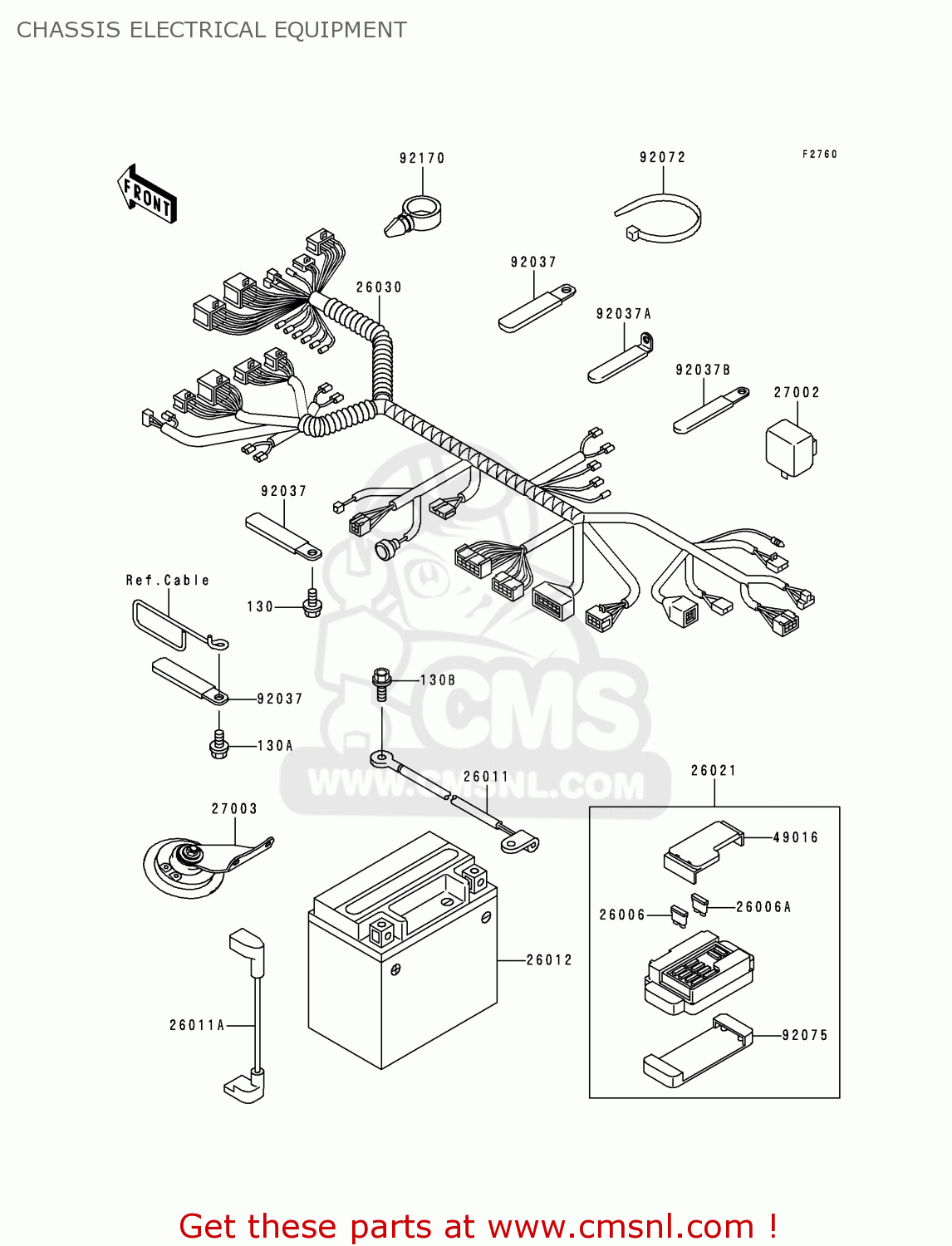

Chassis electrical equipment diagram ZX600F3 NINJA ZX6R 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0608
ref: 130

BOLT-FLANGED,6X8

€ 2.50

130A

130J0612
ref: 130A

BOLT-FLANGED,6X12,BLA

€ 1.50

130B

130V0610
ref: 130B

BOLT-FLANGED,6X10

€ 0.50

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111429
ref: 26011

WIRE-LEAD,BATTERY(-)

€ 16.50

26011A

260111625
ref: 26011A

WIRE-LEAD,BATTERY(+)

€ 19.50

26012

260121281
ref: 26012

BATTERY,YTX12-BS,12V

€ 120.50

26021

260211089
ref: 26021

JUNCTION BOX

€ 126.00

26030

260301311
ref: 26030

HARNESS,MAIN

€ 198.00

27002

270021092
ref: 27002

RELAY-ASSY,SIGNAL LAM

€ 49.50

27003

270031381
ref: 27003

HORN

€ 41.50

49016

490161177
ref: 49016

COVER-SEAL,FUSE

€ 7.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371679
ref: 92037A

CLAMP

€ 3.50

92037B

920371993
ref: 92037B

CLAMP

€ 3.50

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50

92170

921701067
ref: 92170

CLAMP,HOSE

€ 5.00
