Genuine ZX Kawasaki Parts delivered quickly!


IGNITION SWITCH

ZX600F1 NINJA ZX6R 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

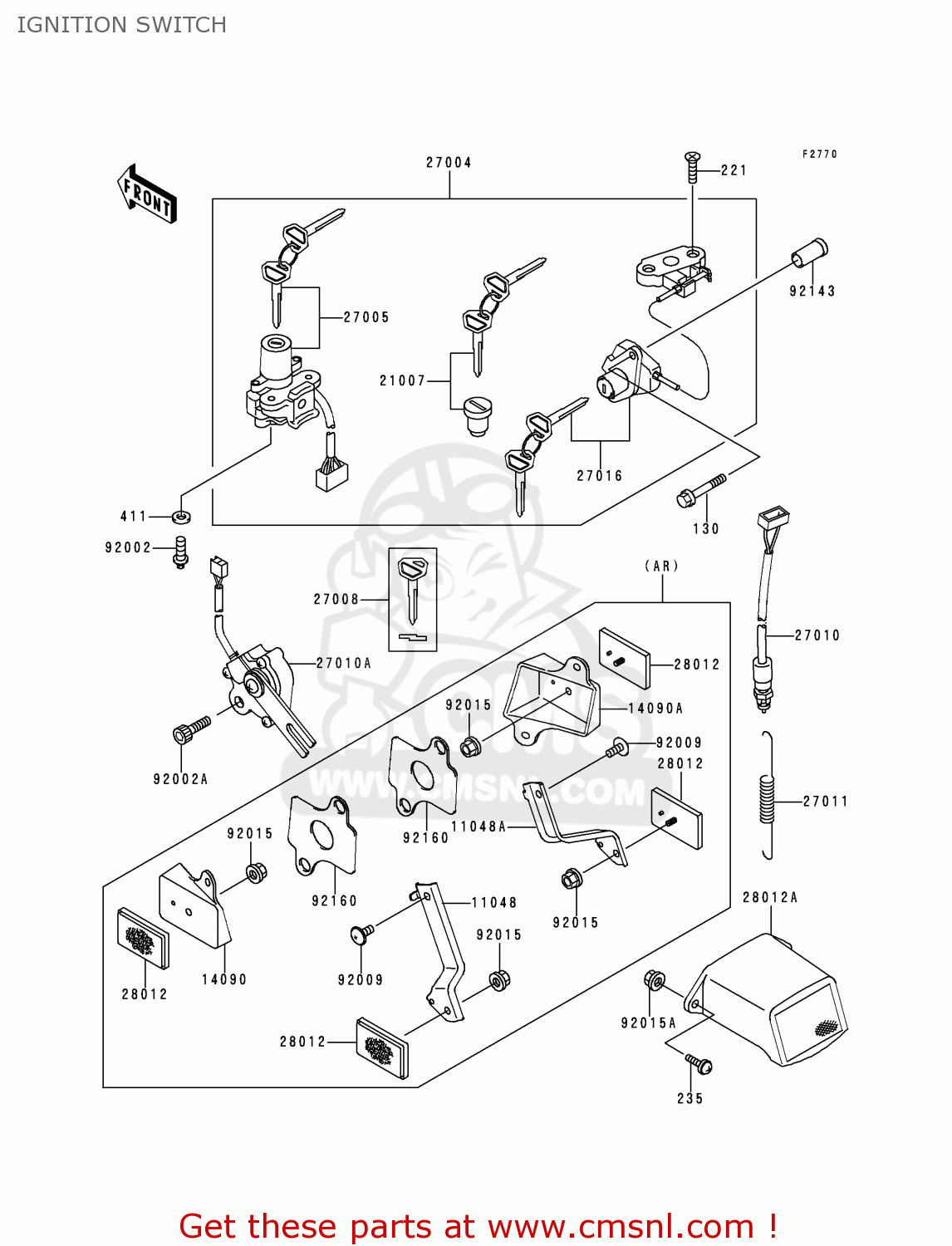

Ignition switch diagram ZX600F1 NINJA ZX6R 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

IGNITION SWITCH ZX600F1 NINJA ZX6R 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
IGNITION SWITCH ZX600F1 NINJA ZX6R 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
IGNITION SWITCH ZX600F1 NINJA ZX6R 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130J0655
ref: 130
BOLT-FLANGED,6X55,BLA
€ 3.00
221
221B0628
ref: 221
SCREW,CNTRSNK,6X28
221B0628
€ 2.50
235
235C0620
ref: 235
SCREW-PAN-WP-CROS
235C0620
€ 1.50
411
411E0600
ref: 411
W-PLAIN-S
411E0600
€ 0.50
11048
110481942
ref: 11048
AR
BRACKET,REFLECTOR,RR,
€ 11.50
11048A
110481943
ref: 11048A
AR
BRACKET,REFLECTOR,RR,
110481943
€ 12.00
14090
140901377
ref: 14090
AR
COVER,REFLECTOR,FR,LH
140901377
€ 11.50
14090A
140901378
ref: 14090A
AR
COVER,REFLECTOR,FR,RH
€ 11.50
21007
210075035
ref: 21007
ROTOR,LOCK,TANK CAP
210075035
€ 42.00
27004
270045473
ref: 27004
SWITCH-ASSY
270045473
€ 438.50
27005
270051180
ref: 27005
SWITCH-ASSY-IGNITION
270051180
€ 318.50
27008
270081170
ref: 27008
KEY-LOCK,BLANK
270081170
€ 12.50
27010
270101093
ref: 27010
SWITCH,BRAKE LAMP
270101093
€ 20.00
27010A
270101344
ref: 27010A
SWITCH,SIDE STAND
270101344
€ 99.50
27011
27011011
ref: 27011
SPRING,BRAKE LAMP SW
27011011
€ 5.50
27016
270165219
ref: 27016
LOCK-ASSY,SEAT
270165219
€ 51.00
28012
280121003
ref: 28012
AR
REFLECTOR,REFLEX
280121003
€ 15.00
28012A
280121066
ref: 28012A
REFLECTOR-REFLEX,RR
280121066
€ 23.00
92002
920021333
ref: 92002
BOLT
920021333
€ 1.50
92002A
920021582
ref: 92002A
BOLT,6X25
920021582
€ 3.00
92009
920091662
ref: 92009
AR
SCREW
920091662
€ 2.50
92015
920151259
ref: 92015
AR
NUT,FLANGED,5MM
920151259
€ 2.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
920151367
€ 0.50
92143
921431764
ref: 92143
COLLAR
€ 5.50
92160
921601486
ref: 92160
AR
DAMPER,REFLECTOR
€ 6.00
