CARBURETOR

ZX600F1 NINJA ZX6R 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

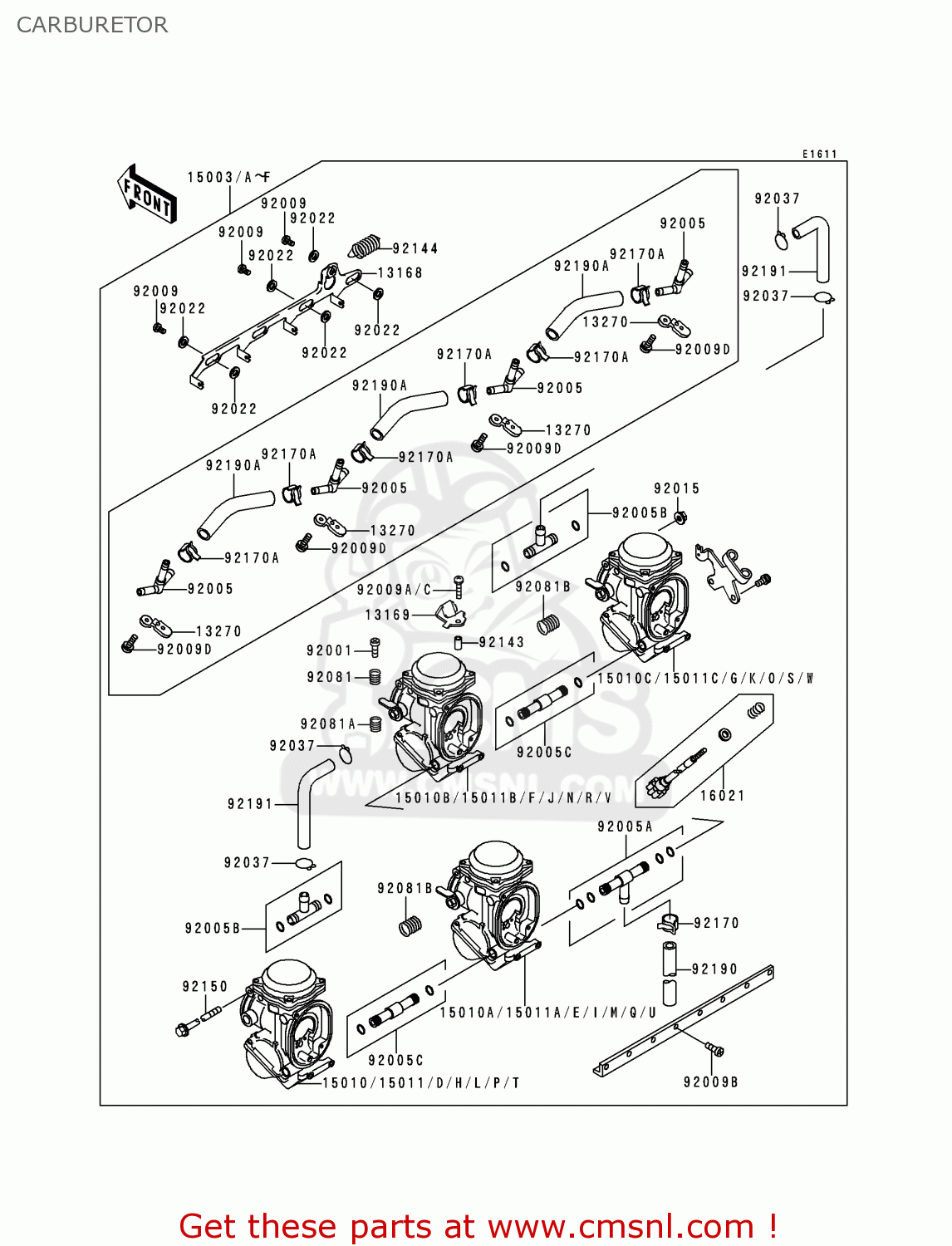

Carburetor diagram ZX600F1 NINJA ZX6R 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

CARBURETOR ZX600F1 NINJA ZX6R 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CARBURETOR ZX600F1 NINJA ZX6R 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CARBURETOR ZX600F1 NINJA ZX6R 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
13168
131681483
ref: 13168
LEVER,STARTER
€ 78.00
13169
131691965
ref: 13169
PLATE,STARTER CABLE
131691965
€ 26.50
13270
132701286
ref: 13270
ARFGFRITNLSTUK
PLATE,FITTING STAY
€ 46.00
15003
150031125
ref: 15003
ST
CARBURETOR-ASSY
€ 1,769.00
15003A
150031216
ref: 15003A
EUGRNRSP
CARBURETOR-ASSY
150031216
€ 1,345.50
15003B
150031219
ref: 15003B
FRITNLUK
CARBURETOR-ASSY
€ 1,769.00
15003C
150031220
ref: 15003C
ARFG
CARBURETOR-ASSY
€ 1,413.00
15003D
150031221
ref: 15003D
SD
CARBURETOR-ASSY
€ 1,413.00
15010
150101973
ref: 15010
ST
CARBURETOR,LH,OUTSIDE
€ 816.00
15010A
150101974
ref: 15010A
ST
CARBURETOR,LH,INSIDE
€ 816.00
15010B
150101975
ref: 15010B
ST
CARBURETOR,RH,INSIDE
€ 816.00
15010C
150101976
ref: 15010C
ST
CARBURETOR,RH,OUTSIDE
€ 558.50
15011
150111069
ref: 15011
EUGRNRSP
CARBURETOR,LH,OUTSIDE
€ 430.50
15011A
150111070
ref: 15011A
EUGRNRSP
CARBURETOR,LH,INSIDE
€ 430.50
15011B
150111071
ref: 15011B
EUGRNRSP
CARBURETOR,RH,INSIDE
€ 430.50
15011C
150111072
ref: 15011C
EUGRNRSP
CARBURETOR,RH,OUTSIDE
€ 430.50
15011D
150111081
ref: 15011D
FRITNLUK
CARBURETOR,LH,OUTSIDE
€ 820.50
15011E
150111082
ref: 15011E
FRITNLUK
CARBURETOR,LH,INSIDE
€ 860.50
15011F
150111083
ref: 15011F
FRITNLUK
CARBURETOR,RH,INSIDE
€ 440.00
15011G
150111084
ref: 15011G
FRITNLUK
CARBURETOR,RH,OUTSIDE
€ 589.00
15011H
150111085
ref: 15011H
ARFG
CARBURETOR,LH,OUTSIDE
€ 430.50
15011I
150111086
ref: 15011I
ARFG
CARBURETOR,LH,INSIDE
€ 430.50
15011J
150111087
ref: 15011J
ARFG
CARBURETOR,RH,INSIDE
€ 430.50
15011K
150111088
ref: 15011K
ARFG
CARBURETOR,RH,OUTSIDE
€ 430.50
15011L
150111089
ref: 15011L
SD
CARBURETOR,LH,OUTSIDE
€ 430.50
15011M
150111090
ref: 15011M
SD
CARBURETOR,LH,INSIDE
€ 430.50
15011N
150111091
ref: 15011N
SD
CARBURETOR,RH,INSIDE
€ 430.50
15011O
150111092
ref: 15011O
SD
CARBURETOR,RH,OUTSIDE
€ 430.50
16021
160211205
ref: 16021
SCREW-THROTTLE STOP
€ 19.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051291
ref: 92005
ARFGFRITNLSTUK
FITTING
920051291
€ 26.50
92005A
920051294
ref: 92005A
FITTING
920051294
€ 22.00
92005B
920051306
ref: 92005B
FITTING
920051306
€ 19.00
92005C
920051312
ref: 92005C
FITTING
€ 8.50
92009
920091262
ref: 92009
SCREW
920091262
€ 4.00
92009A
920091446
ref: 92009A
ST
SCREW,4X18
920091446
€ 4.00
92009B
920091591
ref: 92009B
SCREW,5X14
920091591
€ 3.00
92009C
920091597
ref: 92009C
AREUFGFRGRITNLNRSDSP
SCREW
920091597
€ 4.50
92009D
920091713
ref: 92009D
ARFGFRITNLSTUK
SCREW
920091713
€ 2.00
92015
920151259
ref: 92015
NUT,FLANGED,5MM
920151259
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92037
920371531
ref: 92037
CLAMP,TUBE
920371531
€ 3.50
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081A
920811621
ref: 92081A
ST
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081A
920811621
ref: 92081A
AREUFGFRGRITNLNRSDSP
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92143
921431265
ref: 92143
COLLAR,4X5.2X9.6
921431265
€ 3.00
92144
921441547
ref: 92144
SPRING,STARTER LEVER
€ 12.50
92150
921501211
ref: 92150
BOLT,5X305
921501211
€ 17.50
92170
921701051
ref: 92170
CLAMP,TUBE
921701051
€ 5.50
92170A
921701504
ref: 92170A
ARFGFRITNLSTUK
CLAMP
921701504
€ 3.00
92190
921901410
ref: 92190
TUBE
€ 10.00
92190A
921901530
ref: 92190A
ARFGFRITNLSTUK
TUBE,WATER
€ 7.50
92191
921911013
ref: 92191
TUBE,7X11X10
€ 9.00
