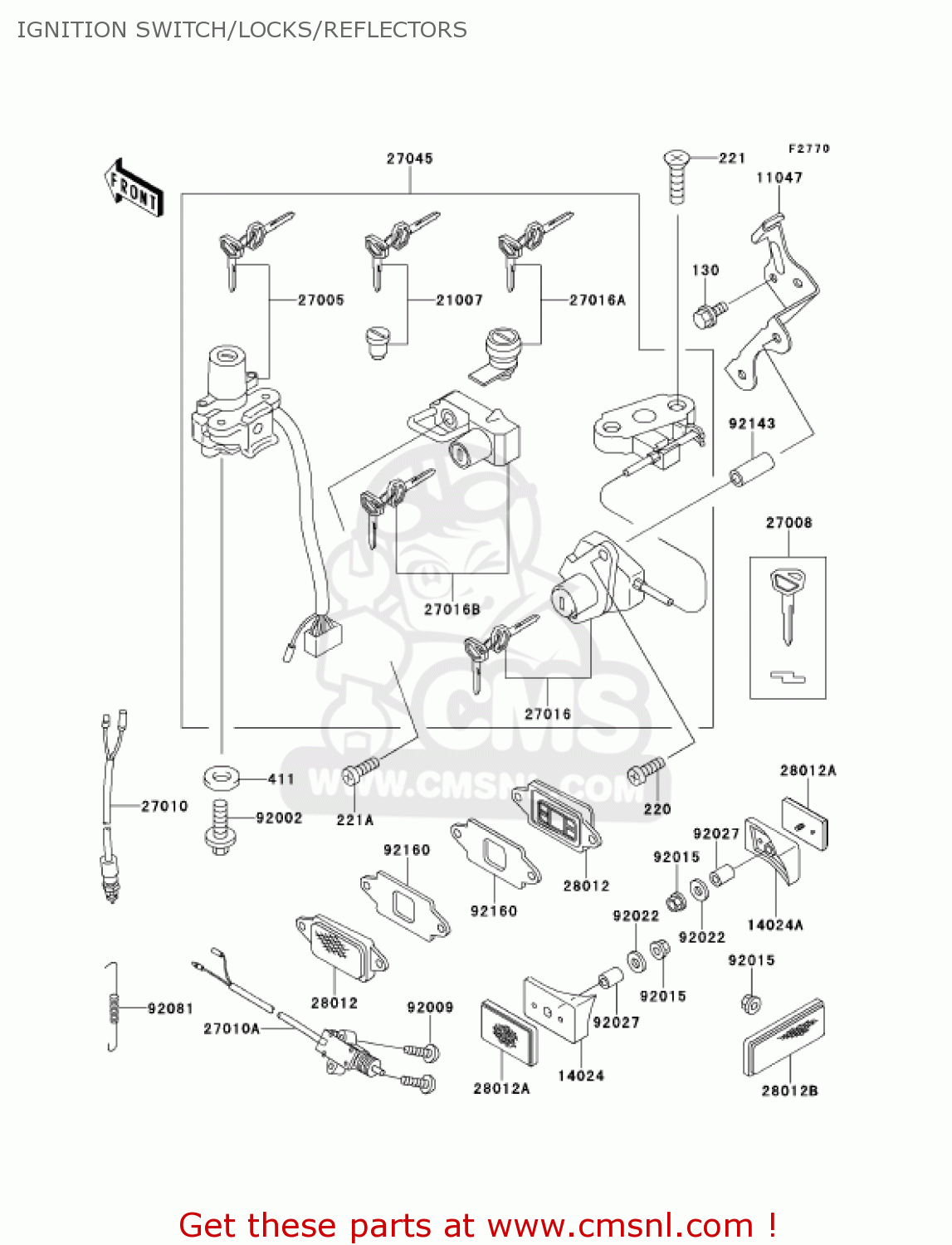

IGNITION SWITCH/LOCKS/REFLECTORS

ref

part #

description

quantity

130

130J0616
ref: 130

BOLT-FLANGED,6X16

€ 1.50

220

220C0630
ref: 220

SCREW-PAN-CROS,6X30,B

€ 1.50

221

221C0620
ref: 221

SCREW-CSK-CROS

€ 2.50

221A

221C0630
ref: 221A

SCREW-CSK-CROS,6X30

€ 1.00

411

411E0600
ref: 411

W-PLAIN-S

€ 0.50

11047

110471885
ref: 11047

BRACKET,SEAT LOCK

€ 34.00

14024

140241940
ref: 14024

REFLECTOR COVER,LH

€ 7.50

14024A

140241941
ref: 14024A

REFLECTOR COVER,RH

€ 7.00

21007

210075035
ref: 21007

ROTOR,LOCK,TANK CAP

€ 42.00

27005

270051213
ref: 27005

SWITCH-ASSY-IGNITION

€ 243.00

27008

270081170
ref: 27008
(OPTION)

KEY-LOCK,BLANK

€ 12.50

27010

270101093
ref: 27010

SWITCH,BRAKE LAMP

€ 20.00

27010A

270101226
ref: 27010A

SWITCH,SIDE STAND

€ 47.50

27016

270165196
ref: 27016

LOCK-ASSY,SEAT

€ 111.00

27016A

270165198
ref: 27016A

LOCK-ASSY,PAD

€ 54.00

27016B

270165207
ref: 27016B

LOCK-ASSY,HELMET

€ 54.00

27045

270455058
ref: 27045

SWITCH ASSEMBLY

€ 298.50

28012

280121068
ref: 28012

REFLECTOR-REFLEX,FR,S

€ 34.00

28012A

280121072
ref: 28012A

REFLECTOR,REAR,REFLEX

€ 13.50

28012B

280121077
ref: 28012B

REFLECTOR-REFLEX

€ 16.00

92002

920021333
ref: 92002

BOLT

€ 1.50

92009

920091492
ref: 92009

SCREW,5X22

€ 2.50

92015

920151259
ref: 92015

NUT,FLANGED,5MM

€ 2.50

92022

92022263
ref: 92022

WASHER,PLAIN,6MM

€ 1.50

92027

920271789
ref: 92027

COLLAR,5X8X14.5

€ 3.00

92081

920811704
ref: 92081

SPRING,BRAKE LAMP SWI

€ 5.00

92143

921431408
ref: 92143

COLLAR,6.5X9.5X17

€ 3.00

92160

921601192
ref: 92160

DAMPER,REFLECTOR

€ 6.00

all assemblies
