REAR WHEEL/CHAIN

ZX600E5 NINJA ZX6 1997 USA CALIFORNIA CANADA

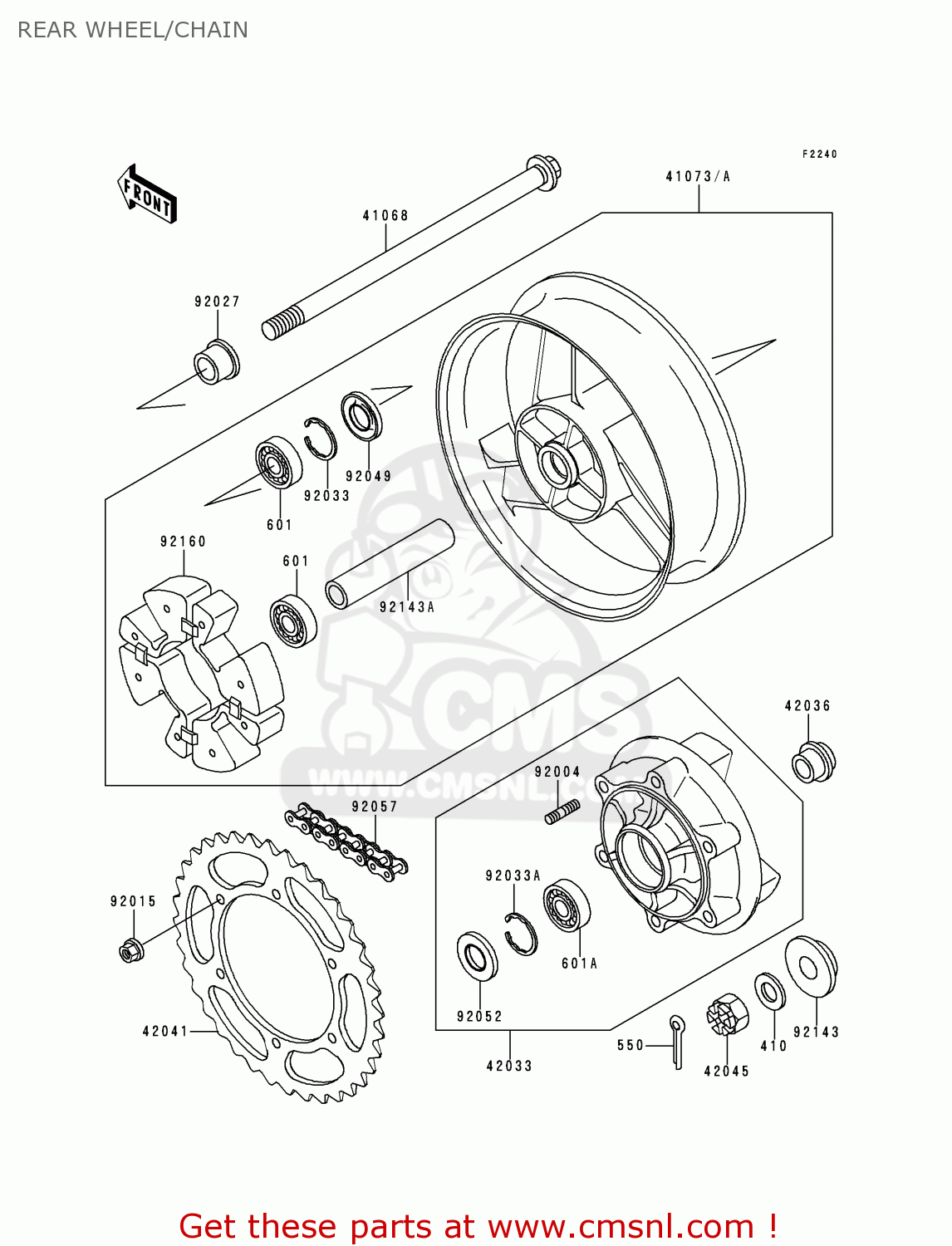

Rear wheel/chain diagram ZX600E5 NINJA ZX6 1997 USA CALIFORNIA CANADA

REAR WHEEL/CHAIN ZX600E5 NINJA ZX6 1997 USA CALIFORNIA CANADA

REAR WHEEL/CHAIN ZX600E5 NINJA ZX6 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

410

410D1800
ref: 410

W-PLAIN-S,18MM

€ 1.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6204UU
ref: 601

BEARING-BALL,6204UUC3

€ 28.00

601A

601B6205G
ref: 601A

BEARING BALL

€ 14.00

41068

410681350
ref: 41068

AXLE,RR

€ 139.00

41073A

410731521GE
ref: 41073A

WHEEL-ASSY,RR,G.GRAY

€ 780.00

42033

420331163
ref: 42033

COUPLING-ASSY,RR HUB

€ 283.00

42036

420361251
ref: 42036

SLEEVE,RR HUB,L=23

€ 18.00

42041

420411362
ref: 42041

SPROCKET-HUB

€ 47.00

42045

42045018
ref: 42045

NUT,18MM

€ 7.50

92004

920041151
ref: 92004

STUD,10X19.5

€ 6.50

92015

920151720
ref: 92015

NUT,10MM

€ 3.50

92027

920271902
ref: 92027

COLLAR,RR AXLE,L=21.5

€ 17.00

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92033A

920331043
ref: 92033A

RING,SNAP,56.2M/M

€ 6.00

92049

920491056
ref: 92049

OIL SEAL,BJN28475

€ 8.50

92052

92052006
ref: 92052

OIL SEAL WTC35527

€ 6.50

92057

920571386
ref: 92057

CHAIN

€ 215.00

92143

921431302
ref: 92143

COLLAR,RR AXLE,L=16

€ 28.50

92143A

921431303
ref: 92143A

COLLAR,RR HUB,L=133

€ 27.50

92160

921601399
ref: 92160

DAMPER,SHOCK,RR HUB

€ 57.00
