FUEL EVAPORATIVE SYSTEM

ZX600E5 NINJA ZX6 1997 USA CALIFORNIA CANADA

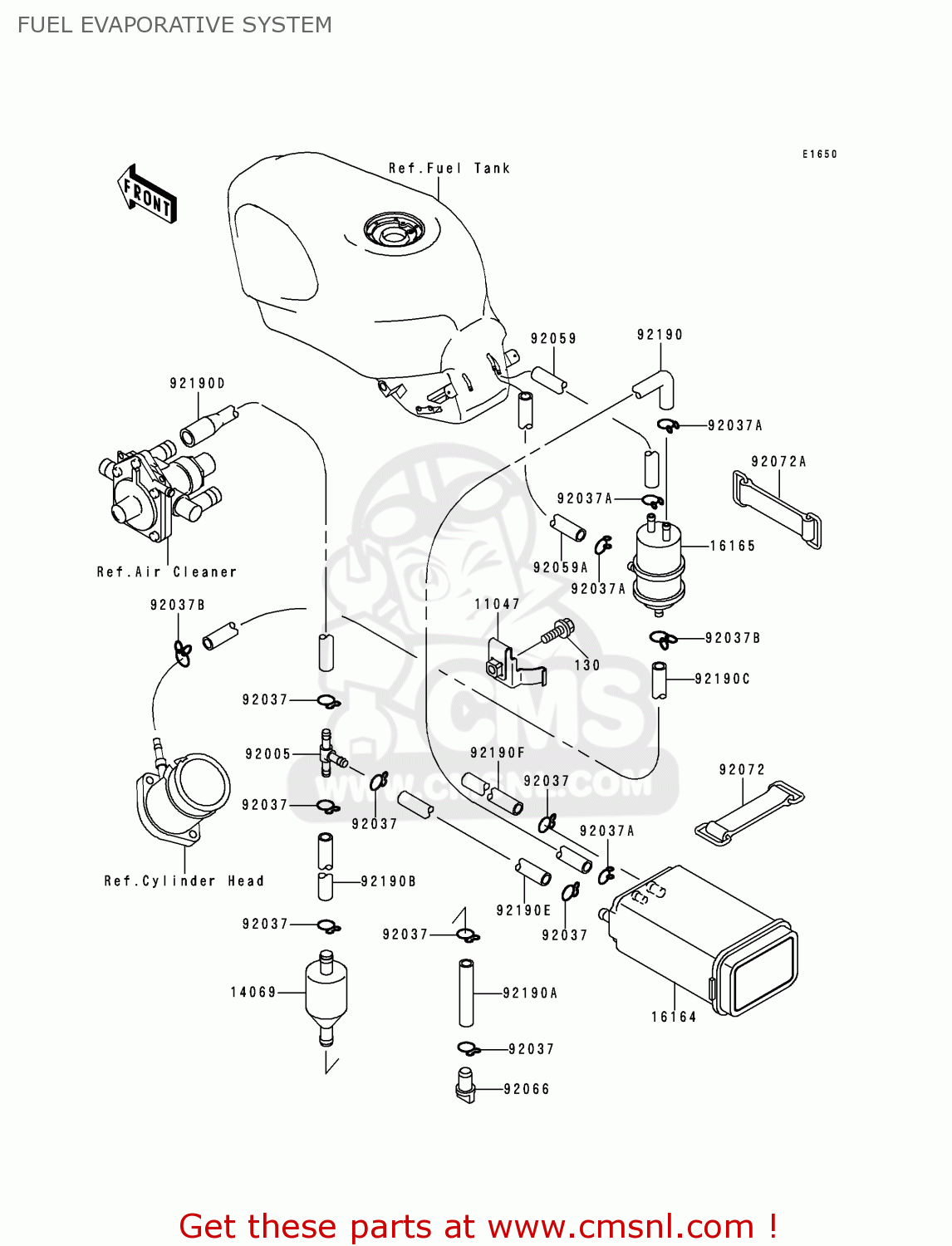

Fuel evaporative system diagram ZX600E5 NINJA ZX6 1997 USA CALIFORNIA CANADA

FUEL EVAPORATIVE SYSTEM ZX600E5 NINJA ZX6 1997 USA CALIFORNIA CANADA

FUEL EVAPORATIVE SYSTEM ZX600E5 NINJA ZX6 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0612
ref: 130
CA

BOLT-FLANGED,6X12,BLA

€ 1.50

11047

110471990
ref: 11047
CA

CANISTER BRACKET

€ 4.00

14069

140691051
ref: 14069
CA

BREATHER

€ 6.50

16164

161641052
ref: 16164
CA

CANISTER

€ 77.00

16165

161651001
ref: 16165
CA

SEPARATOR

€ 69.50

92005

920051119
ref: 92005
CA

FITTING,T-TYPE

€ 17.50

92037

920371104
ref: 92037
CA

CLAMP,HOSE

€ 1.00

92037A

92037147
ref: 92037A
CA

CLAMP,CHAIN OILER

€ 4.50

92037B

920371712
ref: 92037B
CA

CLAMP

€ 3.00

92059

920591496
ref: 92059
CA

TUBE,5X10X170,BLUE

€ 13.00

92059A

920591497
ref: 92059A
CA

TUBE,5X10X230,RED

€ 13.00

92066

920661211
ref: 92066
CA

PLUG

€ 5.50

92072

92072006
ref: 92072
CA

BAND,L=142.1

€ 8.00

92072A

92072066
ref: 92072A
CA

BAND,L=50

€ 11.00

92190

921901099
ref: 92190
CA

TUBE,5X10X750,BLUE

€ 17.00

92190A

921901200
ref: 92190A
CA

TUBE,7X12X45

€ 8.50

92190B

921901201
ref: 92190B
CA

TUBE,7X12X160

€ 8.50

92190C

921901440
ref: 92190C
CA

TUBE,4X9X651,WHITE

€ 19.50

92190D

921901441
ref: 92190D
CA

TUBE,L=569,YELLOW

€ 17.50

92190E

921901442
ref: 92190E
CA

TUBE,7X12X700,YELLOW

€ 20.50

92190F

921901443
ref: 92190F
CA

TUBE,7X12X1250 GREEN

€ 28.00
