RADIATOR

ZX600E4 NINJA ZX6 1996 USA CALIFORNIA CANADA

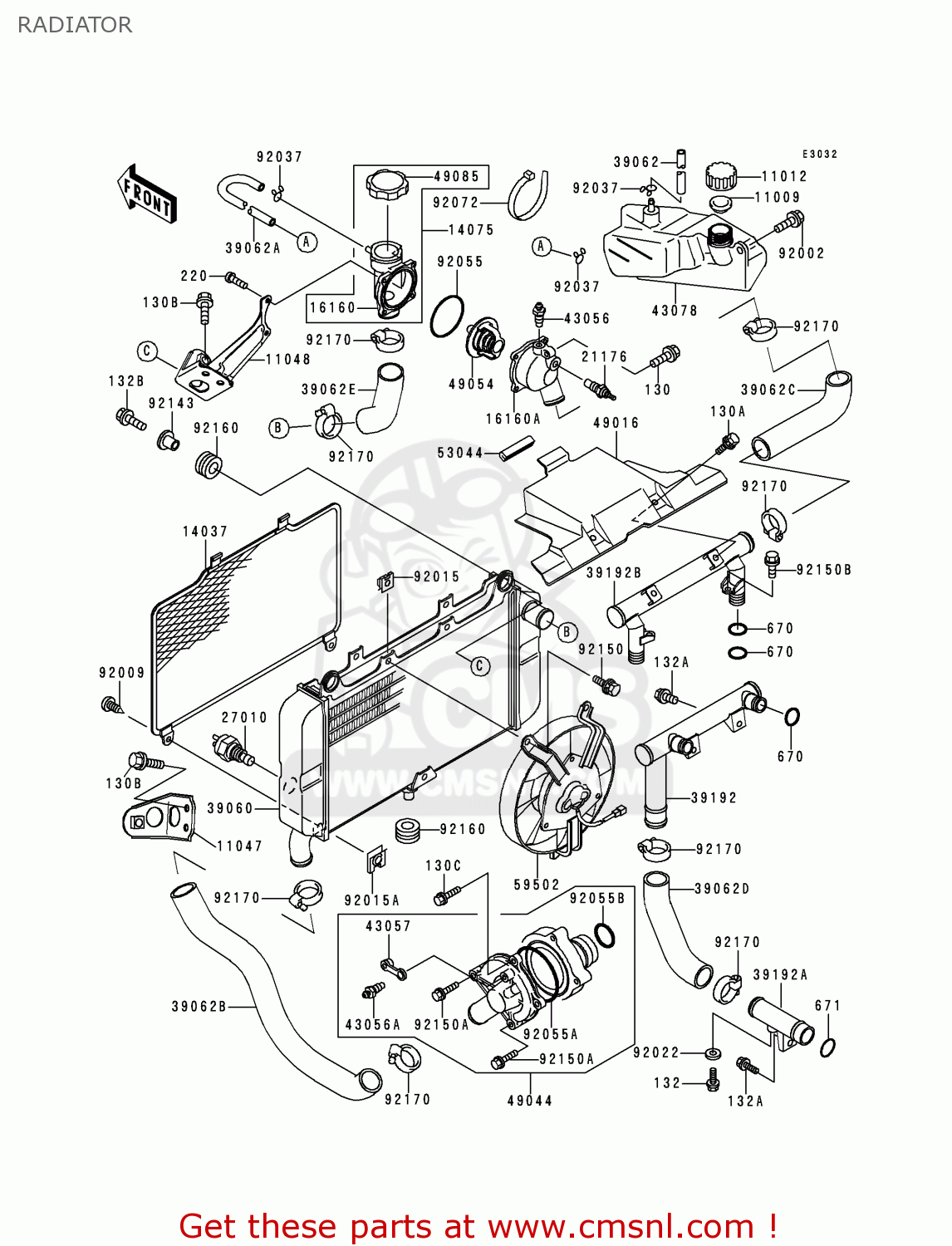

Radiator diagram ZX600E4 NINJA ZX6 1996 USA CALIFORNIA CANADA

RADIATOR ZX600E4 NINJA ZX6 1996 USA CALIFORNIA CANADA
RADIATOR ZX600E4 NINJA ZX6 1996 USA CALIFORNIA CANADA
RADIATOR ZX600E4 NINJA ZX6 1996 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
11047
110471925
ref: 11047
BRACKET,RADIATOR,UPP,
110471925
€ 9.50
11048
110481269
ref: 11048
BRACKET,THERMOSTAT BO
€ 16.50
14037
140371171
ref: 14037
SCREEN,RADIATOR
€ 69.50
14075
140751068
ref: 14075
CAP-ASSY
140751068
€ 134.00
16160
161601116
ref: 16160
BODY,THERMOSTAT,UPP
161601116
€ 134.00
16160A
161601117
ref: 16160A
BODY,THERMOSTAT
161601117
€ 59.00
21176
211761054
ref: 21176
SENSOR,WATER
211761054
€ 49.50
27010
270101202
ref: 27010
SWITCH,FAN
270101202
€ 74.00
39060
390601115
ref: 39060
RADIATOR
€ 725.50
39062
390621075
ref: 39062
HOSE-COOLING
€ 17.50
39062A
390621285
ref: 39062A
HOSE COOLING
€ 18.00
39062B
390621526
ref: 39062B
HOSE-COOLING,RADIATOR
390621526
€ 50.00
39062C
390621528
ref: 39062C
HOSE-COOLING,HEAD-THE
390621528
€ 24.00
39062D
390621546
ref: 39062D
HOSE-COOLING,PUMP-CYL
390621546
€ 30.00
39062E
390621547
ref: 39062E
HOSE-COOLING,THERMO-R
€ 20.00
39192
391921033
ref: 39192
PIPE-WATER
391921033
€ 110.50
39192A
391921034
ref: 39192A
PIPE-WATER
391921034
€ 42.00
39192B
391921039
ref: 39192B
PIPE-WATER
391921039
€ 95.50
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43056A
430561051
ref: 43056A
BREATHER-BRAKE
430561051
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
430571001
€ 3.00
43078
430781135
ref: 43078
RESERVOIR
430781135
€ 46.50
49016
490161161
ref: 49016
COVER-SEAL,HEAT
€ 23.00
49044
490441067
ref: 49044
PUMP-WATER
€ 275.50
49054
490541051
ref: 49054
THERMOSTAT
490541051
€ 44.50
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
490851067
€ 39.50
53044
530441174
ref: 53044
TRIM
530441174
€ 2.50
59502
595021094
ref: 59502
FAN-ASSY
595021094
€ 621.50
92002
920021720
ref: 92002
BOLT,6X16
920021720
€ 2.50
92009
920091436
ref: 92009
SCREW
920091436
€ 2.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151758
ref: 92015A
NUT
920151758
€ 4.50
92022
92022304
ref: 92022
WASHER,PLAIN
92022304
€ 2.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92055A
920551423
ref: 92055A
RING-O,WATER PUMP INS
920551423
€ 6.00
92055B
920551424
ref: 92055B
RING-O,33.2X2.4
920551424
€ 4.00
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
130
130G0612
ref: 130
BOLT,FLANGE,6X12
130G0612
€ 0.50
130A
130H0612
ref: 130A
BOLT-FLANGED,6X12
130H0612
€ 0.50
130B
130J0618
ref: 130B
BOLT-FLANGED,6X18
130J0618
€ 1.50
130C
130Y0640
ref: 130C
BOLT-FLANGED
€ 3.00
132
132J0610
ref: 132
BOLT-FLANGED-SMALL,6X
132J0610
€ 1.50
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132B
132J0830
ref: 132B
BOLT-FLANGED-SMALL
132J0830
€ 2.50
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
670
670B2016
ref: 670
O RING,16MM
670B2016
€ 1.00
671
671B2525
ref: 671
O RING,25MM
671B2525
€ 3.00
92143
921431450
ref: 92143
COLLAR
921431450
€ 6.50
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
92150A
921501379
ref: 92150A
BOLT
921501379
€ 3.00
92150B
921501841
ref: 92150B
BOLT,6X12
€ 3.50
92160
921601007
ref: 92160
DAMPER
921601007
€ 3.50
92170
921701284
ref: 92170
CLAMP,CABLE
921701284
€ 7.50
