BRAKE PEDAL/TORQUE LINK

ZX600E4 NINJA ZX6 1996 USA CALIFORNIA CANADA

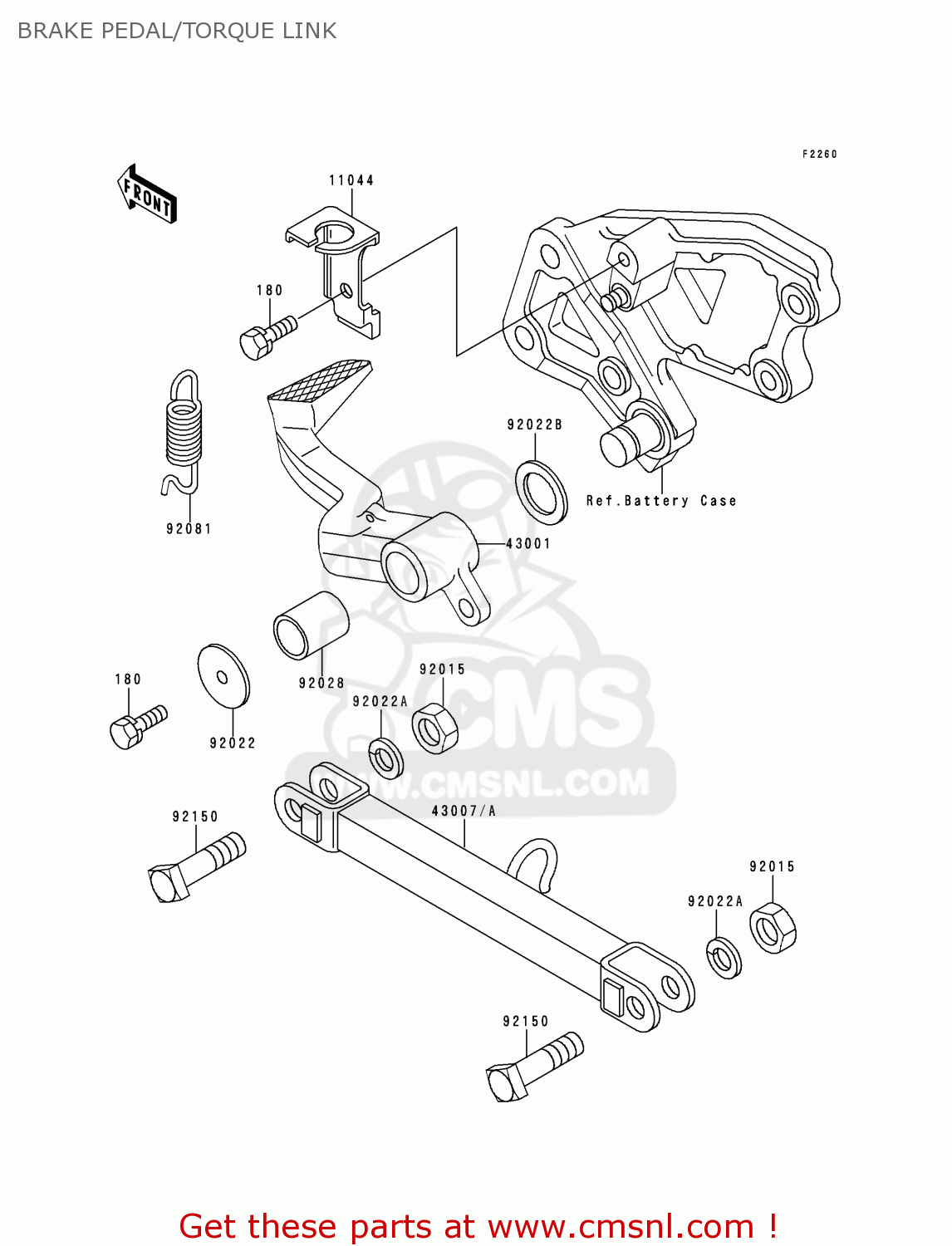

Brake pedal/torque link diagram ZX600E4 NINJA ZX6 1996 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

180

180H0614
ref: 180

BOLT-UPSET-WS

€ 1.00

11044

110441107
ref: 11044

BRACKET,RR BRAKE SWIT

€ 6.50

43001

430011224
ref: 43001

LEVER-BRAKE,PEDAL

€ 88.50

43007

430071170TX
ref: 43007
CN

ROD-TORQUE,SILVER NO.

€ 65.50

43007A

430071170VZ
ref: 43007A
CAUS

TORQUE ROD,SILVER #35

€ 35.50

92015

920151962
ref: 92015

NUT

€ 2.00

92022

920221282
ref: 92022

WASHER,7X28X1.6

€ 3.00

92022A

920221540
ref: 92022A

WASHER,SPRING,10MM

€ 2.50

92022B

92022326
ref: 92022B

WASHER,15.3X24X1

€ 2.50

92028

920281282
ref: 92028

BUSHING,BRAKE PEDAL

€ 9.50

92081

920811833
ref: 92081

SPRING,BRAKE PEDAL

€ 7.00

92150

921501901
ref: 92150

BOLT

€ 4.50
