CARBURETOR PARTS

ZX600E2 ZZR600 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST

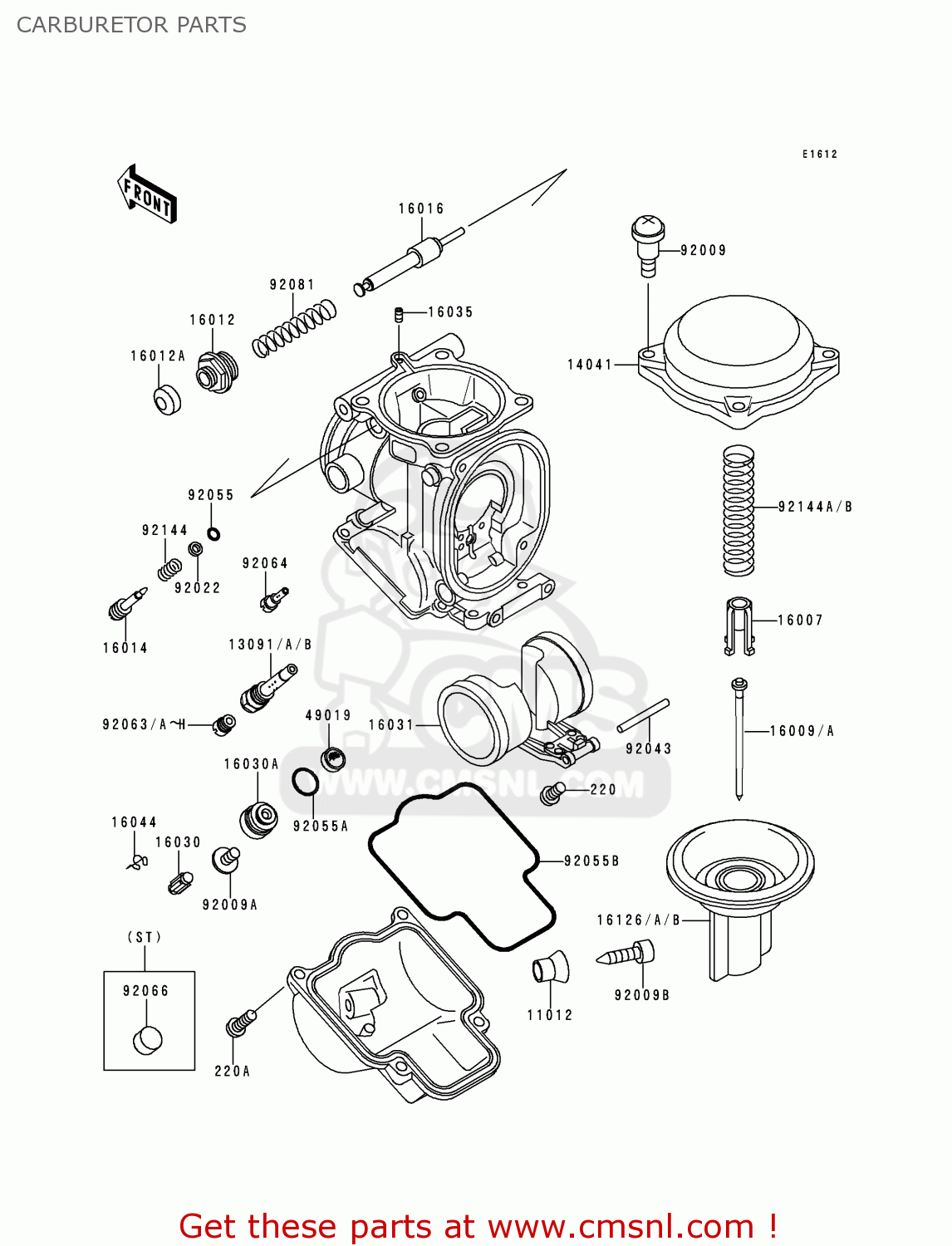

Carburetor parts diagram ZX600E2 ZZR600 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST

CARBURETOR PARTS ZX600E2 ZZR600 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CARBURETOR PARTS ZX600E2 ZZR600 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CARBURETOR PARTS ZX600E2 ZZR600 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11012
110121675
ref: 11012
CAP,DRAIN SCREW
110121675
€ 6.00
13091
130911847
ref: 13091
SD
HOLDER,NEEDLE JET
130911847
€ 19.00
13091A
130911855
ref: 13091A
ST
HOLDER,NEEDLE JET
€ 16.50
13091B
130911859
ref: 13091B
AREUFGFRGRITNLNRSPUK
HOLDER,NEEDLE JET
130911859
€ 21.00
14041
140411091
ref: 14041
CAP-CHAMBER,MIXING
140411091
€ 46.00
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091795
ref: 16009
SDST
NEEDLE-JET,N23K
160091795
€ 24.00
16009A
160091798
ref: 16009A
AREUFGFRGRITNLNRSPUK
NEEDLE-JET,N1VC
160091798
€ 23.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
160121052
€ 10.00
16014
160141064
ref: 16014
SCREW-PILOT AIR
160141064
€ 17.00
16016
160161061
ref: 16016
PLUNGER,STARTER
160161061
€ 30.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16030A
160301072
ref: 16030A
SEAT-VALVE,FLOAT
160301072
€ 40.50
16031
160311070
ref: 16031
FLOAT
160311070
€ 40.50
16035
160351055
ref: 16035
JET-AIR,LEAK
160351055
€ 10.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
16126
161261253
ref: 16126
AREUFGFRGRITNLNRSPUK
VALVE,VACUUM
161261253
€ 152.00
16126A
161261255
ref: 16126A
SD
VALVE,VACUUM
€ 128.50
16126B
161261276
ref: 16126B
ST
VALVE,VACUUM
€ 128.50
49019
490193707
ref: 49019
FILTER-FUEL,STRAINER
490193707
€ 7.00
92009
920091549
ref: 92009
SCREW,4X4.4
920091549
€ 3.00
92009A
920091550
ref: 92009A
SCREW,4X8
920091550
€ 2.50
92009B
920091551
ref: 92009B
SCREW,DRAIN
920091551
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551425
ref: 92055A
RING-O,VALVE SEAT
920551425
€ 4.50
92055B
920551426
ref: 92055B
RING-O,FLOAT CHAMBER
920551426
€ 13.00
92063
920631013
ref: 92063
ARST
MAIN JET,#140
920631013
€ 9.00
92063A
920631013
ref: 92063A
EUFGFRGRITNLNRSDSPUK
MAIN JET,#140
920631013
€ 9.00
220
220D0408
ref: 220
SCREW-PAN-CROS
220D0408
€ 0.50
220A
220D0414
ref: 220A
SCREW-PAN-CROS
220D0414
€ 2.00
92063B
920631014
ref: 92063B
EUFGFRGRITNLNRSDSPUK
MAIN JET,#135
920631014
€ 9.50
92063C
920631014
ref: 92063C
ARST
MAIN JET,#135
920631014
€ 9.50
92063D
920631015
ref: 92063D
MAIN JET,#138
920631015
€ 9.50
92063E
920631016
ref: 92063E
ARST
MAIN JET,#142
920631016
€ 9.00
92063F
920631017
ref: 92063F
ARST
MAIN JET,#145
920631017
€ 9.00
92063G
920631075
ref: 92063G
EUFGFRGRITNLNRSDSPUK
MAIN JET,2ND #130
920631075
€ 9.50
92063H
920631076
ref: 92063H
EUFGFRGRITNLNRSDSPUK
JET-MAIN,#132
920631076
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
920641101
€ 11.50
92066
920661051
ref: 92066
ST
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811761
ref: 92081
SPRING,STARTER PLUNGE
920811761
€ 6.00
92144
921441349
ref: 92144
SPRING,PILOT AIR SCRE
921441349
€ 6.00
92144A
921441538
ref: 92144A
SDST
SPRING,VACUUM VALVE
921441538
€ 15.50
92144B
921441764
ref: 92144B
AREUFGFRGRITNLNRSPUK
SPRING,VACUUM VALVE
921441764
€ 10.00
