CARBURETOR(1/4)

ZX600E2 ZZR600 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST

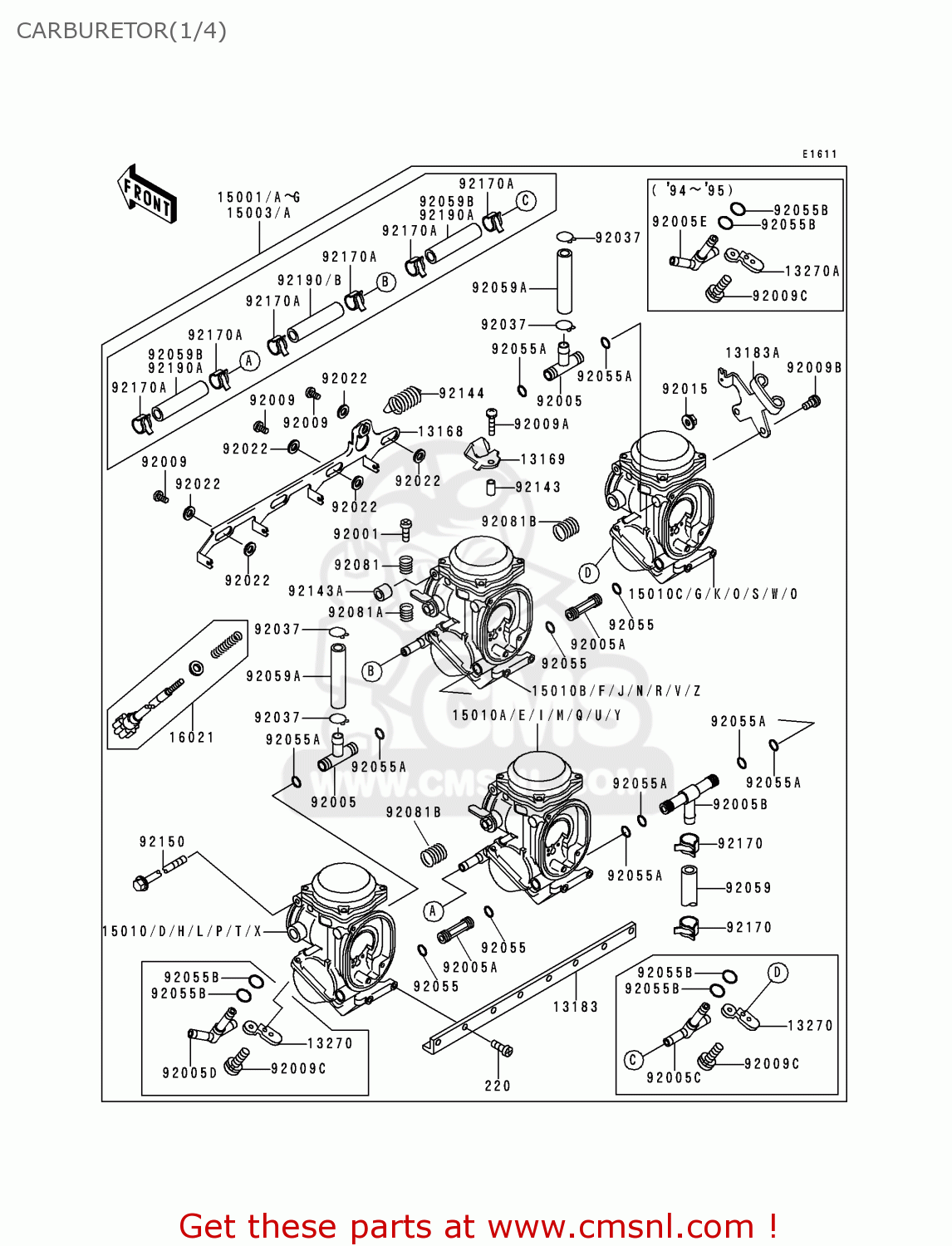

Carburetor(1/4) diagram ZX600E2 ZZR600 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST

CARBURETOR(1/4) ZX600E2 ZZR600 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CARBURETOR(1/4) ZX600E2 ZZR600 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CARBURETOR(1/4) ZX600E2 ZZR600 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
13168
131681462
ref: 13168
LEVER,STARTER
€ 87.00
13169
131691965
ref: 13169
PLATE,STARTER CABLE
131691965
€ 26.50
13183
131831608
ref: 13183
PLATE,CARBURETOR STAY
€ 61.50
13183A
131831610
ref: 13183A
PLATE,THROTTLE CABLE
131831610
€ 56.00
13270A
132701118
ref: 13270A
ARFGFRITNLSTUK
PLATE,FITTING STAY
132701118
€ 4.00
15001
150011821
ref: 15001
EUGRNRSP
CARBURETOR-ASSY
€ 2,313.00
15001C
150011868
ref: 15001C
SD
CARBURETOR-ASSY
€ 2,313.00
15001E
150011996
ref: 15001E
AR
CARBURETOR-ASSY
€ 1,315.50
15001F
150011997
ref: 15001F
FGFRITNLUK
CARBURETOR-ASSY
€ 1,562.50
15001G
150011998
ref: 15001G
ST
CARBURETOR-ASSY
€ 1,496.50
15010
150101549
ref: 15010
EUGRNRSP
CARBURETOR,LH,OUTSIDE
€ 705.00
15010A
150101550
ref: 15010A
EUGRNRSP
CARBURETOR,LH,INSIDE
€ 705.00
15010B
150101551
ref: 15010B
EUGRNRSP
CARBURETOR,RH,INSIDE
€ 705.00
15010C
150101552
ref: 15010C
EUGRNRSP
CARBURETOR,RH,OUTSIDE
€ 705.00
15010D
150101553
ref: 15010D
FGFRITNLUK
CARBURETOR,LH,OUTSIDE
€ 783.00
15010E
150101554
ref: 15010E
FGFRITNLUK
CARBURETOR,LH,INSIDE
€ 501.50
15010F
150101555
ref: 15010F
FGFRITNLUK
CARBURETOR,RH,INSIDE
€ 783.00
15010G
150101556
ref: 15010G
FGFRITNLUK
CARBURETOR,RH,OUTSIDE
€ 783.00
15010L
150101565
ref: 15010L
SD
CARBURETOR,LH,OUTSIDE
€ 750.00
15010M
150101566
ref: 15010M
SD
CARBURETOR,LH,INSIDE
€ 750.00
15010N
150101567
ref: 15010N
SD
CARBURETOR,RH,INSIDE
€ 750.00
15010O
150101568
ref: 15010O
SD
CARBURETOR,RH,OUTSIDE
€ 750.00
15010T
150101624
ref: 15010T
AR
CARBURETOR,LH,OUTSIDE
€ 422.50
15010U
150101625
ref: 15010U
AR
CARBURETOR,LH,INSIDE
€ 422.50
15010V
150101626
ref: 15010V
AR
CARBURETOR,RH,INSIDE
€ 422.50
15010W
150101627
ref: 15010W
AR
CARBURETOR,RH,OUTSIDE
€ 422.50
15010X
150101628
ref: 15010X
ST
CARBURETOR,LH,OUTSIDE
€ 480.00
15010Y
150101629
ref: 15010Y
ST
CARBURETOR,LH,INSIDE
€ 480.00
15010Z
150101630
ref: 15010Z
ST
CARBURETOR,RH,INSIDE
€ 480.00
150100
150101631
ref: 150100
ST
CARBURETOR,RH,OUTSIDE
€ 480.00
16021
160211160
ref: 16021
SCREW-THROTTLE STOP
160211160
€ 37.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051125
ref: 92005
FITTING,T-TYPE
920051125
€ 18.00
92005A
920051157
ref: 92005A
FITTING
€ 25.00
92005B
920051214
ref: 92005B
FITTING,T-TYPE
920051214
€ 19.00
92005E
920051257
ref: 92005E
ARFGFRITNLSTUK
FITTING
€ 18.50
92009
920091262
ref: 92009
SCREW
920091262
€ 4.00
92009A
920091446
ref: 92009A
SCREW,4X18
920091446
€ 4.00
92009B
920091597
ref: 92009B
SCREW
920091597
€ 4.50
92009C
920091713
ref: 92009C
ARFGFRITNLSTUK
SCREW
920091713
€ 2.00
92015
920151259
ref: 92015
NUT,FLANGED,5MM
920151259
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92037
920371531
ref: 92037
CLAMP,TUBE
920371531
€ 3.50
92055
920551004
ref: 92055
O RING
920551004
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
920551223
€ 3.50
92055B
920551427
ref: 92055B
ARFGFRITNLSTUK
RING-O,4.5X1.5
920551427
€ 3.00
92059
920591487
ref: 92059
TUBE,7.3X12.5X240
€ 25.00
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
92059A
920591738
ref: 92059A
TUBE,7X11X45
€ 17.00
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92143
921431265
ref: 92143
COLLAR,4X5.2X9.6
921431265
€ 3.00
92143A
921431438
ref: 92143A
COLLAR
921431438
€ 6.50
92144
921441540
ref: 92144
SPRING,STATER LEVER
€ 13.00
92150
921501416
ref: 92150
BOLT
921501416
€ 22.00
92170
921701051
ref: 92170
CLAMP,TUBE
921701051
€ 5.50
92170A
921701054
ref: 92170A
ARFGFRITNLSTUK
CLAMP,TUBE
921701054
€ 5.00
92190A
921901530
ref: 92190A
ARFGFRITNLSTUK
TUBE,WATER
€ 7.50
92190B
921901536
ref: 92190B
ARFGFRITNLSTUK
TUBE,WATER
921901536
€ 7.50
