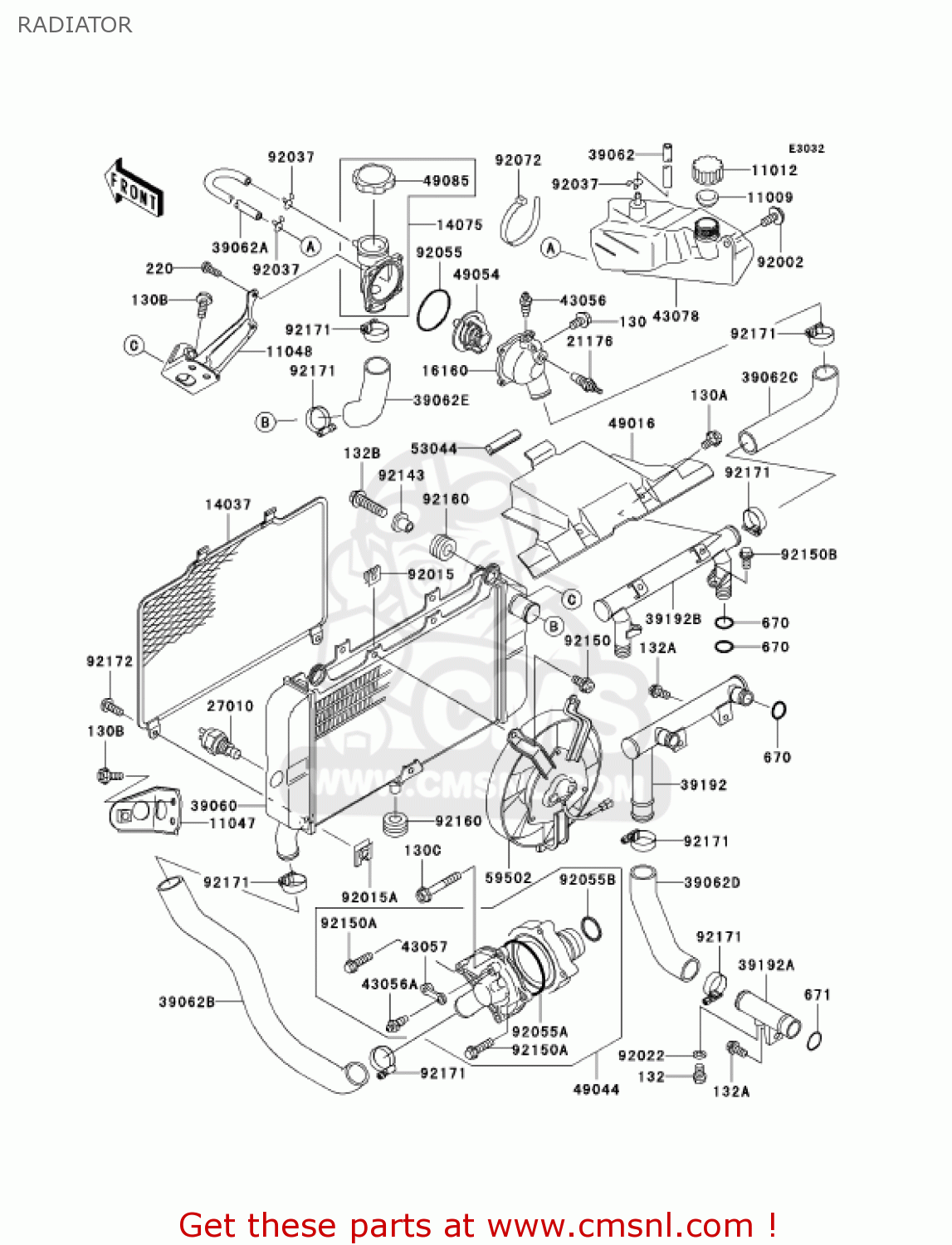

RADIATOR

ref

part #

description

quantity

11009

110091145
ref: 11009

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11012

110121084
ref: 11012

CAP

€ 1.50

11047

110471925
ref: 11047

BRACKET,RADIATOR,UPP,

€ 9.50

11048

110481269
ref: 11048

BRACKET,THERMOSTAT BO

€ 16.50

14037

140371171
ref: 14037

SCREEN,RADIATOR

€ 69.50

14075

140751068
ref: 14075

CAP-ASSY

€ 134.00

16160

161601117
ref: 16160

BODY,THERMOSTAT

€ 59.00

21176

211761054
ref: 21176

SENSOR,WATER

€ 49.50

27010

270101202
ref: 27010

SWITCH,FAN

€ 74.00

39060

390601115
ref: 39060

RADIATOR

€ 725.50

39062

390621075
ref: 39062

HOSE-COOLING

€ 17.50

39062A

390621285
ref: 39062A

HOSE COOLING

€ 18.00

39062B

390621526
ref: 39062B

HOSE-COOLING,RADIATOR

€ 50.00

39062C

390621528
ref: 39062C

HOSE-COOLING,HEAD-THE

€ 24.00

39062D

390621546
ref: 39062D

HOSE-COOLING,PUMP-CYL

€ 30.00

39062E

390621547
ref: 39062E

HOSE-COOLING,THERMO-R

€ 20.00

39192

391921033
ref: 39192

PIPE-WATER

€ 110.50

39192A

391921034
ref: 39192A

PIPE-WATER

€ 42.00

39192B

391921039
ref: 39192B

PIPE-WATER

€ 95.50

43056

43056003
ref: 43056

BREATHER-BRAKE

€ 16.50

43056A

430561051
ref: 43056A

BREATHER-BRAKE

€ 10.00

43057

430571001
ref: 43057

CAP-BREATHER

€ 3.00

43078

430781135
ref: 43078

RESERVOIR

€ 46.50

49016

490161161
ref: 49016

COVER-SEAL,HEAT

€ 23.00

49044

490441087
ref: 49044

PUMP-WATER

€ 275.50

49054

490541051
ref: 49054

THERMOSTAT

€ 44.50

49085

490851067
ref: 49085

CAP-ASSY-PRESSURE

€ 39.50

53044

530441174
ref: 53044

TRIM

€ 2.50

59502

595021094
ref: 59502

FAN-ASSY

€ 621.50

92002

920021720
ref: 92002

BOLT,6X16

€ 2.50

92015

920151487
ref: 92015

NUT

€ 3.00

92015A

920151758
ref: 92015A

NUT

€ 4.50

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92055

92055112
ref: 92055

O RING, 53.5 M/M

€ 4.00

92055A

920551423
ref: 92055A

RING-O,WATER PUMP INS

€ 6.00

92055B

920551424
ref: 92055B

RING-O,33.2X2.4

€ 4.00

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92143

921431450
ref: 92143

COLLAR

€ 6.50

92150

921501186
ref: 92150

BOLT

€ 3.00

130

130G0612
ref: 130

BOLT,FLANGE,6X12

€ 0.50

130A

130H0612
ref: 130A

BOLT-FLANGED,6X12

€ 0.50

130B

130J0618
ref: 130B

BOLT-FLANGED,6X18

€ 1.50

130C

130Z0640
ref: 130C

BOLT-FLANGED

€ 1.50

132

132J0610
ref: 132

BOLT-FLANGED-SMALL,6X

€ 1.50

132A

132J0612
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132J0830
ref: 132B

BOLT-FLANGED-SMALL

€ 2.50

220

220D0514
ref: 220

SCREW-PAN-CROS

€ 2.50

670

670B2016
ref: 670

O RING,16MM

€ 1.00

671

671B2525
ref: 671

O RING,25MM

€ 3.00

92150A

921501379
ref: 92150A

BOLT

€ 3.00

92150B

921501841
ref: 92150B

BOLT,6X12

€ 3.50

92160

921601007
ref: 92160

DAMPER

€ 3.50

92171

921710179
ref: 92171

CLAMP

€ 7.50

92172

921720010
ref: 92172

SCREW,TAPPING,6X16

€ 2.00
