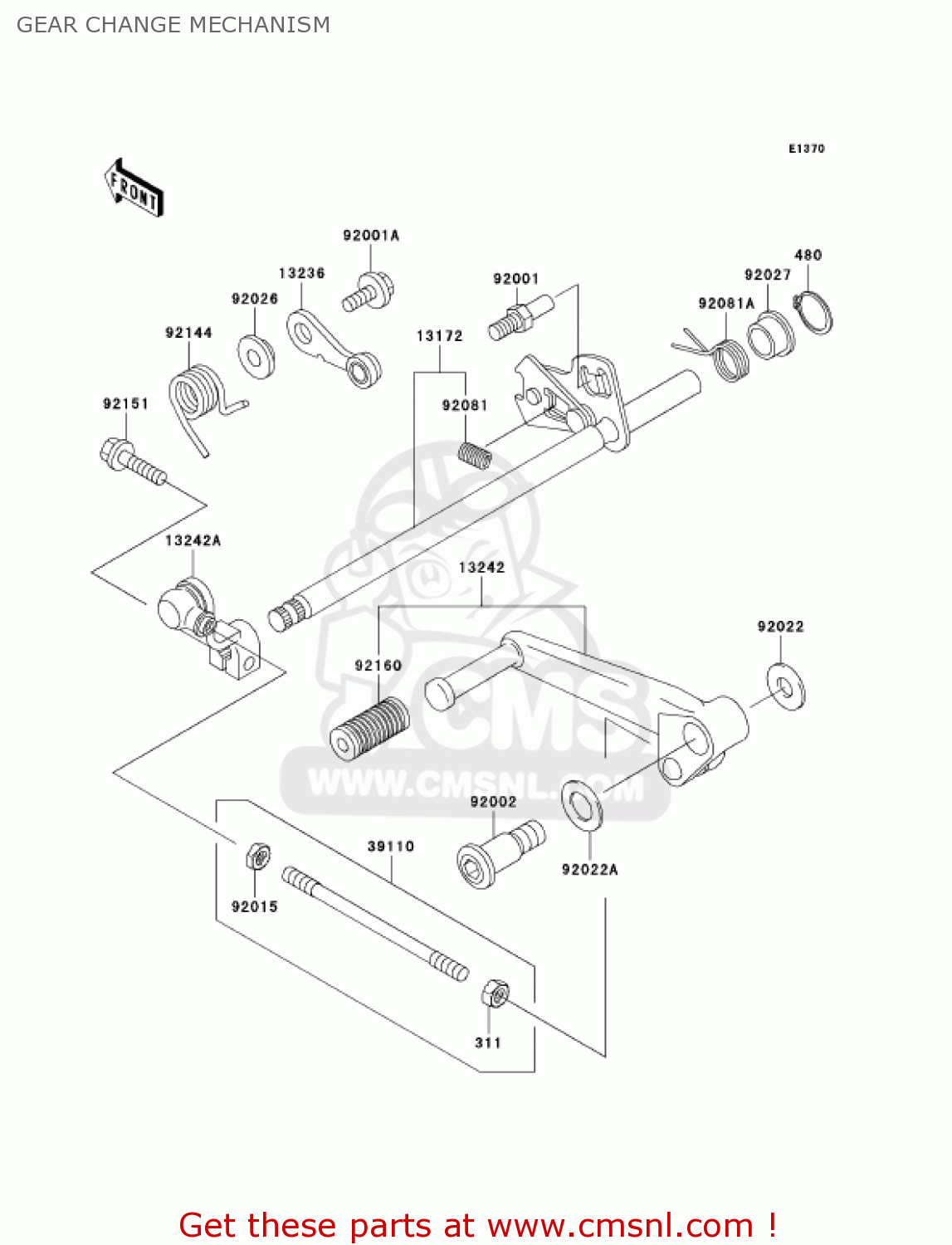

GEAR CHANGE MECHANISM

ref

part #

description

quantity

311

311J0600
ref: 311

NUT-HEX

€ 1.00

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13172

131721092
ref: 13172

SHAFT-ASSY-CHANGE

€ 89.00

13236

132361209
ref: 13236

LEVER-COMP,NEUTRAL PO

€ 13.00

13242

132421305
ref: 13242

LEVER-ASSY-CHANGE,PED

€ 54.00

13242A

132421306
ref: 13242A

LEVER-ASSY-CHANGE,LIN

€ 28.00

39110

391101010
ref: 39110

ROD-ASSY-TIE,CHANGE L

€ 9.00

92001

920011455
ref: 92001

BOLT

€ 3.00

92001A

920011516
ref: 92001A

BOLT,W/WASHER,6X12

€ 3.00

92002

920021926
ref: 92002

BOLT,CHANGE PEDAL

€ 10.50

92015

920151178
ref: 92015

NUT

€ 2.50

92022

920221561
ref: 92022

WASHER,8.5X20X1.6

€ 2.50

92022A

920221593
ref: 92022A

WASHER,12.5X22X1.2

€ 3.00

92026

920261217
ref: 92026

SPACER

€ 3.50

92027

920271801
ref: 92027

COLLAR,13X18X9

€ 5.50

92081

920811275
ref: 92081

SPRING CHANGE LEVER

€ 2.50

92081A

920811279
ref: 92081A

SPRING,CHANGE LEVER R

€ 4.50

92144

921441693
ref: 92144

SPRING,RETURN

€ 5.00

92151

921511450
ref: 92151

BOLT,6X20

€ 1.50

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50

all assemblies
