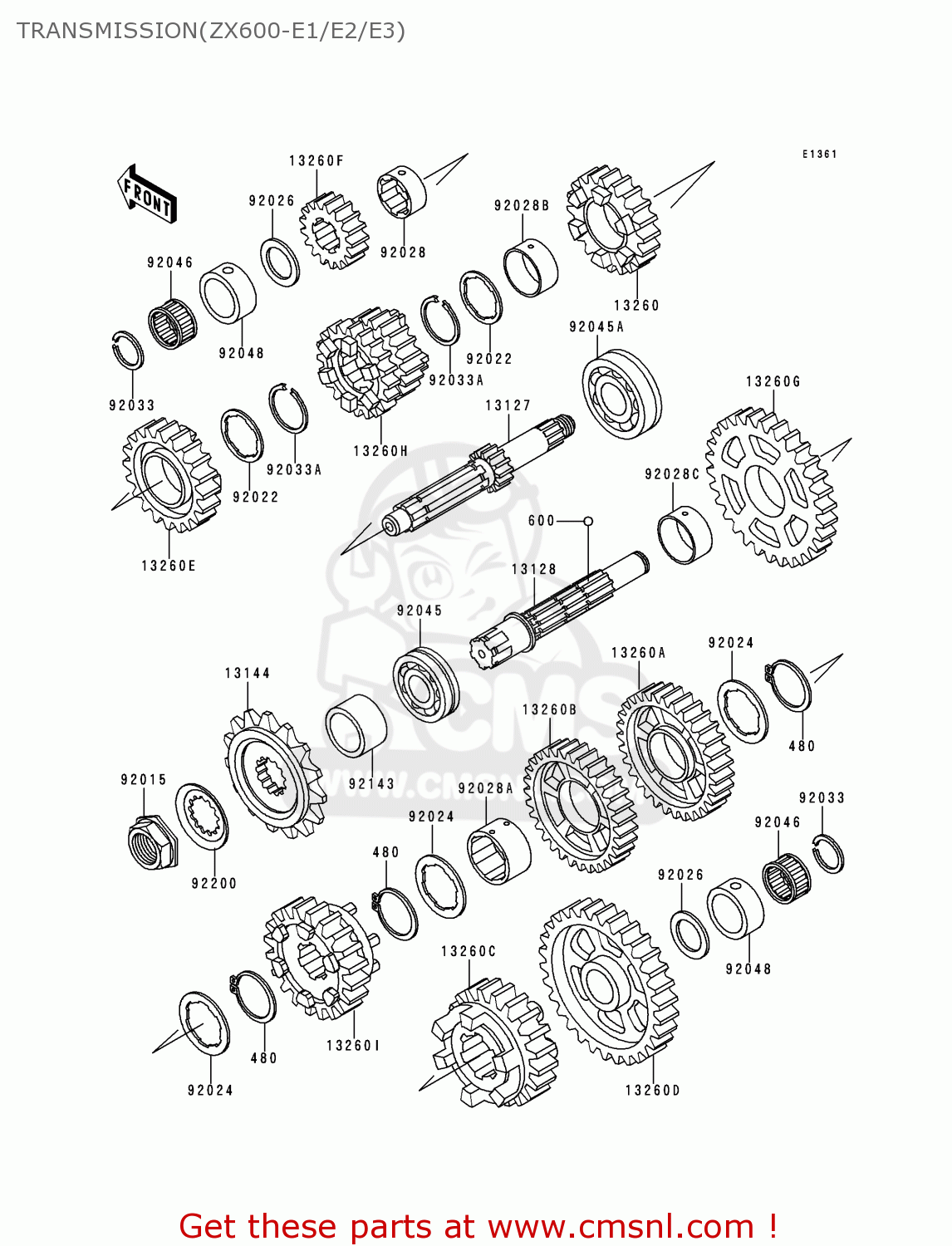

TRANSMISSION(ZX600-E1/E2/E3)

ref

part #

description

quantity

480

480J2900
ref: 480

CIRCLIP

€ 3.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13127

131271230
ref: 13127

SHAFT-TRANSMISSION IN

€ 187.00

13128

131281194
ref: 13128

SHAFT-TRANSMISSION OU

€ 175.00

13144

131441212
ref: 13144

SPROCKET-OUTPUT,16T

€ 35.50

13260

132601026
ref: 13260

GEAR,INPUT 5TH,23T

€ 59.50

13260A

132601028
ref: 13260A

GEAR,OUTPUT 3RD,35T

€ 108.50

13260B

132601029
ref: 13260B

GEAR,OUTPUT 4TH,29T

€ 129.00

13260C

132601030
ref: 13260C

GEAR,OUTPUT 5TH,28T

€ 125.50

13260D

132601125
ref: 13260D

GEAR,OUTPUT LOW,38T

€ 34.00

13260E

132601323
ref: 13260E

GEAR,INPUT TOP,24T

€ 70.50

13260F

132601334
ref: 13260F

GEAR,INPUT 2ND,16T

€ 45.00

13260G

132601379
ref: 13260G

GEAR,OUTPUT 2ND,34T

€ 90.50

13260H

132601381
ref: 13260H

GEAR,INPUT 3RD&4TH,21

€ 122.00

13260I

132601478
ref: 13260I

GEAR,OUTPUT TOP,26T

€ 102.50

92015

920151963
ref: 92015

NUT,20MM

€ 10.50

92022

920221139
ref: 92022

WASHER,TOOTHED,28.3X3

€ 4.00

92024

92024043
ref: 92024

WASHER,TOOTHED,30.3X4

€ 8.00

92026

920261224
ref: 92026

SPACER,22X35.5X2.1

€ 6.00

92028

920281255
ref: 92028

BUSHING,INPUT TOP GEA

€ 27.00

92028A

920281363
ref: 92028A

BUSHING,OUTPUT 3RD&4T

€ 30.50

92028B

920281449
ref: 92028B

BUSHING,INPUT 5TH GEA

€ 17.50

92028C

920281450
ref: 92028C

BUSHING,OUTPUT 2ND

€ 16.00

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92033A

920331037
ref: 92033A

SNAP RING,25.9X1.2T

€ 3.00

92045

92045035
ref: 92045

BEARING-BALL,83993SH2

€ 66.50

92045A

920451224
ref: 92045A

BEARING-BALL,6305N2SH

€ 40.00

92046

92046031
ref: 92046

BEARING-NEEDLE,FWF-22

€ 19.50

92048

920481066
ref: 92048

RACE,NEEDLE BEARING

€ 25.50

92143

921431617
ref: 92143

COLLAR,25X32X20

€ 19.50

92200

922001065
ref: 92200

WASHER

€ 4.50
