GEAR CHANGE DRUM/SHIFT FORK(S)

ZX600E1 ZZR600 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

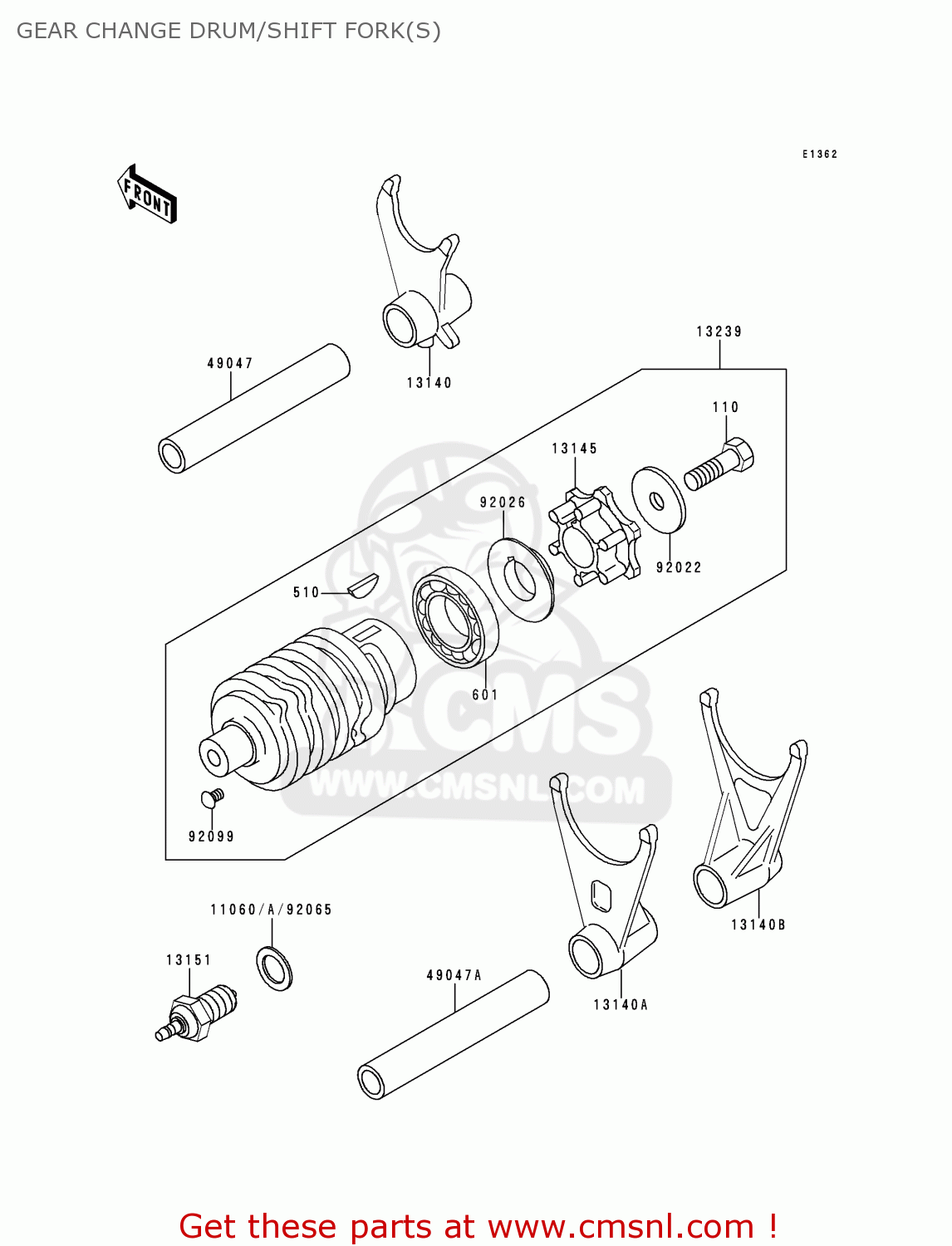

Gear change drum/shift fork(s) diagram ZX600E1 ZZR600 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

110

110P0620
ref: 110

BOLT,HEX HEAD,6X20

€ 2.50

510

510A3200
ref: 510

KEY-WOODRUFF

€ 1.50

601

601A6005
ref: 601

BEARING-BALL

€ 14.50

11060

110601676
ref: 11060

GASKET,10.5X16X1.5 (NAS)

€ 3.00

11060A

110601684
ref: 11060A

GASKET,10.5X16X1.2 (NAS)

€ 2.00

13140

131401153
ref: 13140

FORK-SHIFT,INPUT

€ 63.00

13140A

131401154
ref: 13140A

FORK-SHIFT,OUTPUT

€ 73.00

13140B

131401191
ref: 13140B

FORK-SHIFT,OUTPUT

€ 77.50

13145

131451074
ref: 13145

CAM-CHANGE DRUM

€ 33.00

13151

131511007
ref: 13151

SWITCH,NEUTRAL

€ 9.00

13239

132391176
ref: 13239

DRUM-ASSY-CHANGE

€ 175.50

49047

490471070
ref: 49047

ROD-SHIFT

€ 18.00

49047A

490471076
ref: 49047A

ROD-SHIFT

€ 17.50

92022

920221690
ref: 92022

WASHER

€ 2.50

92026

920261380
ref: 92026

SPACER,CHANGE DRUM

€ 10.00

92065

92065058
ref: 92065

GASKET, 10,5X16X1 (NAS)

€ 2.50

92099

92099001
ref: 92099

SCREW RIVET

€ 2.50
