GENERATOR

ZX600D1 NINJA ZX6 1990 USA CALIFORNIA CANADA

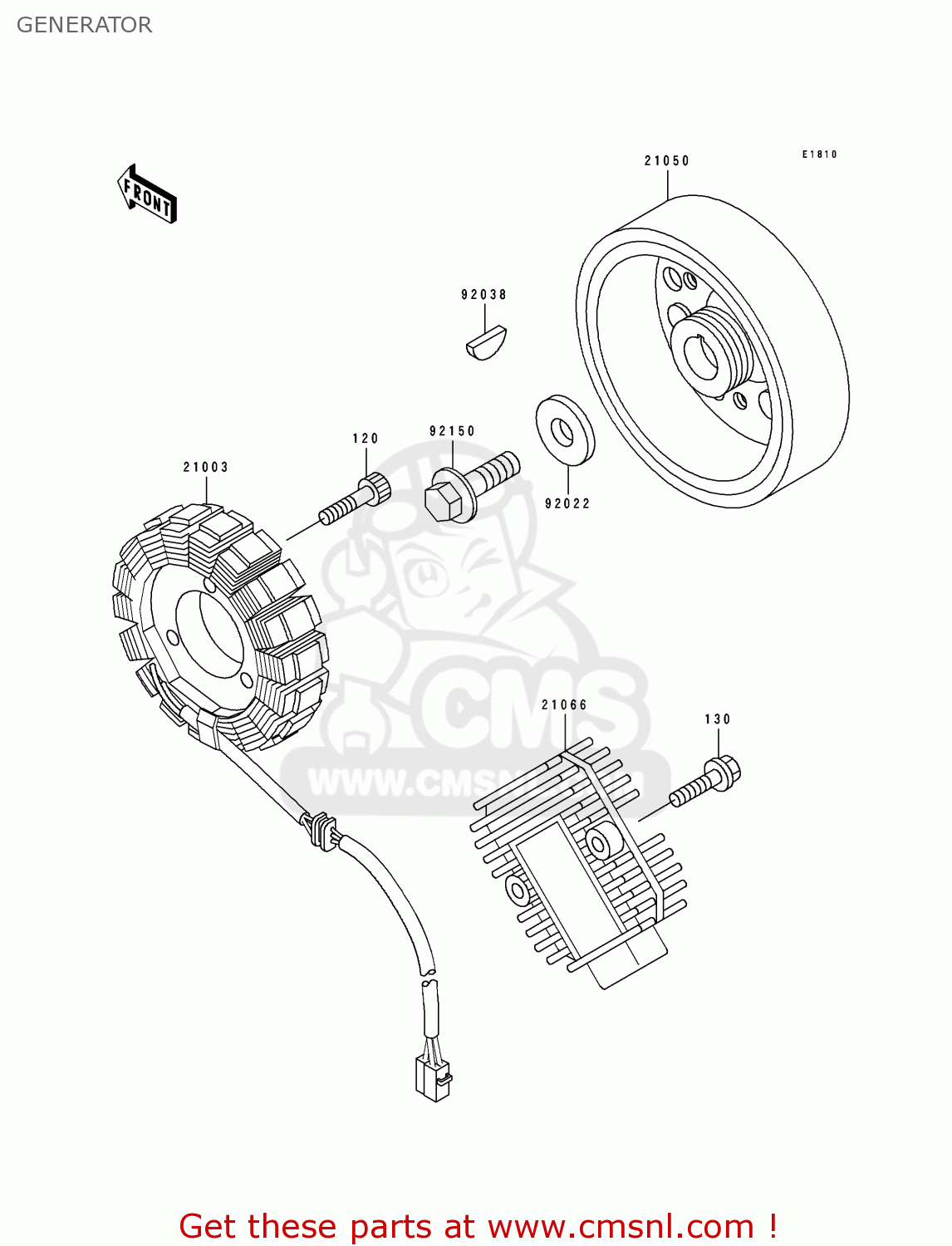

Generator diagram ZX600D1 NINJA ZX6 1990 USA CALIFORNIA CANADA

GENERATOR ZX600D1 NINJA ZX6 1990 USA CALIFORNIA CANADA

GENERATOR ZX600D1 NINJA ZX6 1990 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120P0625
ref: 120

BOLT,6X25

€ 1.50

130

130W0620
ref: 130

BOLT-FLANGED

€ 2.00

21003

210031214
ref: 21003

STATOR

€ 567.50

21050

210501146
ref: 21050

FLYWHEEL

€ 434.00

21066

210661055
ref: 21066

REGULATOR-VOLTAGE

€ 157.50

92022

920221952
ref: 92022

WASHER,10.3X30X4

€ 6.50

92038

92038001
ref: 92038

WOODRUFF KEY

€ 3.00

92150

921501134
ref: 92150

BOLT,10X32

€ 6.00
