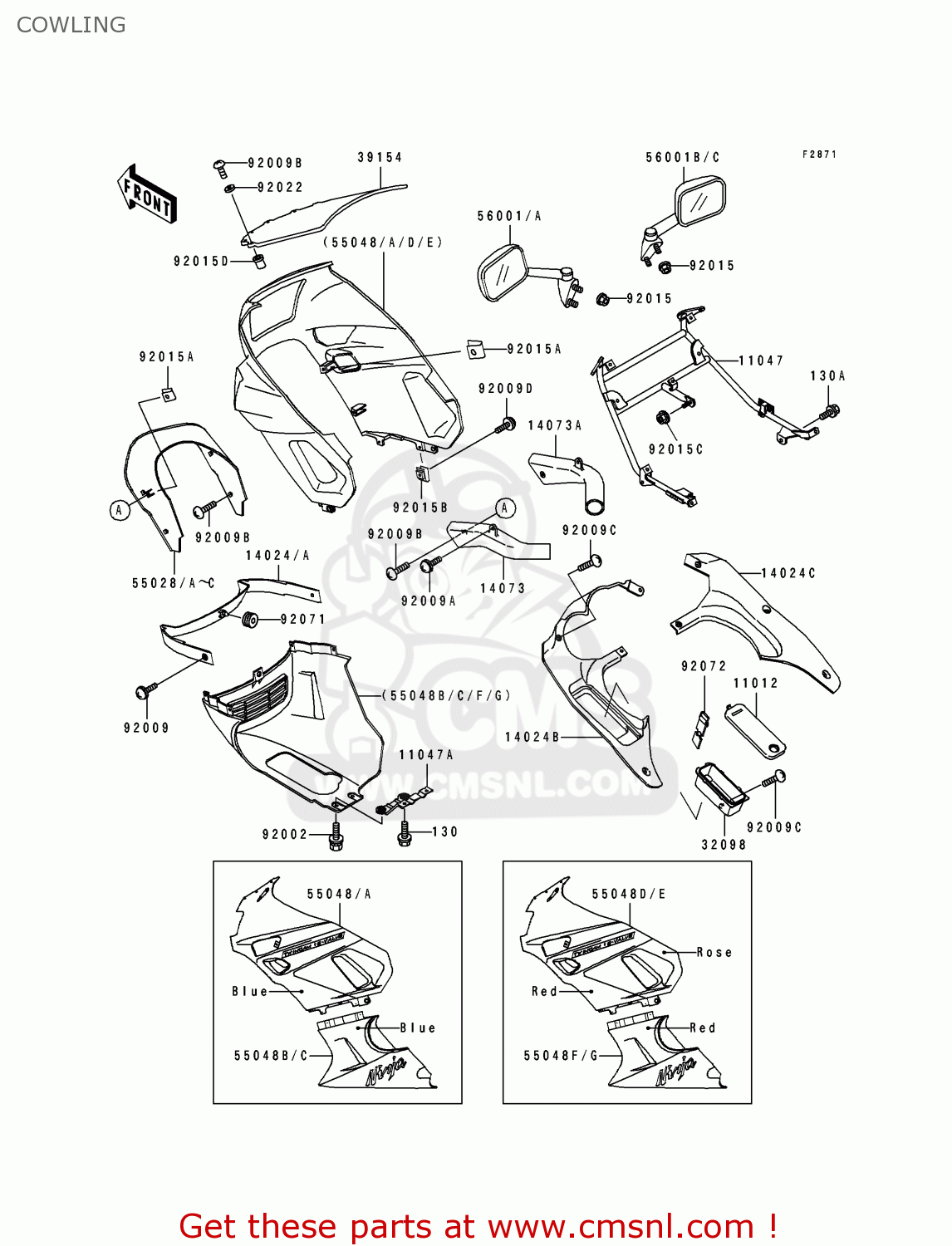

COWLING

ref

part #

description

quantity

11012

110121735
ref: 11012

CAP,INNER COWLING,LH

€ 18.50

11047

110461962
ref: 11047

BRACKET,COWLING

€ 223.50

11047A

110471091
ref: 11047A

BRACKET,LWR COWLING

€ 17.00

14024

140241877GD
ref: 14024
CN

COVER,COWLING,CNT,G.G

€ 79.00

14024A

140241877HN
ref: 14024A
CAUS

COVERCOWLING CNTGGRAY

€ 76.50

14024B

140241901
ref: 14024B

COVER,INNER COWLING,L

€ 67.00

14024C

140241902
ref: 14024C

COVER,INNER COWLING,R

€ 64.00

14073

140731426
ref: 14073

DUCT,AIR INTAKE,LH

€ 25.50

14073A

140731427
ref: 14073A

DUCT,AIR INTAKE,RH

€ 12.50

32098

320981093
ref: 32098

CASE-TOOL

€ 24.00

39154

391541109
ref: 39154

WINDSHIELD

€ 167.00

55028

550281244FC
ref: 55028
CN

COWLING,FR,C.A.BLUE

€ 106.00

55028A

550281244HL
ref: 55028A
CAUS

COWLING,FRONT,CANDY ATLANTIC BLUE

€ 62.50

55028B

550281244HR
ref: 55028B
CAUS

COWLING,FRONT,CANDY CARDINAL RED

€ 62.50

55028C

550281244L1
ref: 55028C
CN

COWLING,FR,C.C.RED

€ 106.00

55048

550485428GX
ref: 55048
CN

COWLING.,UPP,BLUE/BLU

€ 765.50

55048A

550485428HK
ref: 55048A
CAUS

COWLING,UPPER,BLUE/BLUE

€ 356.00

55048B

550485429GX
ref: 55048B
CN

COWLING.,LWR,BLUE/BLUE

€ 0.00

55048C

550485429HK
ref: 55048C
CAUS

COWLING,LWR,BLUE

€ 423.50

55048D

550485430HF
ref: 55048D
CN

COWLING.,UPP,RED/ROSE

€ 765.50

55048E

550485430HP
ref: 55048E
CAUS

COWLING.UPP,RED/ROZE

€ 735.00

55048F

550485431HF
ref: 55048F
CN

COWLING.,LWR,RED/ROSE OPERA

€ 0.00

55048G

550485431HP
ref: 55048G
CAUS

COWLING.,LWR,RED/ROSE

€ 403.00

56001

560011392FC
ref: 56001

MIRROR-ASSY,LH,C.A.BL

€ 113.00

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

130A

130J0812
ref: 130A

BOLT-FLANGED

€ 0.50

56001A

560011392L1
ref: 56001A

MIRROR-ASSY,LH,C.C.RE

€ 123.00

56001B

560011393FC
ref: 56001B

MIRROR-ASSY,RH,C.A.BL

€ 113.00

56001C

560011393L1
ref: 56001C

MIRROR-ASSY,RH,C.C.RE

€ 119.00

92002

920021242
ref: 92002

BOLT

€ 3.00

92009

920091287
ref: 92009

SCREW,6X14

€ 1.50

92009A

920091288
ref: 92009A

SCREW,6X14

€ 2.00

92009B

920091301
ref: 92009B

SCREW,5X16

€ 0.50

92009C

920091611
ref: 92009C

SCREW,6X14

€ 2.50

92009D

920091621
ref: 92009D

SCREW

€ 1.50

92015

920151233
ref: 92015

NUT,FLANGED,6MM

€ 3.50

92015A

920151573
ref: 92015A

NUT,5MM

€ 4.50

92015B

920151602
ref: 92015B

NUT,6MM

€ 4.50

92015C

920151696
ref: 92015C

NUT,FLANGED,LOCK,8MM

€ 3.00

92015D

920151757A
ref: 92015D

NUT,5MM

€ 5.00

92022

920221521
ref: 92022

WASHER,NYLON,5.3X11.5

€ 2.50

92071

92071056
ref: 92071

GROMMET

€ 2.50

92072

920721235
ref: 92072

BAND,L=300

€ 12.00
