SECONDARY SHAFT

ZX600C9 GPX600R 1996 UNITED KINGDOM FG

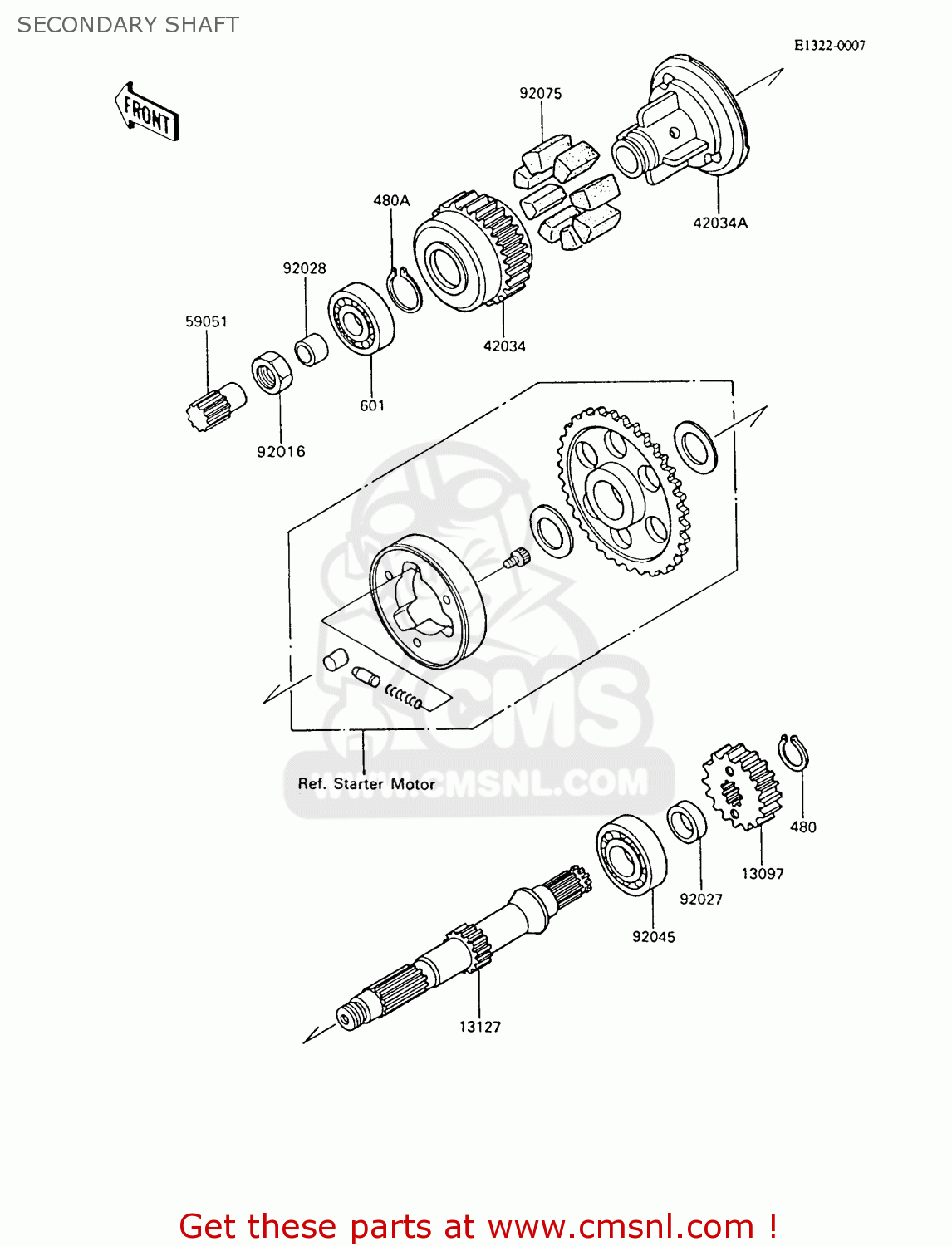

Secondary shaft diagram ZX600C9 GPX600R 1996 UNITED KINGDOM FG

prices are in EUR

ref

part #

description

quantity

480

480J2200
ref: 480

CIRCLIP-TYPE-C,22MM

€ 3.00

480A

480J2800
ref: 480A

CIRCLIP-TYPE-C,28MM

€ 3.50

601

601B6205
ref: 601

BEARING-BALL,#6205C3

€ 14.00

13097

130971141
ref: 13097

GEAR-PRIMARY SPUR,28T

€ 74.50

13127

131271123
ref: 13127

SHAFT,SECONDARY

€ 181.00

42034

420341004
ref: 42034

COUPLING,OUTER,SECOND

€ 109.00

42034A

420341005
ref: 42034A

COUPLING,INNER,SECOND

€ 121.00

59051

590511137
ref: 59051

GEAR-SPUR,10T,SECONDA

€ 20.00

92016

92016028
ref: 92016

NUT

€ 9.50

92027

920271438
ref: 92027

COLLAR,22X34X7.3

€ 4.00

92028

920281037
ref: 92028

BUSHING,20X25X16.6

€ 16.00

92045

920451017
ref: 92045

BEARING-BALL,#63/22X

€ 32.50

92075

920751070
ref: 92075

DAMPER,COUPLING

€ 4.50

SECONDARY SHAFT

all assemblies
