COWLING
ZX600C9 GPX600R 1996 UNITED KINGDOM FG

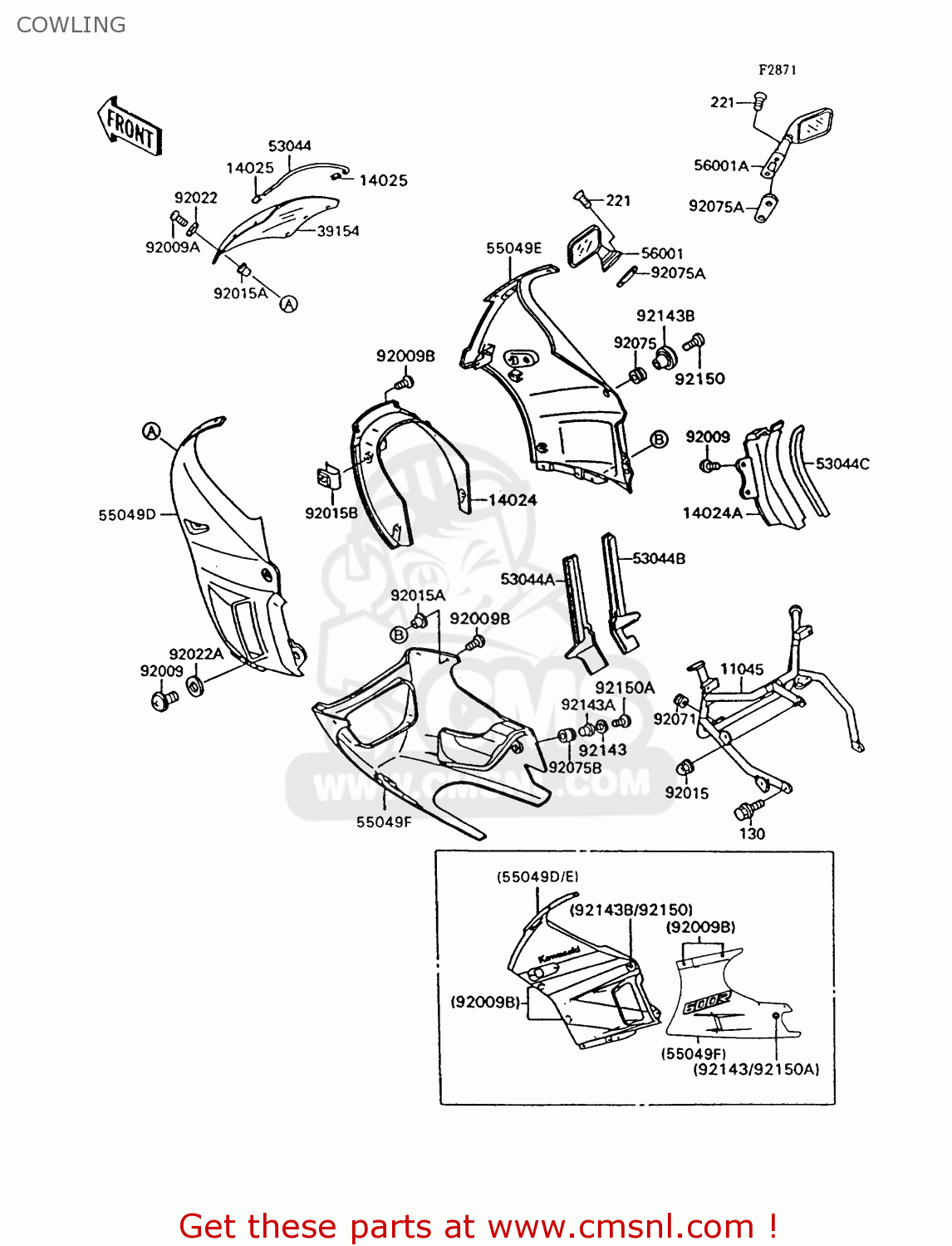

Cowling diagram ZX600C9 GPX600R 1996 UNITED KINGDOM FG
COWLING ZX600C9 GPX600R 1996 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
11045
110451538
ref: 11045
BRACKET,COWLING
€ 209.00
14024
140241408H8
ref: 14024
COVER,HEAD LAMP,EBONY
€ 194.50
14024A
140241538
ref: 14024A
COVER,COWLING,INNER,R
€ 24.50
14025
140251756
ref: 14025
COVER,TRIM END
€ 4.50
39154
391541106
ref: 39154
WINDSHIELD
€ 188.00
53044
530441130
ref: 53044
TRIM,WINDSHIELD
€ 8.50
53044A
530441193
ref: 53044A
TRIM,COWLING,LH
€ 9.00
53044B
530441194
ref: 53044B
TRIM,COWLING,RH
€ 9.00
53044C
530441198
ref: 53044C
TRIM
€ 10.00
130
130C0812
ref: 130
BOLT-FLANGED,8X12,BLA
€ 0.50
221
221C0630
ref: 221
SCREW-CSK-CROS,6X30
€ 1.00
55049D
550495392H8
ref: 55049D
COWLING.,UPP,LH,EBONY
€ 424.50
55049E
550495393H8
ref: 55049E
COWLING.,UPP,RH,EBONY
€ 424.50
55049F
550495394VL
ref: 55049F
COWLING.,LWR,EBONY/GR
€ 325.00
56001
560011319
ref: 56001
MIRROR-ASSY,LH
€ 87.00
56001A
560011320
ref: 56001A
MIRROR-ASSY,RH
€ 71.50
92009
920091288
ref: 92009
SCREW,6X14
€ 2.00
92009A
920091654
ref: 92009A
SCREW
€ 0.50
92009B
920091656
ref: 92009B
SCREW
€ 2.50
92015
920151174
ref: 92015
NUT,CAP,8MM,BLACK
€ 3.00
92015A
920151640
ref: 92015A
NUT
€ 5.00
92015B
920151710
ref: 92015B
NUT
€ 4.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
€ 2.50
92022A
920221654
ref: 92022A
WASHER,6.5X16X1.0
€ 2.50
92071
92071056
ref: 92071
GROMMET
€ 2.50
92075
920751634
ref: 92075
DAMPER
€ 3.00
92075A
920751929
ref: 92075A
DAMPER,MIRROR
€ 3.50
92075B
920751936
ref: 92075B
DAMPER
€ 3.50
92143
921431086
ref: 92143
COLLAR,L=6.5,BLACK
€ 9.00
92143A
921431100
ref: 92143A
COLLAR,L=19.6
€ 5.00
92143B
921431226
ref: 92143B
COLLAR,BLACK
€ 7.50
92150
921501553
ref: 92150
BOLT,SOCKET,6X18
€ 4.00
92150A
921501554
ref: 92150A
BOLT,SOCKET,6X30
€ 3.50
