RADIATOR
ZX600C8 GPX600R 1995 UNITED KINGDOM FG

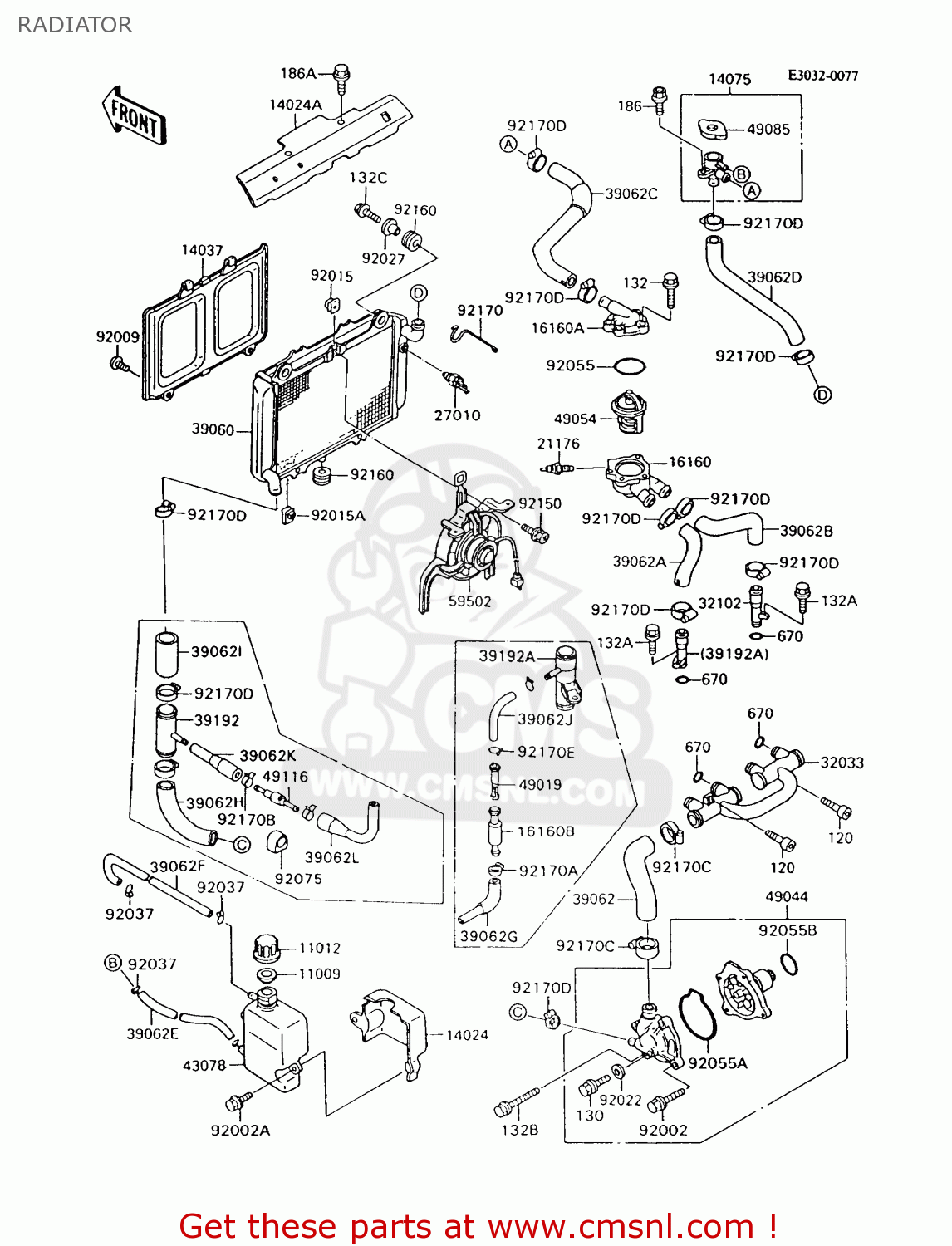

Radiator diagram ZX600C8 GPX600R 1995 UNITED KINGDOM FG
RADIATOR ZX600C8 GPX600R 1995 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
14024
140241426
ref: 14024
COVER,RESERVOIR
€ 10.00
14024A
140241441
ref: 14024A
COVER
€ 17.00
14037
140371091
ref: 14037
SCREEN
€ 63.00
14075
140751061
ref: 14075
CAP-ASSY
€ 128.00
16160
161601112
ref: 16160
BODY,THERMOSTAT,LWR
€ 53.50
16160A
161601129
ref: 16160A
BODY,THERMOSTAT,UPP
€ 39.00
16160B
161601151
ref: 16160B
BODY,FILTER
€ 6.50
21176
211761054
ref: 21176
SENSOR,WATER
€ 49.50
27010
270101304
ref: 27010
SWITCH,THERMOSTAT
€ 63.00
32033
320331593
ref: 32033
PIPE
€ 91.50
32102
321021043
ref: 32102
PIPE
€ 23.50
39060
390601085
ref: 39060
RADIATOR
€ 576.50
39062
390621111
ref: 39062
HOSE-COOLING,PUMP-CYL
€ 21.00
39062A
390621235
ref: 39062A
HOSE-COOLING,HEAD-THE
€ 12.00
39062B
390621236
ref: 39062B
HOSE-COOLING,HEAD-THE
€ 18.50
39062C
390621237
ref: 39062C
HOSE-COOLING,CAP-THER
€ 21.00
39062D
390621238
ref: 39062D
HOSE-COOLING,CAP-RADI
€ 15.50
39062E
390621240
ref: 39062E
HOSE-COOLING,RESERVOI
€ 18.00
39062F
390621269
ref: 39062F
HOSE-COOLING
€ 18.00
39062G
390621314
ref: 39062G
HOSE-COOLING
€ 7.50
39062H
390621346
ref: 39062H
HOSE-COOLING
€ 14.00
39062I
390621348
ref: 39062I
HOSE-COOLING
€ 17.00
39062J
390621349
ref: 39062J
HOSE-COOLING
€ 3.50
39062K
390621568
ref: 39062K
HOSE-COOLING
€ 5.00
39062L
390621578
ref: 39062L
HOSE-COOLING
€ 3.50
39192
391921016
ref: 39192
PIPE-WATER
€ 22.00
39192A
391921017
ref: 39192A
PIPE-WATER
€ 19.50
43078
430781086
ref: 43078
RESERVOIR
€ 34.00
49019
490191068
ref: 49019
FILTER-FUEL
€ 4.00
49044
490441054
ref: 49044
PUMP-WATER
€ 288.50
49054
490541059
ref: 49054
THERMOSTAT
€ 41.50
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
49116
491161081
ref: 49116
VALVE-ASSY
€ 85.00
59502
595021081
ref: 59502
FAN-ASSY
€ 389.50
92002
920021392
ref: 92002
BOLT,6X22
€ 3.00
92002A
920021720
ref: 92002A
BOLT,6X16
€ 2.50
92009
920091436
ref: 92009
SCREW
€ 2.00
92015
920151487
ref: 92015
NUT
€ 3.00
120
120S0612
ref: 120
BOLT-SOCKET
€ 1.50
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
€ 1.50
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132J0645
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
132C
132J0825
ref: 132C
BOLT-FLANGED-SMALL
€ 2.50
186
186C0614
ref: 186
BOLT-UPSET-WP
€ 2.50
186A
186C0616
ref: 186A
BOLT-UPSET-WP
€ 2.50
670
670B2016
ref: 670
O RING,16MM
€ 1.00
92015A
920151758
ref: 92015A
NUT
€ 4.50
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
€ 4.00
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92055
920551279
ref: 92055
RING-O,45MM
€ 4.50
92055A
920551315
ref: 92055A
RING-O,WATER PUMP
€ 8.00
92055B
920551424
ref: 92055B
RING-O,33.2X2.4
€ 4.00
92075
920751728
ref: 92075
DAMPER,CARRIER
€ 5.00
92150
921501187
ref: 92150
BOLT,6X16
€ 2.50
92160
921601007
ref: 92160
DAMPER
€ 3.50
92170
921701074
ref: 92170
CLAMP
€ 6.00
92170A
921701118
ref: 92170A
CLAMP
€ 5.00
92170B
921701201
ref: 92170B
CLAMP
€ 3.50
92170C
921701284
ref: 92170C
CLAMP,CABLE
€ 7.50
92170D
921701285
ref: 92170D
CLAMP,COOLING HOSE
€ 13.00
92170E
921702042
ref: 92170E
CLAMP
€ 1.00
