FUEL TANK
ZX600C8 GPX600R 1995 UNITED KINGDOM FG

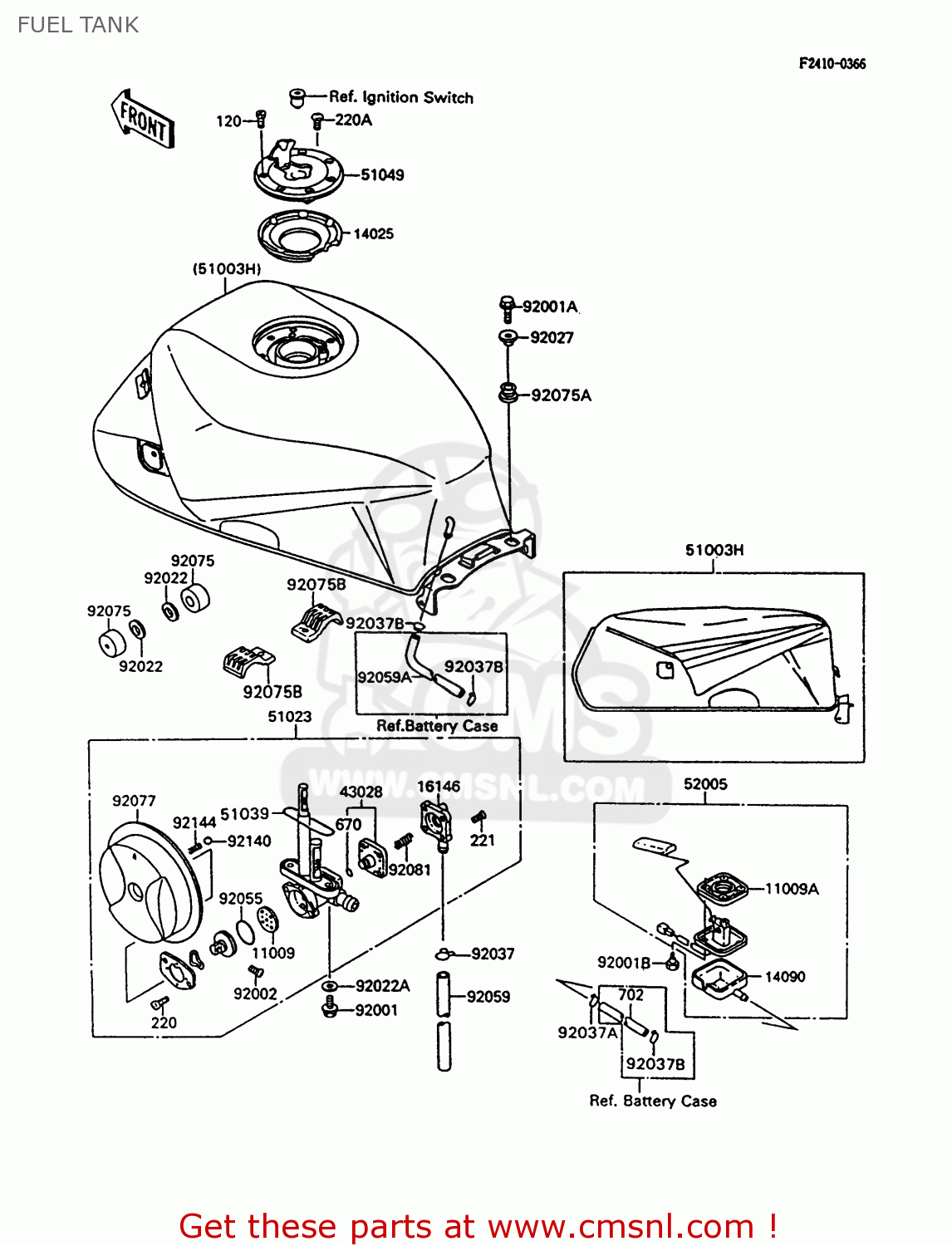

Fuel tank diagram ZX600C8 GPX600R 1995 UNITED KINGDOM FG
FUEL TANK ZX600C8 GPX600R 1995 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
11009
110091188
ref: 11009
GASKET,TAP VALVE (NAS)
€ 4.00
11009A
110091656
ref: 11009A
GASKET,FUEL GAUGE (NAS)
€ 14.50
14025
140251913
ref: 14025
COVER,TANK CAP
€ 13.50
14090
140901624
ref: 14090
COVER,FUEL GAUGE
€ 11.50
16146
161461061
ref: 16146
COVER-ASSY,TAP DIAPHR
€ 15.00
43028
430281033
ref: 43028
DIAPHRAGM
€ 15.00
51003H
510035497H8
ref: 51003H
TANK-COMP-FUEL,EBONY
€ 805.00
51023
510231158BK
ref: 51023
TAP-ASSY,FUEL,BLACK
€ 91.50
51039
51039003
ref: 51039
'O' RING
€ 4.00
51049
510491079
ref: 51049
CAP-TANK,FUEL
€ 106.50
52005
520051089
ref: 52005
GAUGE,FUEL
€ 90.50
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92001A
920011352
ref: 92001A
BOLT,FLANGED,6X22
€ 2.50
92001B
920011705
ref: 92001B
BOLT,FUEL GAGE
€ 2.50
92002
920021996
ref: 92002
BOLT
€ 2.50
92022
92022044
ref: 92022
WASHER,10.5X26X2.3
€ 2.50
92022A
92022183
ref: 92022A
WASHER,6.2X11X1.5
€ 2.50
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92037
92037010
ref: 92037
CLAMP-FUEL PIPE
€ 2.50
120
120S0512
ref: 120
BOLT-SOCKET
€ 1.00
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220C0508
ref: 220A
SCREW-PAN-CROS
€ 1.00
221
221B0418
ref: 221
SCREW-CSK-CROS
€ 2.00
670
670B1504
ref: 670
O RING,4MM
€ 2.50
702
702A07380
ref: 702
TUBE-RUBBER
€ 9.50
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
€ 4.50
92037B
920371712
ref: 92037B
CLAMP
€ 3.00
92055
920551085
ref: 92055
'O' RING,FUEL TAP LEV
€ 3.00
92059
920591890
ref: 92059
TUBE,5X9X470
€ 4.50
92059A
920593011
ref: 92059A
TUBE,6X10X200
€ 7.50
92075
92075125
ref: 92075
DAMPER RUBBER-FL TANK
€ 4.00
92075A
920751690
ref: 92075A
DAMPER,10X24X12
€ 3.00
92075B
920751932
ref: 92075B
DAMPER,FUEL TANK,CNT
€ 4.50
92077
920771089BK
ref: 92077
KNOB,FUEL TAP,BLACK
€ 19.00
92081
920811240
ref: 92081
SPRING,DIAPHRAGM VLV
€ 2.50
92140
921401051
ref: 92140
BALL,STAINLESS,5/32
€ 3.00
92144
921441212
ref: 92144
SPRING,FUEL TAP KNOB
€ 2.50
