FRONT FORK

ZX600A3 NINJA 600R 1987 EUROPE UK FR FG GR IT NR SD SP ST

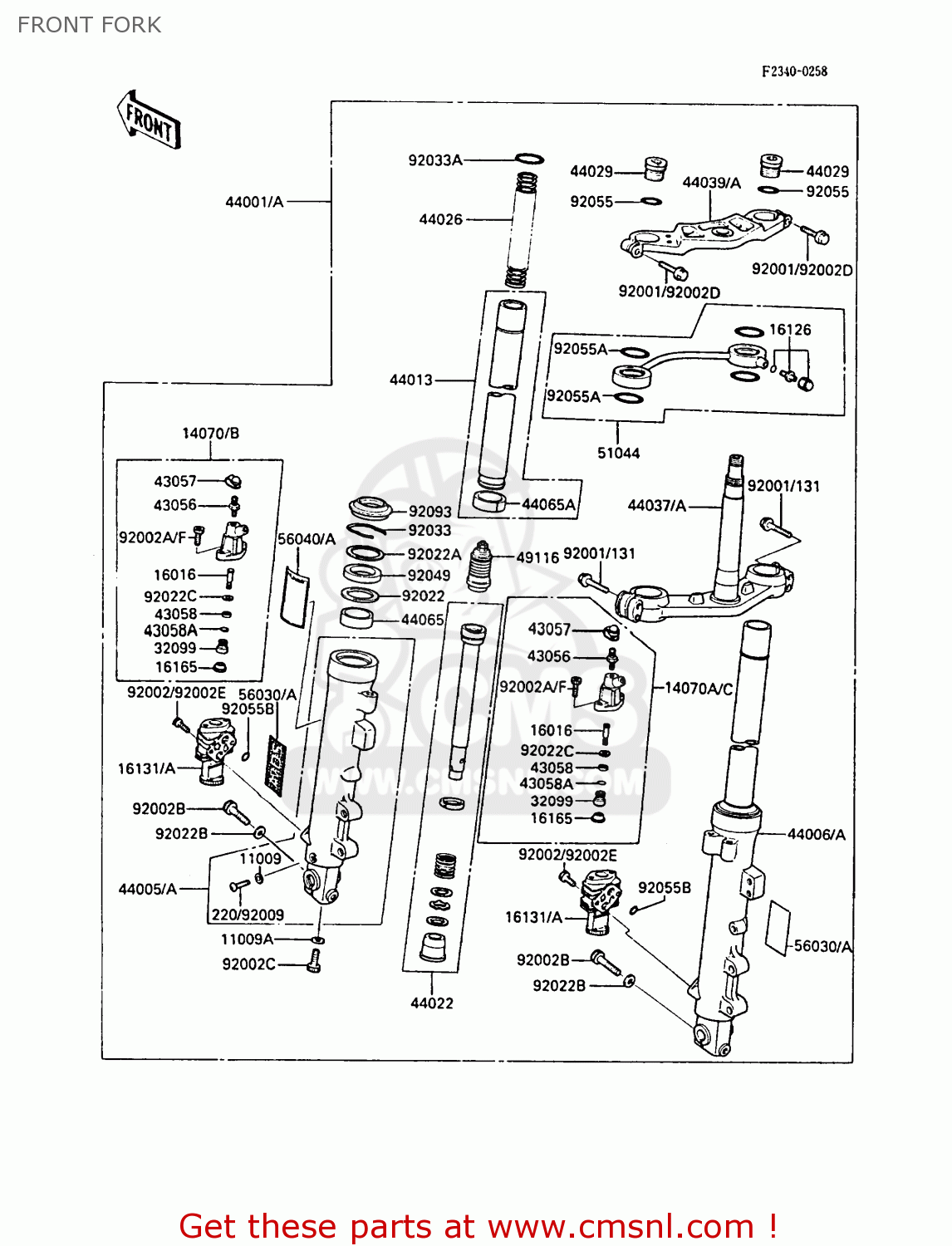

Front fork diagram ZX600A3 NINJA 600R 1987 EUROPE UK FR FG GR IT NR SD SP ST

FRONT FORK ZX600A3 NINJA 600R 1987 EUROPE UK FR FG GR IT NR SD SP ST
FRONT FORK ZX600A3 NINJA 600R 1987 EUROPE UK FR FG GR IT NR SD SP ST
FRONT FORK ZX600A3 NINJA 600R 1987 EUROPE UK FR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11009
44045002
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
44045002
€ 3.00
11009A
44045057
ref: 11009A
GASKET (NAS)
44045057
€ 3.00
14070
140701059
ref: 14070
BODY-BREATHER,ANTI-DI
140701059
€ 174.50
14070A
140701060
ref: 14070A
BODY-BREATHER,ANTI-DI
140701060
€ 174.50
16016
160161067
ref: 16016
PLUNGER,ANTI-DIVE
160161067
€ 23.00
16126
161261052
ref: 16126
VALVE,AIR
161261052
€ 22.00
16131
161311058
ref: 16131
BODY-VALVE,FORK,ANTI-
161311058
€ 133.00
16165
161651051
ref: 16165
SEPARATOR,ANTI-DIVE
161651051
€ 6.00
32099
320991067
ref: 32099
CASE,PLUG,ANTI-DIVE
320991067
€ 29.00
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
43057003
€ 3.00
43058
430581052
ref: 43058
RING,SEAL,14X18X2.5
430581052
€ 3.50
43058A
430581053
ref: 43058A
RING,SEAL,6.2X11X3.2
430581053
€ 2.50
44001
440011661
ref: 44001
FORK FRONT
€ 2,405.50
44005
440051232
ref: 44005
PIPE-LEFT FORK OUTER
440051232
€ 285.00
44006
440061232
ref: 44006
PIPE-RIGHT FORK OUTER
440061232
€ 243.50
44013
440131231
ref: 44013
PIPE-FORK INNER
440131231
€ 134.00
44022
440221181
ref: 44022
CYLINDER-FORK
440221181
€ 77.00
44026
440261302
ref: 44026
SPRING-FRONT FORK,K=0
€ 56.00
44029
440291121
ref: 44029
SEAT-FORK SPRING
440291121
€ 24.00
44037
440371180
ref: 44037
HOLDER-FORK UNDER
440371180
€ 195.00
44039
440391157
ref: 44039
HOLDER-FORK UPPER
440391157
€ 102.00
44065
440651051
ref: 44065
BUSHING-FRONT FORK
440651051
€ 15.00
44065A
440651058
ref: 44065A
BUSHING-FRONT FORK,IN
440651058
€ 20.00
49116
491161058
ref: 49116
VALVE-ASSY,FORK
€ 80.00
51044
510441069
ref: 51044
TUBE-ASSY
510441069
€ 73.50
56030
560301057
ref: 56030
LABEL,AVDS MARK
560301057
€ 2.50
56040
560401117
ref: 56040
LABEL-WARNING,SHOCKAB
€ 2.50
92001
920011188
ref: 92001
BOLT,8X40
920011188
€ 5.50
220
220E0408
ref: 220
SCREW-PAN HEAD,4X8
220E0408
€ 2.50
92002B
920021316
ref: 92002B
BOLT
920021316
€ 3.50
92002C
920021317
ref: 92002C
BOLT
€ 4.50
92002E
920021564
ref: 92002E
BOLT
€ 5.50
92002F
920021565
ref: 92002F
BOLT
€ 6.00
92022
920221455
ref: 92022
WASHER,FORK OUTER PIP
920221455
€ 4.50
92022A
920221524
ref: 92022A
WASHER,FORK OUTER PIP
920221524
€ 3.50
92022B
920221598
ref: 92022B
WASHER
920221598
€ 4.50
92022C
920221636
ref: 92022C
WASHER,6.5X18X1
920221636
€ 2.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
920331047
€ 4.00
92033A
920331202
ref: 92033A
RING-SNAP
920331202
€ 4.50
92049
920491177
ref: 92049
SEAL-OIL,FORK
920491177
€ 15.00
92055
920551051
ref: 92055
ORING,FORK TOP CAP
920551051
€ 3.50
92055A
920551164
ref: 92055A
RING-O,TUBE ASSY
920551164
€ 5.50
92055B
920551201
ref: 92055B
RING-O,AND
920551201
€ 1.00
92093
920931160
ref: 92093
SEAL,FORK
920931160
€ 16.50
