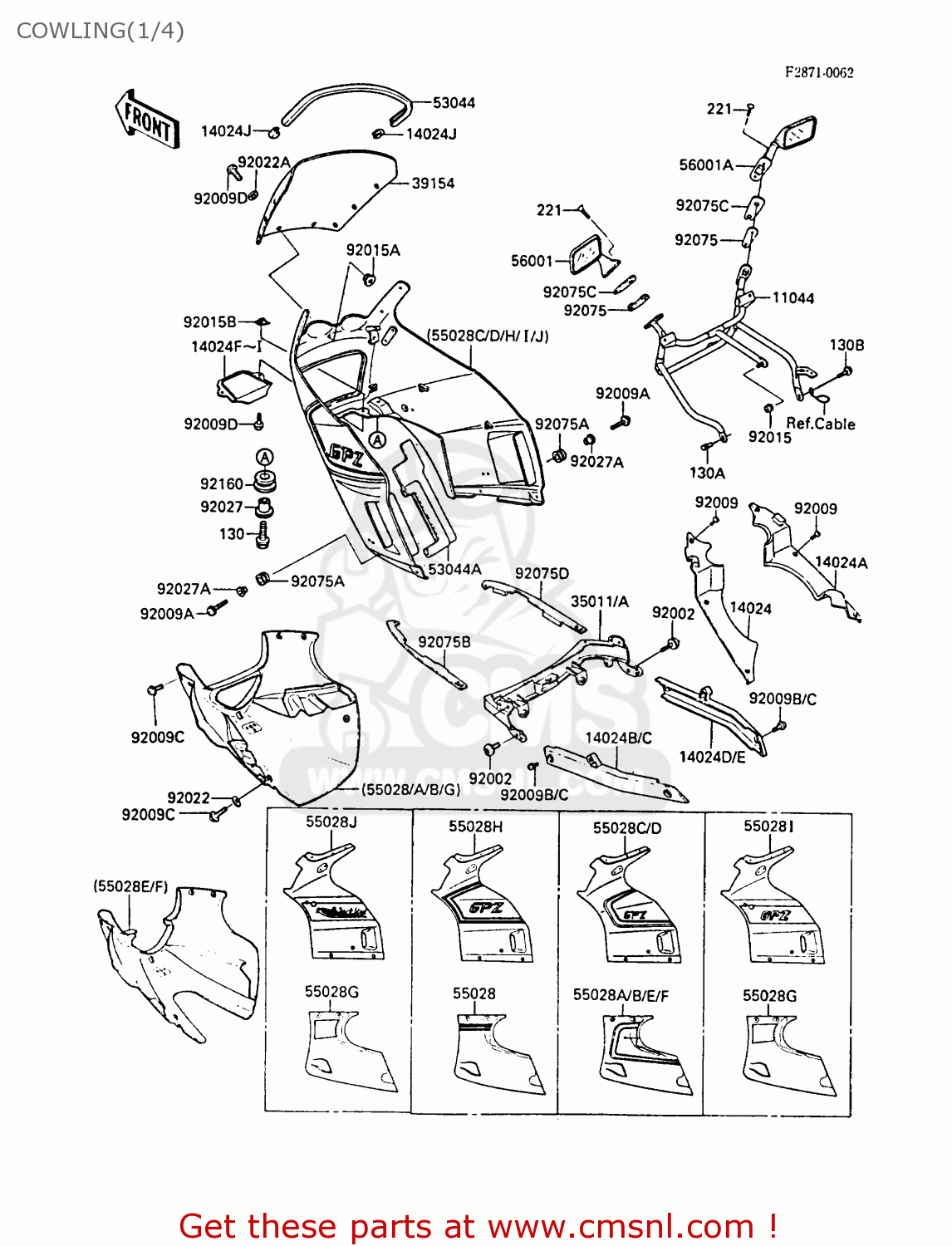

COWLING(1/4)

ref

part #

description

quantity

11044

110441076
ref: 11044

BRACKET,COWLING,UPP

€ 189.00

14024

140251726
ref: 14024

COVER,UPP,INNER,LH

€ 48.00

14024A

140251727
ref: 14024A

COVER,UPP,INNER,RH

€ 34.00

14024B

140251732X3
ref: 14024B

COVER,SIDE PANEL,LH,S

€ 59.00

14024D

140251733X3
ref: 14024D

COVER,SIDE PANEL,RH,S

€ 48.50

14024F

140251735R1
ref: 14024F

COVER,HEAD LAMP BULB,

€ 23.50

14024G

140251735T2
ref: 14024G
FG

COVER,HEAD LAMP BULB,

€ 23.50

14024I

1402517356L
ref: 14024I

COVER,HEAD LAMP BULB,

€ 33.50

14024J

140251756
ref: 14024J

COVER,TRIM END

€ 4.50

35011

350111246X3
ref: 35011

STAY,COWLING,LWR,SILV

€ 180.50

39154

391541105
ref: 39154

WINDSHIELD

€ 279.50

53044

530441120
ref: 53044

TRIM,WINDSHIELD

€ 20.50

53044A

530441135
ref: 53044A

TRIM,COWLING

€ 14.00

55028

550285262T4
ref: 55028
FG

COWLING,LWR,EBONY/P.C

€ 366.50

55028A

550285321X5
ref: 55028A
EUFGFRGRNRSDSPSTUK

COWLING,LWR,RED/GRAY

€ 311.00

55028B

550285330X7
ref: 55028B
EUFGFRGRNRSDSPSTUK

COWLING,LWR,BLUE/WHIT

€ 236.50

55028C

550285331X7
ref: 55028C

COWLING,UPP,BLUE/WHIT

€ 782.00

55028D

550285332X5
ref: 55028D

COWLING,UPP,RED/GRAY

€ 782.00

55028E

550285333X5
ref: 55028E
IT

COWLING,LWR,RED/GRAY

€ 248.50

55028F

550285334X7
ref: 55028F
IT

COWLING,LWR,BLUE/WHIT

€ 214.00

55028H

550285394T4
ref: 55028H
FG

COWLING,UPP,EBONY/GRA

€ 543.50

56001

560011248
ref: 56001

MIRROR-ASSY,LH

€ 71.50

56001A

560011249
ref: 56001A

MIRROR-ASSY,RH

€ 71.50

92002

920021588
ref: 92002

BOLT

€ 4.50

92009

920091197
ref: 92009

SCREW

€ 2.50

92009A

920091251
ref: 92009A

SCREW,6X20,BLACK

€ 3.50

92009B

920091287
ref: 92009B

SCREW,6X14

€ 1.50

92009C

920091288
ref: 92009C

SCREW,6X14

€ 2.00

92009D

920091301
ref: 92009D

SCREW,5X16

€ 0.50

92015

920151183
ref: 92015

NUT,FLANGED,8MM,BLACK

€ 1.00

92015A

920151343
ref: 92015A

NUT,5MM,COWLING

€ 3.00

92015B

920151710
ref: 92015B

NUT

€ 4.00

92022

920221346
ref: 92022

WASHER,6.5X20X1.6,BLA

€ 0.50

92022A

920221521
ref: 92022A

WASHER,NYLON,5.3X11.5

€ 2.50

92027

920271134
ref: 92027

COLLAR,FUEL TANK FITT

€ 7.00

92027A

920271935
ref: 92027A

COLLAR,L=9.1,BLACK

€ 4.00

92075

920751492
ref: 92075

DAMPER,MIRROR

€ 5.00

92075A

920751634
ref: 92075A

DAMPER

€ 3.00

92075B

920751707
ref: 92075B

DAMPER,COWLING,LH

€ 10.00

92075C

920751745
ref: 92075C

DAMPER,MIRROR

€ 5.00

130

130C0625
ref: 130

BOLT-FLANGED,FLANGED,

€ 2.00

130A

130C0812
ref: 130A

BOLT-FLANGED,8X12,BLA

€ 0.50

130B

130C0816
ref: 130B

BOLT-FLANGED,8X16,BLA

€ 0.50

221

221C0630
ref: 221

SCREW-CSK-CROS,6X30

€ 1.00

92075D

920751759
ref: 92075D

DAMPER,COWLING,RH

€ 11.50

92160

921601007
ref: 92160

DAMPER

€ 3.50

all assemblies
