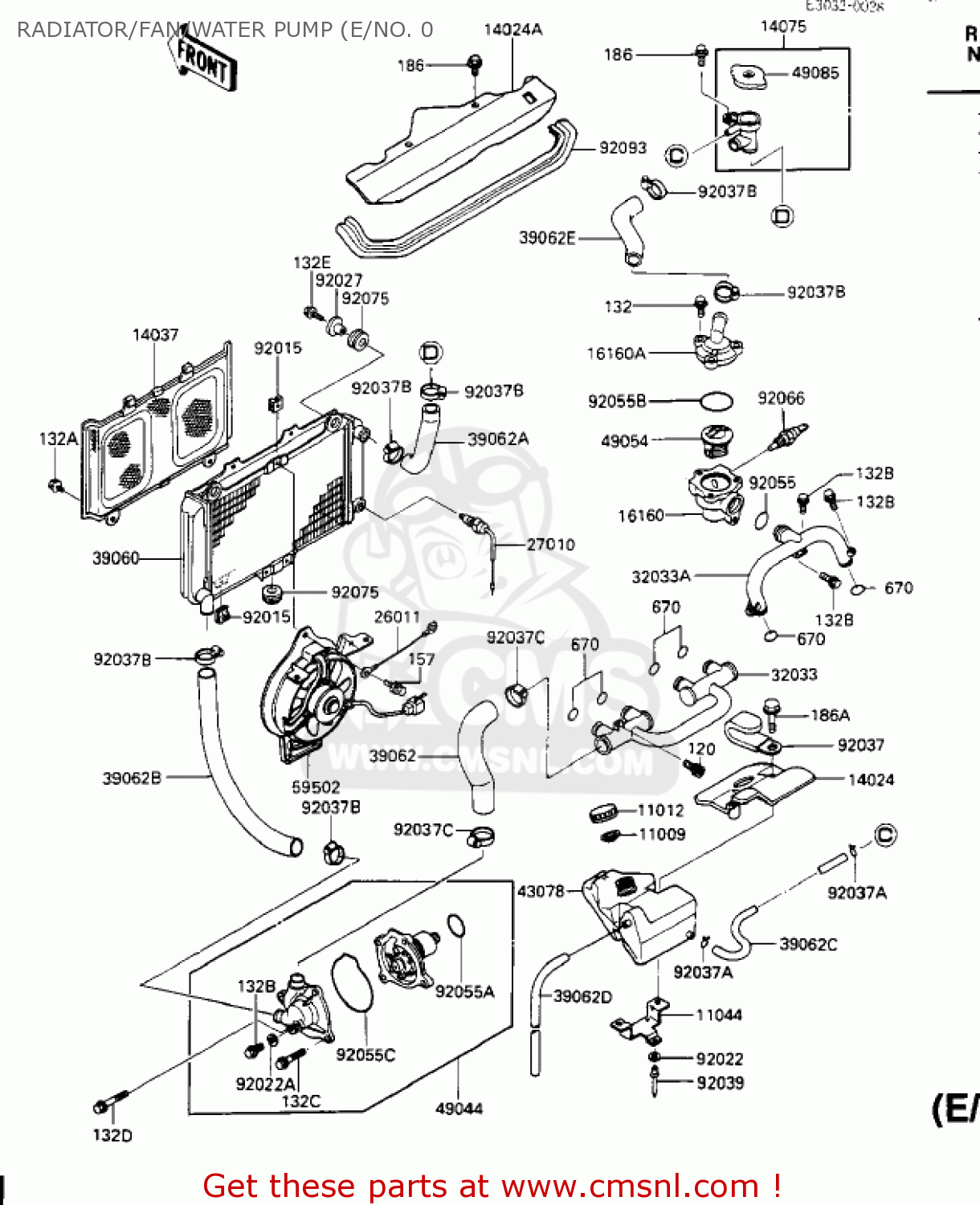

RADIATOR/FAN/WATER PUMP (E/NO. 0

ref

part #

description

quantity

11009

110091145
ref: 11009

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11012

110121084
ref: 11012

CAP

€ 1.50

11044

110441170
ref: 11044

BRACKET,RESERVOIR

€ 7.50

14024

140241090
ref: 14024

COVER,RESERVOIR

€ 8.50

14024A

140241137
ref: 14024A

COVER,RADIATOR

€ 15.50

14037

140371083
ref: 14037

SCREEN

€ 69.50

14075

140751061
ref: 14075

CAP-ASSY

€ 128.00

16160

161601092
ref: 16160

BODY,THERMOSTAT,LWR

€ 45.50

16160A

161601129
ref: 16160A

BODY,THERMOSTAT,UPP

€ 39.00

26011

260111360
ref: 26011

WIRE-LEAD,GROUND

€ 3.00

27010

270101180
ref: 27010

SWITCH,FAN

€ 104.50

32033

320331593
ref: 32033

PIPE

€ 91.50

32033A

320331594
ref: 32033A

PIPE

€ 72.00

39060

390601067
ref: 39060

RADIATOR

€ 557.00

39062

390621111
ref: 39062

HOSE-COOLING,PUMP-CYL

€ 21.00

39062A

390621113
ref: 39062A

HOSE-COOLING

€ 13.00

39062B

390621114
ref: 39062B

HOSE-COOLING

€ 24.50

39062C

390621269
ref: 39062C

HOSE-COOLING

€ 18.00

39062D

390621269
ref: 39062D

HOSE-COOLING

€ 18.00

39062E

390621130
ref: 39062E

HOSE-COOLING

€ 12.00

43078

430781062
ref: 43078

RESERVOIR

€ 32.50

49044

490441054
ref: 49044

PUMP-WATER

€ 288.50

49054

490541055
ref: 49054

THERMOSTAT

€ 39.50

49085

490851003
ref: 49085

CAP-ASSY-PRESSURE

€ 23.50

59502

595021057
ref: 59502

FAN-ASSY

€ 417.00

92015

920151487
ref: 92015

NUT

€ 3.00

92022

25009004
ref: 92022

WASHER,5.2X16X1.2T

€ 2.50

92022A

920221627
ref: 92022A

WASHER,6MM

€ 4.00

92027

920271134
ref: 92027

COLLAR,FUEL TANK FITT

€ 7.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

92037147
ref: 92037A

CLAMP,CHAIN OILER

€ 4.50

92037B

920371589
ref: 92037B

CLAMP,COOLING HOSE

€ 13.00

92037C

920371600
ref: 92037C

CLAMP,COOLING HOSE

€ 4.00

92039

920391038
ref: 92039

RIVET

€ 2.00

92055

920551081
ref: 92055

RING-O,FORK TOP

€ 3.00

92055A

920551266
ref: 92055A

RING-O,33.8MM

€ 12.00

92055B

920551279
ref: 92055B

RING-O,45MM

€ 4.50

92055C

920551315
ref: 92055C

RING-O,WATER PUMP

€ 8.00

92066

920661183
ref: 92066

PLUG,SENSOR WATER

€ 38.00

92075

921601007
ref: 92075

DAMPER

€ 3.50

92093

920931189
ref: 92093

SEAL,RADIATOR COVER

€ 16.50

120

120S0612
ref: 120

BOLT-SOCKET

€ 1.50

132

132E0620
ref: 132

BOLT-FLANGED-SMALL

€ 2.00

132A

132J0610
ref: 132A

BOLT-FLANGED-SMALL,6X

€ 1.50

132B

132J0612
ref: 132B

BOLT-FLANGED-SMALL

€ 2.50

132C

132J0625
ref: 132C

BOLT-FLANGED-SMALL

€ 2.50

132D

132J0645
ref: 132D

BOLT-FLANGED-SMALL

€ 3.00

132E

132J0825
ref: 132E

BOLT-FLANGED-SMALL

€ 2.50

157

157J0616
ref: 157

BOLT-WSP

€ 1.00

186

186C0614
ref: 186

BOLT-UPSET-WP

€ 2.50

186A

186C0650
ref: 186A

BOLT-UPSET-WP

€ 2.00

670

670B2016
ref: 670

O RING,16MM

€ 1.00
