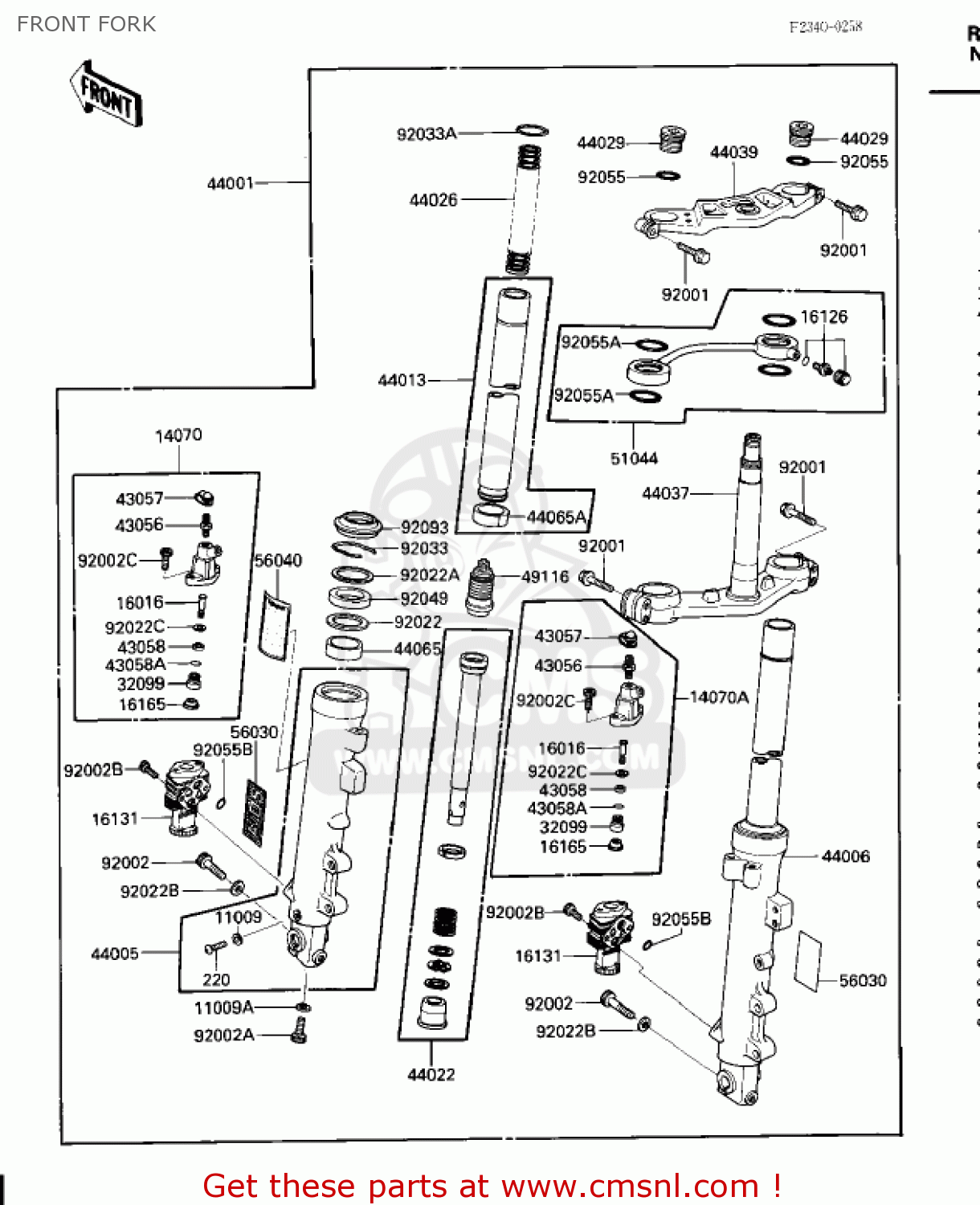

FRONT FORK

ref

part #

description

quantity

11009

44045002
ref: 11009

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

11009A

44045057
ref: 11009A

GASKET (NAS)

€ 3.00

14070

140701070
ref: 14070

BODY-BREATHER,ANTI-DI

€ 174.50

14070A

140701060
ref: 14070A

BODY-BREATHER,ANTI-DI

€ 174.50

16016

160161067
ref: 16016

PLUNGER,ANTI-DIVE

€ 23.00

16126

161261052
ref: 16126

VALVE,AIR

€ 22.00

16131

161311058
ref: 16131

BODY-VALVE,FORK,ANTI-

€ 133.00

16165

161651051
ref: 16165

SEPARATOR,ANTI-DIVE

€ 6.00

32099

320991067
ref: 32099

CASE,PLUG,ANTI-DIVE

€ 29.00

43056

43056003
ref: 43056

BREATHER-BRAKE

€ 16.50

43057

43057003
ref: 43057

CAP-BREATHER

€ 3.00

43058

430581052
ref: 43058

RING,SEAL,14X18X2.5

€ 3.50

43058A

430581053
ref: 43058A

RING,SEAL,6.2X11X3.2

€ 2.50

44001

440011661
ref: 44001

FORK FRONT

€ 2,405.50

44005

440051232
ref: 44005

PIPE-LEFT FORK OUTER

€ 285.00

44006

440061232
ref: 44006

PIPE-RIGHT FORK OUTER

€ 243.50

44013

440131231
ref: 44013

PIPE-FORK INNER

€ 134.00

44022

440221181
ref: 44022

CYLINDER-FORK

€ 77.00

44026

440261302
ref: 44026

SPRING-FRONT FORK,K=0

€ 56.00

44029

440291121
ref: 44029

SEAT-FORK SPRING

€ 24.00

44037

440371180
ref: 44037

HOLDER-FORK UNDER

€ 195.00

44039

440391157
ref: 44039

HOLDER-FORK UPPER

€ 102.00

44065

440651051
ref: 44065

BUSHING-FRONT FORK

€ 15.00

44065A

440651058
ref: 44065A

BUSHING-FRONT FORK,IN

€ 20.00

49116

491161058
ref: 49116

VALVE-ASSY,FORK

€ 80.00

51044

510441069
ref: 51044

TUBE-ASSY

€ 73.50

56030

560301057
ref: 56030

LABEL,AVDS MARK

€ 2.50

56040

560401117
ref: 56040

LABEL-WARNING,SHOCKAB

€ 2.50

92001

920011188
ref: 92001

BOLT,8X40

€ 5.50

92002

920021316
ref: 92002

BOLT

€ 3.50

92002A

920021317
ref: 92002A

BOLT

€ 4.50

92002B

920021564
ref: 92002B

BOLT

€ 5.50

92002C

920021565
ref: 92002C

BOLT

€ 6.00

92022

920221455
ref: 92022

WASHER,FORK OUTER PIP

€ 4.50

92022A

920221524
ref: 92022A

WASHER,FORK OUTER PIP

€ 3.50

92022B

920221598
ref: 92022B

WASHER

€ 4.50

92022C

920221636
ref: 92022C

WASHER,6.5X18X1

€ 2.50

92033

920331047
ref: 92033

SNAP RING,FORK OUTER

€ 4.00

92033A

920331202
ref: 92033A

RING-SNAP

€ 4.50

92049

920491372
ref: 92049

SEAL-OIL,FORK OUTER T

€ 15.00

92055

920551051
ref: 92055

ORING,FORK TOP CAP

€ 3.50

92055A

920551164
ref: 92055A

RING-O,TUBE ASSY

€ 5.50

92055B

920551201
ref: 92055B

RING-O,AND

€ 1.00

92093

920931314
ref: 92093

SEAL,FORK OUTER TUBE

€ 16.50

220

220E0408
ref: 220

SCREW-PAN HEAD,4X8

€ 2.50

all assemblies
