SEAT

ZX500C3 ZZR500 1992 AUSTRIA

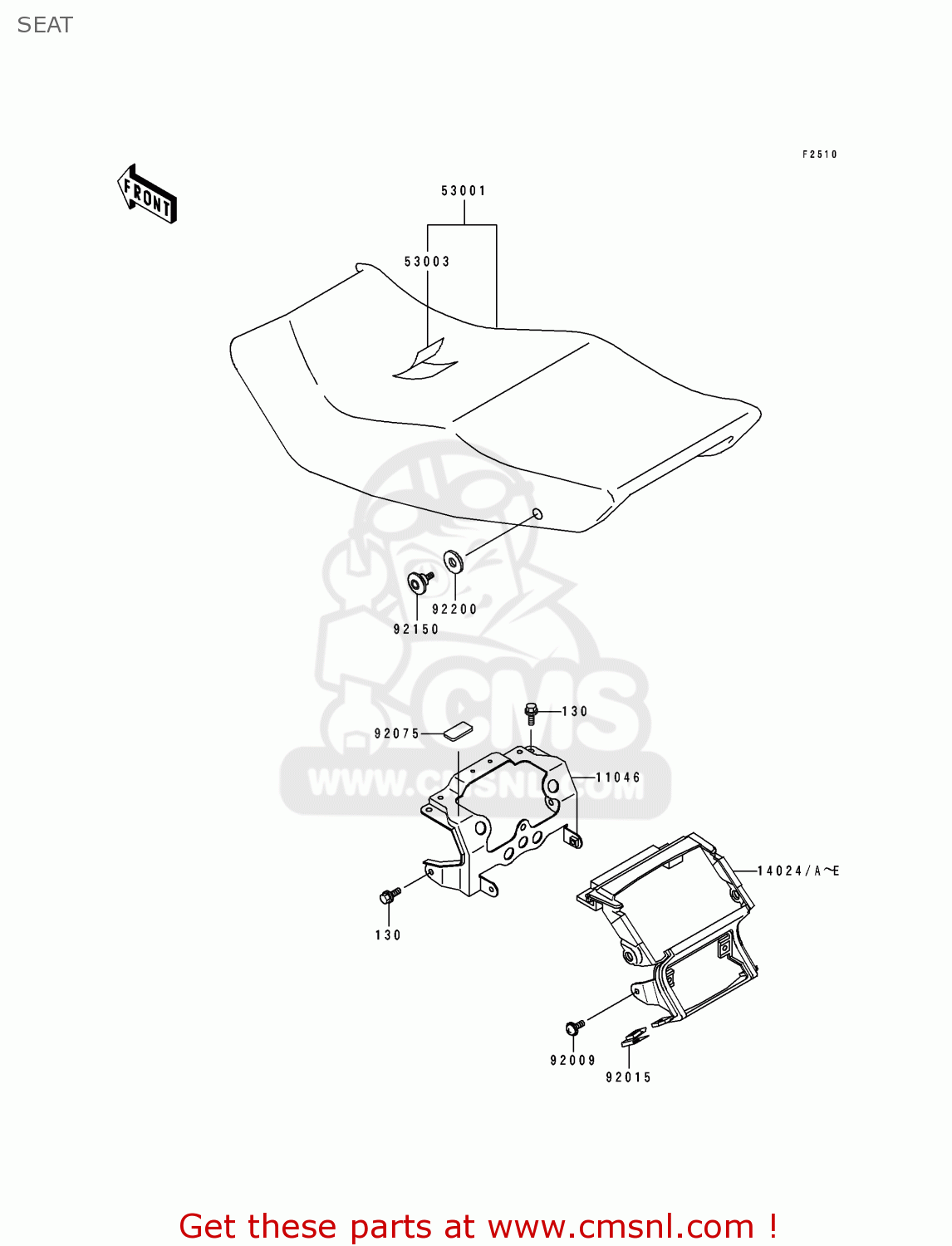

Seat diagram ZX500C3 ZZR500 1992 AUSTRIA

SEAT ZX500C3 ZZR500 1992 AUSTRIA

SEAT ZX500C3 ZZR500 1992 AUSTRIA

prices are in EUR

ref

part #

description

quantity

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

11046

110461950
ref: 11046

BRACKET,TAIL

€ 33.50

14024

140241897B1
ref: 14024

COVER,TAIL,F.RED

€ 90.00

14024D

140241897TC
ref: 14024D

COVER,TAIL,BLUE/ROSE

€ 94.50

14024E

140241897T2
ref: 14024E

COVER,TAIL,P.C.GRAY

€ 68.50

53001

530011601MA
ref: 53001

SEAT-ASSY,DUAL,BLACK

€ 314.00

53003

530031237MA
ref: 53003

LEATHER,SEAT,BLACK

€ 72.50

92009

920091288
ref: 92009

SCREW,6X14

€ 2.00

92015

920151798
ref: 92015

NUT

€ 4.50

92075

920751883
ref: 92075

DAMPER

€ 2.50

92150

921501154
ref: 92150

BOLT,SOCKET,6MM

€ 5.00

92200

922001013
ref: 92200

WASHER,10.3X20X1

€ 3.00
