CYLINDER HEAD COVER
ZX500C3 ZZR500 1992 AUSTRIA

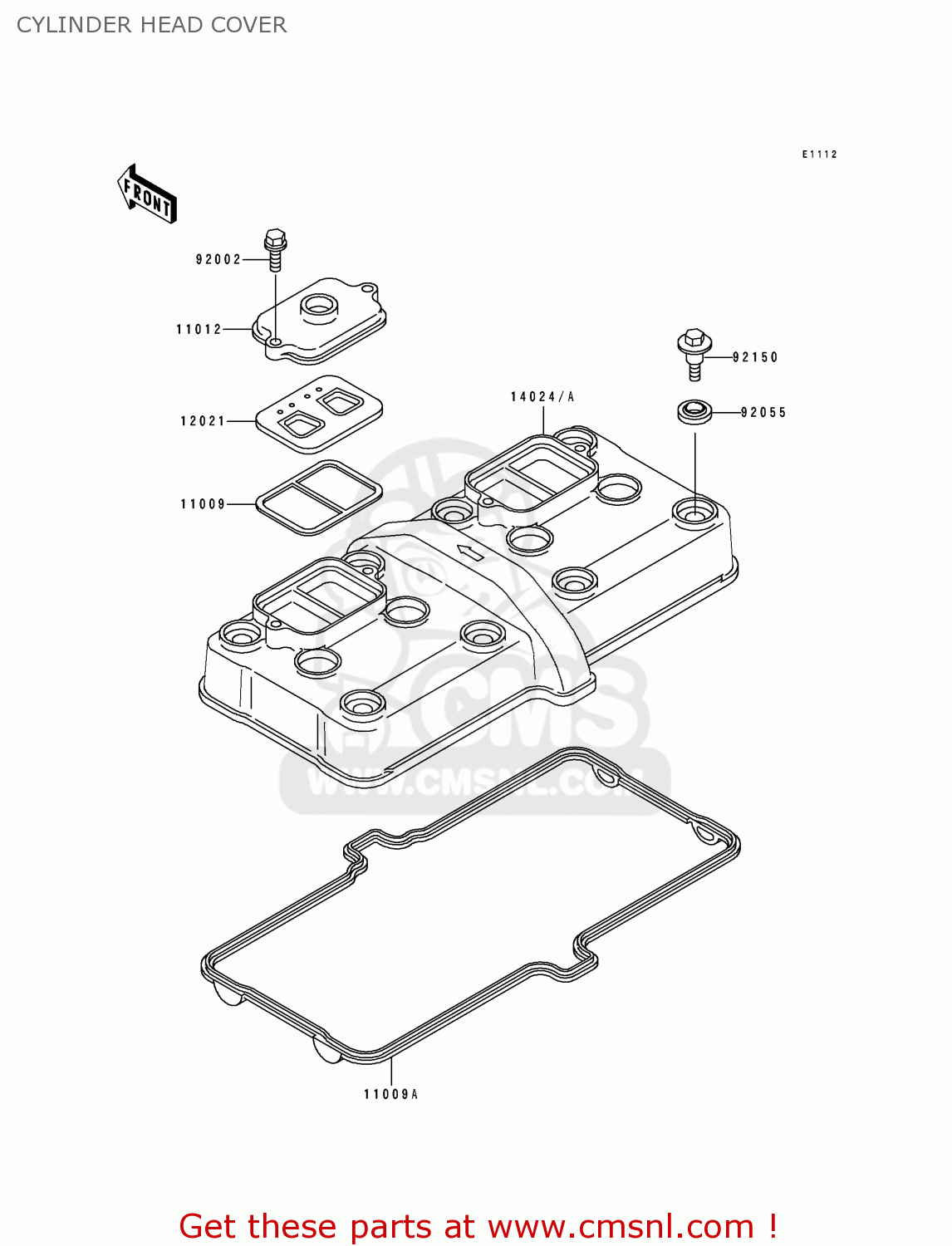

Cylinder head cover diagram ZX500C3 ZZR500 1992 AUSTRIA
CYLINDER HEAD COVER ZX500C3 ZZR500 1992 AUSTRIA
×
prices are in EUR
ref
part #
description
quantity
11009
110091857
ref: 11009
GASKET,REED VALVE (NAS)
€ 6.00
11009A
110091991
ref: 11009A
GASKET,HEAD COVER (NAS)
€ 42.00
11012
110121758
ref: 11012
CAP,REED VALVE
€ 18.00
12021
120211053
ref: 12021
VALVE-ASSY-REED
€ 50.50
14024
140241875
ref: 14024
COVER,HEAD
€ 324.50
92002
920021237
ref: 92002
BOLT,6X20
€ 2.50
92055
920551352
ref: 92055
RING-O,HEAD COVER BOL
€ 7.00
92150
921501447
ref: 92150
BOLT
€ 3.00
