GEAR CHANGE MECHANISM
ZX500A3 1987 NORWAY AR / KPH

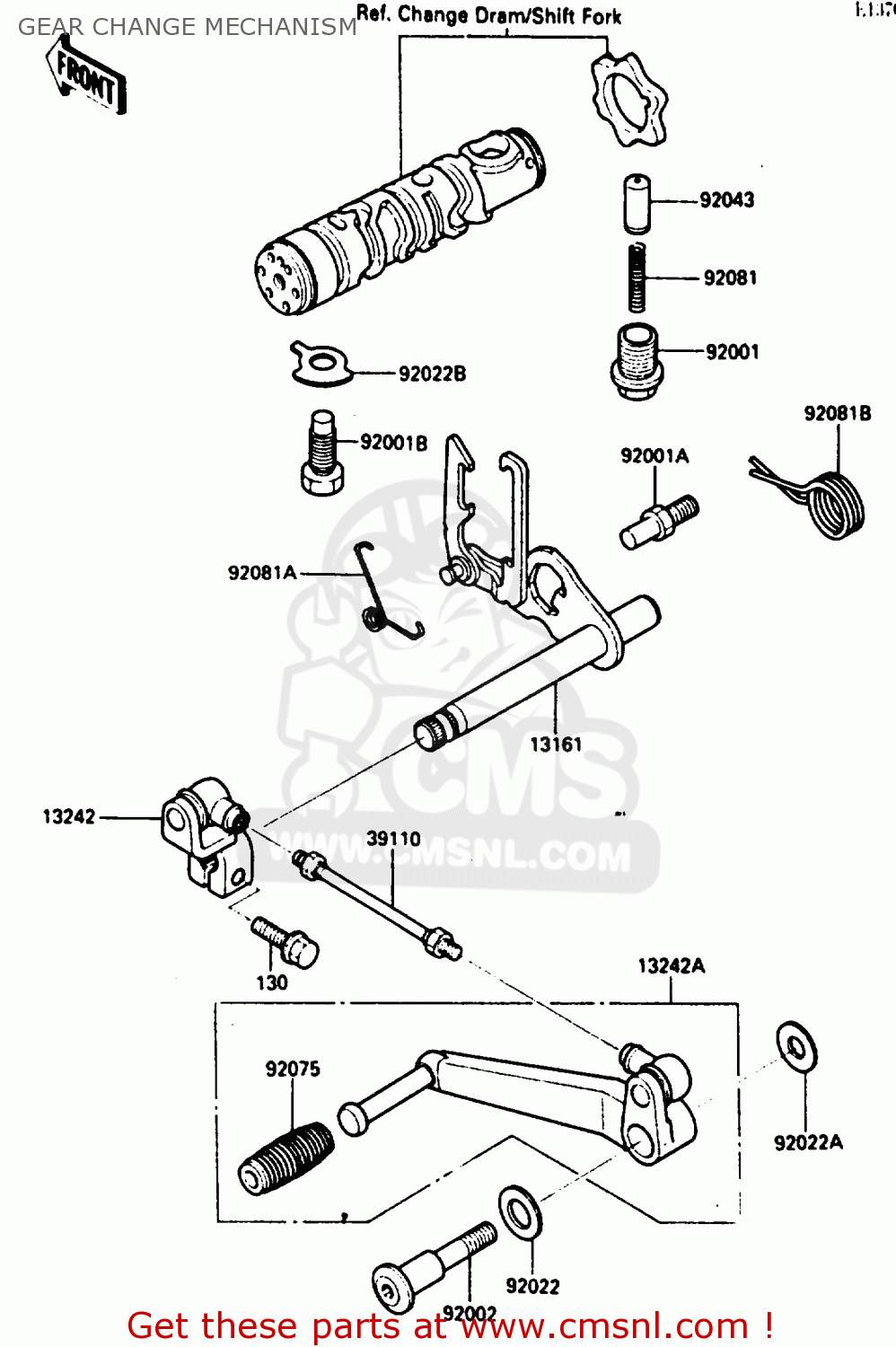

Gear change mechanism diagram ZX500A3 1987 NORWAY AR / KPH
GEAR CHANGE MECHANISM ZX500A3 1987 NORWAY AR / KPH
×
prices are in EUR
ref
part #
description
quantity
13161
13161042
ref: 13161
LEVER-COMP-CHANGE SHA
€ 102.50
13242
132421190
ref: 13242
LEVER-ASSY-CHANGE,BOS
€ 21.00
13242A
132421191
ref: 13242A
LEVER-ASSY-CHANGE,PED
€ 42.00
39110
391101010
ref: 39110
ROD-ASSY-TIE,CHANGE L
€ 9.00
92001
920011037
ref: 92001
BOLT,NEUTAL POSITION
€ 9.50
92001A
920011401
ref: 92001A
BOLT,RETURN SPRING
€ 3.00
92001B
92001174
ref: 92001B
BOLT, HEX HEAD, 10X26
€ 4.50
92002
920021773
ref: 92002
BOLT,CHANE PEDAL
€ 15.50
92022
92022072
ref: 92022
WASHER,12.5X22X1.2
€ 2.50
92022A
920221741
ref: 92022A
WASHER,8.3X21X5.0
€ 2.00
92022B
92024074
ref: 92022B
WASHER,LOCK,10MM
€ 2.50
92043
92043076
ref: 92043
PIN-NEUTRAL PISTON
€ 8.00
92075
13157007
ref: 92075
RUBBER, SHIFT PEDAL
€ 3.50
92081
92081112
ref: 92081
SPRING
€ 4.00
92081A
92083018
ref: 92081A
SPRING-KICK PAWL
€ 6.00
92081B
92083028
ref: 92081B
SPRING,CHG PEDL RTRN
€ 9.50
130
130B0620
ref: 130
BOLT,HEX HEAD,6X20
€ 2.50
