BRAKE PEDAL

ZX500A3 1987 NORWAY AR / KPH

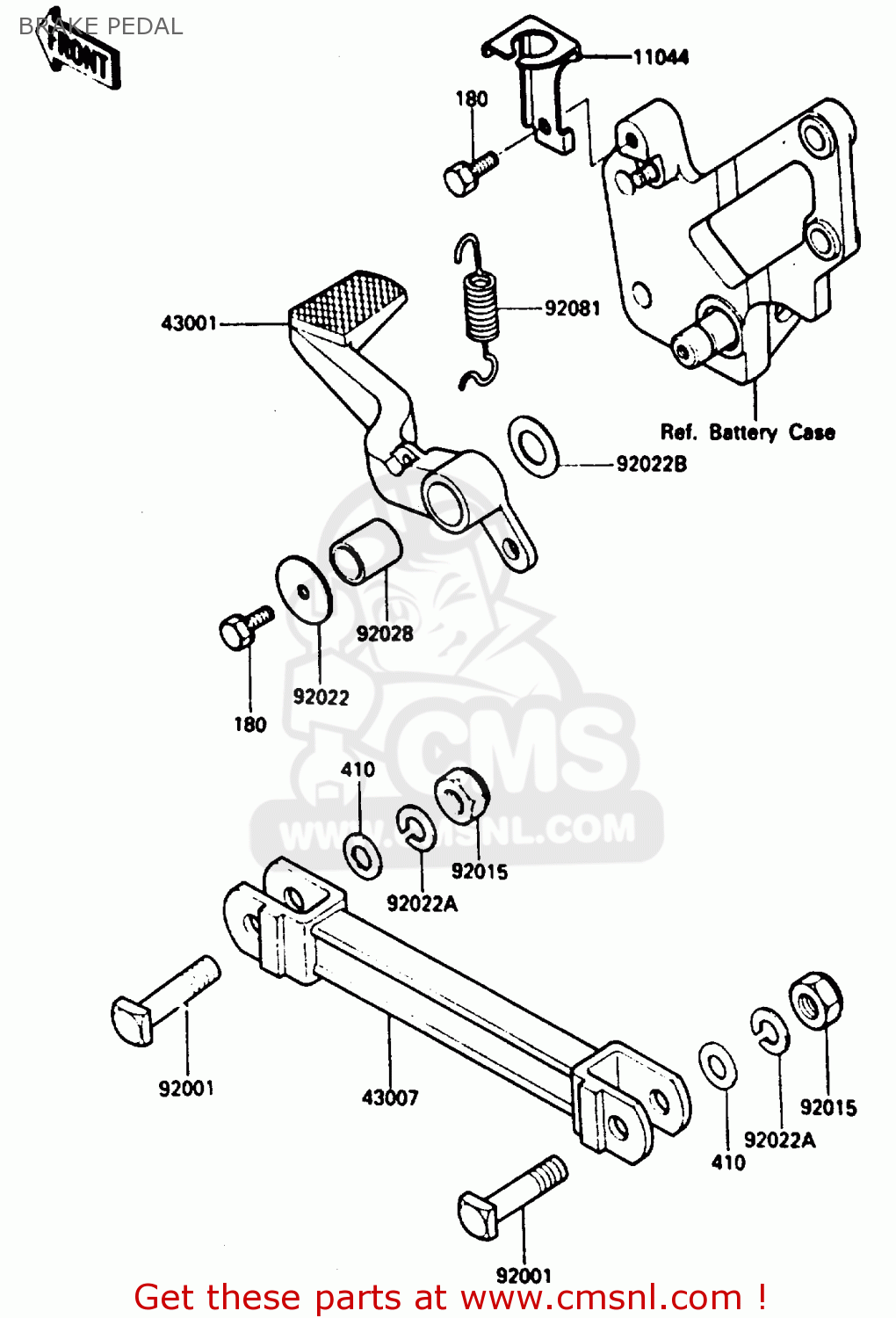

Brake pedal diagram ZX500A3 1987 NORWAY AR / KPH

prices are in EUR

ref

part #

description

quantity

11044

110441107
ref: 11044

BRACKET,RR BRAKE SWIT

€ 6.50

43001

430011190
ref: 43001

LEVER-BRAKE,PEDAL

€ 31.50

43007

430071115
ref: 43007

ROD-TORQUE

€ 59.50

92001

920011307
ref: 92001

BOLT,SQUARE HEAD

€ 4.50

92019

92019021
ref: 92019

NUT,LOCK,10M/M

€ 2.00

92022

920221282
ref: 92022

WASHER,7X28X1.6

€ 3.00

92022A

920221540
ref: 92022A

WASHER,SPRING,10MM

€ 2.50

92022B

92022326
ref: 92022B

WASHER,15.3X24X1

€ 2.50

92028

920281282
ref: 92028

BUSHING,BRAKE PEDAL

€ 9.50

92081

920811833
ref: 92081

SPRING,BRAKE PEDAL

€ 7.00

180

180B0616
ref: 180

BOLT-UPSET-WS

€ 0.50

410

410B1000
ref: 410

WASHER-PLAIN-SMALL,10

€ 0.50
