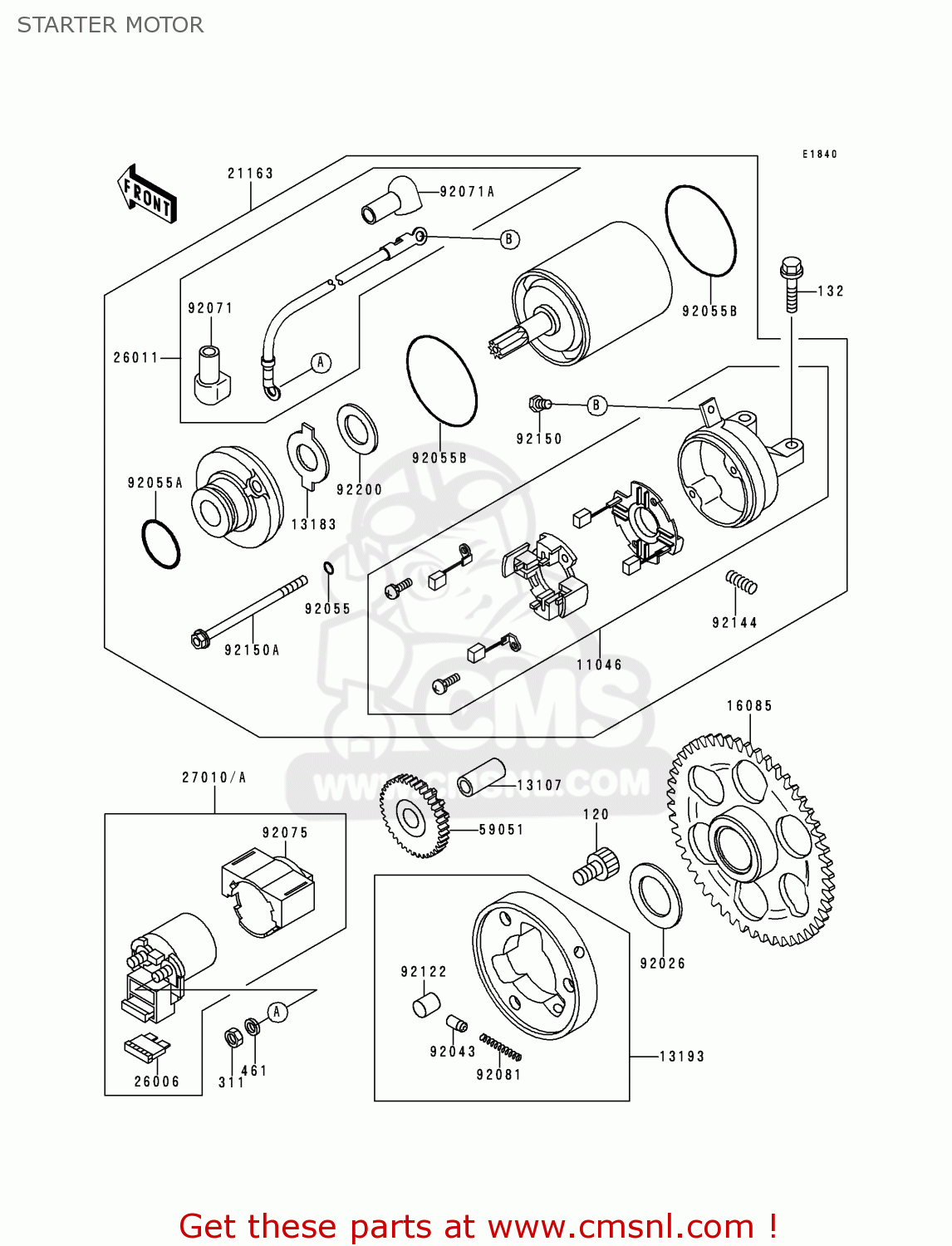

STARTER MOTOR

ref

part #

description

quantity

120

120P0814
ref: 120

BOLT-SOCKET,8X14

€ 3.00

132

132J0625
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

311

311B0600
ref: 311

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

11046

110461794
ref: 11046

BRACKET,STARTER MOTOR

€ 175.00

13107

131071176
ref: 13107

SHAFT,7.8X12X26.5

€ 6.50

13183

131831460
ref: 13183

PLATE

€ 9.00

13193

131931002
ref: 13193

CLUTCH-ASSY-ONEWAY

€ 96.00

16085

160851166
ref: 16085

GEAR,ONEWAY CLUTCH,65

€ 121.00

21163

211631148
ref: 21163

STARTER-ELECTRIC

€ 479.50

26006

260061006
ref: 26006

FUSE,30A-G

€ 3.00

26011

260111455
ref: 26011

WIRE-LEAD,STARTER MOT

€ 47.50

27010

270101213
ref: 27010

SWITCH,MAGNETIC

€ 111.00

59051

590511200
ref: 59051

GEAR-SPUR,IDLE,48T&14

€ 57.00

92026

920261285
ref: 92026

SPACER,25.2X40X1.0

€ 4.00

92043

92043132
ref: 92043

PIN

€ 4.00

92055

920551261
ref: 92055

RING-O,4.5MM

€ 2.00

92055A

920551262
ref: 92055A

RING-O,24.4X3.1

€ 8.50

92055B

920551455
ref: 92055B

RING-O

€ 9.50

92071

920711121
ref: 92071

GROMMET,TERMINAL

€ 8.00

92071A

920711182
ref: 92071A

GROMMET,TERMINAL

€ 8.00

92075

920751863
ref: 92075

DAMPER,MAGNETIC SWITC

€ 14.00

92081

92081159
ref: 92081

SPRING, COIL

€ 2.50

92122

92122006
ref: 92122

ROLLER

€ 4.00

92144

921441423
ref: 92144

SPRING,BRUSH

€ 3.00

92150

921501305
ref: 92150

BOLT

€ 3.00

92150A

921501326
ref: 92150A

BOLT

€ 12.50

92200

922001019
ref: 92200

WASHER

€ 5.00
