CARBURETOR PARTS

ZX400L8 ZXR400 1998 UNITED KINGDOM NL AR FG IT

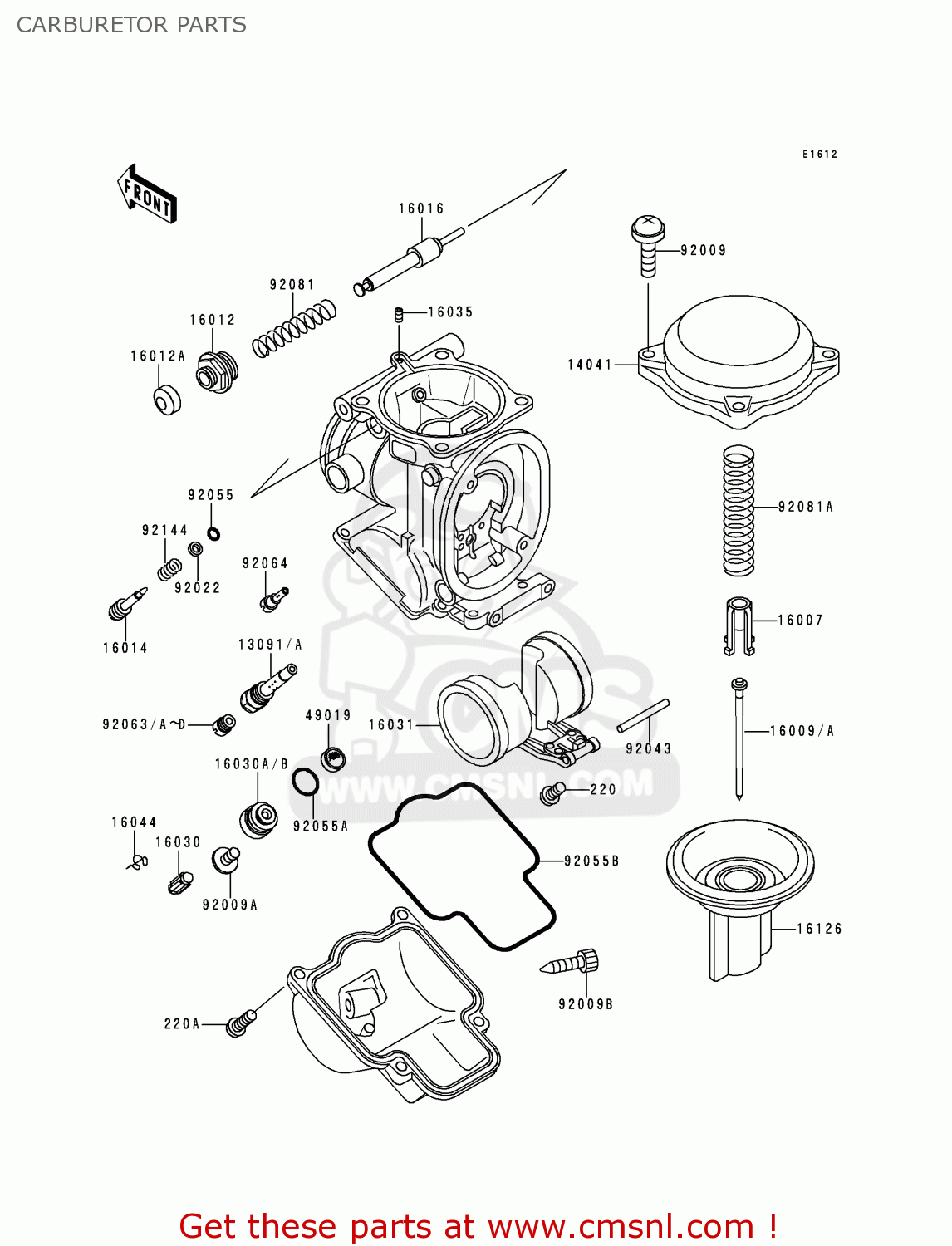

Carburetor parts diagram ZX400L8 ZXR400 1998 UNITED KINGDOM NL AR FG IT

CARBURETOR PARTS ZX400L8 ZXR400 1998 UNITED KINGDOM NL AR FG IT
CARBURETOR PARTS ZX400L8 ZXR400 1998 UNITED KINGDOM NL AR FG IT
CARBURETOR PARTS ZX400L8 ZXR400 1998 UNITED KINGDOM NL AR FG IT
prices are in EUR
ref
part #
description
quantity
13091A
130911800
ref: 13091A
ITNLUK
HOLDER,NEEDLE JET
130911800
€ 18.50
14041
140411090
ref: 14041
ITNLUK
CAP-CHAMBER,MIXING
€ 46.00
16007
160071120
ref: 16007
ITNLUK
SEAT-SPRING
160071120
€ 16.50
16009A
160091686
ref: 16009A
ITNLUK
NEEDLE-JET,N77S
160091686
€ 26.50
16012
160121051
ref: 16012
ITNLUK
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
ITNLUK
CAP-STARTER PLUNGER
160121052
€ 10.00
16014
160141064
ref: 16014
ITNLUK
SCREW-PILOT AIR
160141064
€ 17.00
16016
160161061
ref: 16016
ITNLUK
PLUNGER,STARTER
160161061
€ 30.50
16030
160301007
ref: 16030
ITNLUK
FLOAT VALVE ASSY
160301007
€ 37.00
16030B
160301072
ref: 16030B
ITNLUK
SEAT-VALVE,FLOAT
160301072
€ 40.50
16031
160311070
ref: 16031
ITNLUK
FLOAT
160311070
€ 40.50
16035
160351055
ref: 16035
ITNLUK
JET-AIR,LEAK
160351055
€ 10.00
16044
16044007
ref: 16044
ITNLUK
CLIP, FLOAT VALVE
16044007
€ 4.00
16126
161261226
ref: 16126
ITNLUK
VALVE,VACUUM
161261226
€ 152.00
49019
490193707
ref: 49019
ITNLUK
FILTER-FUEL,STRAINER
490193707
€ 7.00
92009
920091549
ref: 92009
ITNLUK
SCREW,4X4.4
920091549
€ 3.00
92009A
920091550
ref: 92009A
ITNLUK
SCREW,4X8
920091550
€ 2.50
220
220D0408
ref: 220
ITNLUK
SCREW-PAN-CROS
220D0408
€ 0.50
220A
220D0414
ref: 220A
ITNLUK
SCREW-PAN-CROS
220D0414
€ 2.00
92009B
920091551
ref: 92009B
ITNLUK
SCREW,DRAIN
920091551
€ 6.50
92022
920221003
ref: 92022
ITNLUK
WASHER,PLAIN
920221003
€ 2.50
92043
920431207
ref: 92043
ITNLUK
PIN,FLOAT
920431207
€ 6.00
92055
920551002
ref: 92055
ITNLUK
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551425
ref: 92055A
ITNLUK
RING-O,VALVE SEAT
920551425
€ 4.50
92055B
920551426
ref: 92055B
ITNLUK
RING-O,FLOAT CHAMBER
920551426
€ 13.00
92063
920631001
ref: 92063
ITNLUK
JET-MAIN,#95
920631001
€ 10.00
92063A
920631003
ref: 92063A
ITNLUK
MAIN JET, 2ND, # 90
920631003
€ 9.50
92063B
920631004
ref: 92063B
ITNLUK
JET-MAIN,#92
920631004
€ 10.00
92063C
920631005
ref: 92063C
ITNLUK
JET-MAIN,#98
920631005
€ 10.00
92063D
920631008
ref: 92063D
ITNLUK
JET-MAIN,#100
920631008
€ 9.00
92064
920641101
ref: 92064
ITNLUK
JET-PILOT,#35
920641101
€ 11.50
92081
920811761
ref: 92081
ITNLUK
SPRING,STARTER PLUNGE
920811761
€ 6.00
92081A
920811925
ref: 92081A
ITNLUK
SPRING,VACUUM VALVE
920811925
€ 16.00
92144
921441349
ref: 92144
ITNLUK
SPRING,PILOT AIR SCRE
921441349
€ 6.00
