REAR HUB

ZX400C5 Z400FII 1994 EUROPE

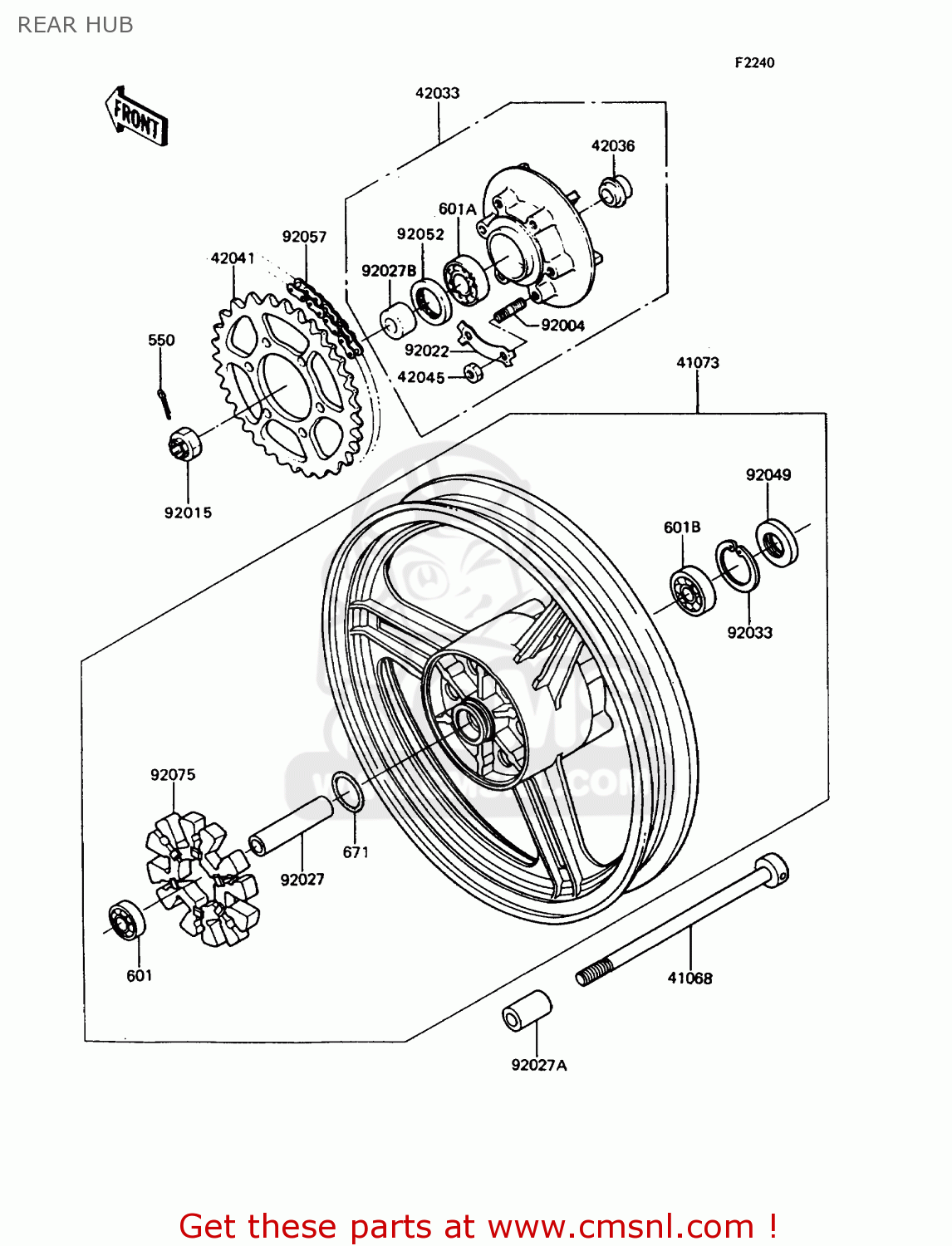

Rear hub diagram ZX400C5 Z400FII 1994 EUROPE

REAR HUB ZX400C5 Z400FII 1994 EUROPE
REAR HUB ZX400C5 Z400FII 1994 EUROPE
REAR HUB ZX400C5 Z400FII 1994 EUROPE
prices are in EUR
ref
part #
description
quantity
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6203ZZ
ref: 601
BEARING-BALL,#6203ZZC
601B6203ZZ
€ 16.50
601A
601B6205G
ref: 601A
BEARING BALL
601B6205G
€ 14.00
601B
601B6303ZZ
ref: 601B
BEARING-BALL,#6303ZZC
601B6303ZZ
€ 32.50
671
671B2550
ref: 671
O RING,50MM
671B2550
€ 1.50
41068
410681086
ref: 41068
AXLE,RR
410681086
€ 49.00
41073
41073157497
ref: 41073
WHEEL-ASSY,RR,GRAY NO
€ 699.00
42033
420331053
ref: 42033
COUPLING-ASSY
€ 164.00
42036
420361055
ref: 42036
SLEEVE,L=25
420361055
€ 19.00
42041
420411130
ref: 42041
SPROCKET-HUB,42T
420411130
€ 39.00
42045
42045005
ref: 42045
NUT,10MM
42045005
€ 5.00
92004
920041062
ref: 92004
STUD,10X18
920041062
€ 5.00
92015
92015055
ref: 92015
NUT,16MM
92015055
€ 8.00
92022
920221212
ref: 92022
WASHER,LOCK
920221212
€ 4.00
92027
920271545
ref: 92027
COLLAR,17X25X92
920271545
€ 14.00
92027A
920271569
ref: 92027A
COLLAR,17X28X32
920271569
€ 12.00
92027B
920271661
ref: 92027B
COLLAR,L=21
920271661
€ 19.50
92033
920331042
ref: 92033
CIRCLIP,47M/M
920331042
€ 4.00
92049
920491056
ref: 92049
OIL SEAL,BJN28475
920491056
€ 8.50
92052
92052006
ref: 92052
OIL SEAL WTC35527
92052006
€ 6.50
92057
920571288
ref: 92057
CHAIN,DRIVE,EK520SX-O
€ 107.50
92075
920751436
ref: 92075
DAMPER,RR HUB SHOCK
920751436
€ 65.00
