HEADLIGHT(S)
ZX400C5 Z400FII 1994 EUROPE

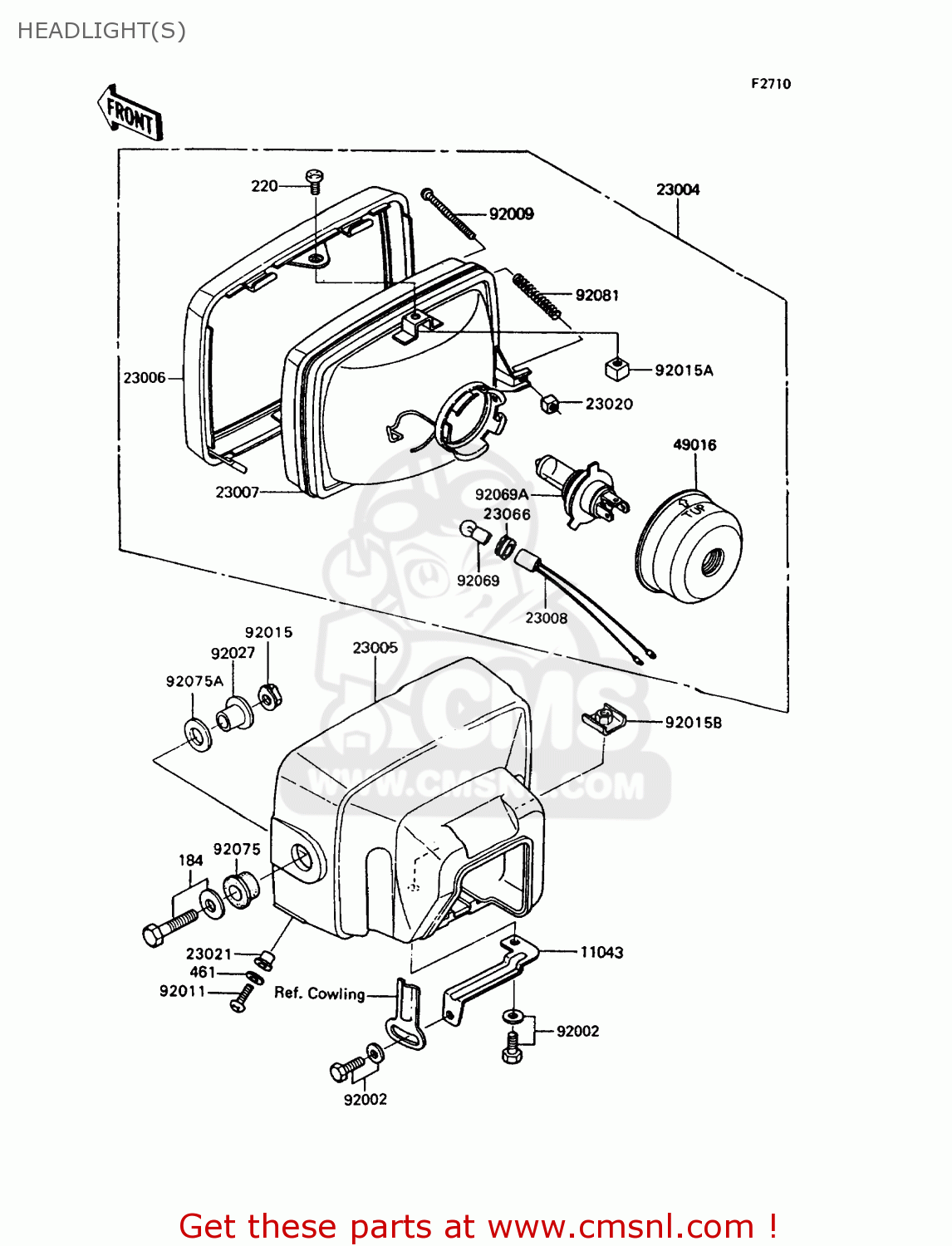

Headlight(s) diagram ZX400C5 Z400FII 1994 EUROPE
HEADLIGHT(S) ZX400C5 Z400FII 1994 EUROPE
×
prices are in EUR
ref
part #
description
quantity
184
184C0835
ref: 184
BOLT-UPSET-WP-SMALL
€ 2.50
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
11043
110431640
ref: 11043
BRACKET,HEAD LAMP
€ 8.50
23004
230041111
ref: 23004
LAMP-HEAD
€ 567.50
23005
2300510516Z
ref: 23005
BODY-COMP-HEAD LAMP
€ 88.50
23006
230061022
ref: 23006
RIM-LAMP,HEAD
€ 60.00
23007
230071051
ref: 23007
LENS-COMP,001-2722 MA
€ 153.00
23008
23008038
ref: 23008
SOCKET-ASSY,PARKING L
€ 7.50
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
€ 3.00
23021
23021010
ref: 23021
WASHER
€ 2.50
23066
23066008
ref: 23066
DAMPER,PARKING LAMP
€ 3.00
49016
490161046
ref: 49016
COVER-SEAL,HEAD LAMP
€ 7.50
92002
920021260
ref: 92002
BOLT,6X14
€ 0.50
92009
920091033
ref: 92009
SCREW,FOCUS ADJUSTING
€ 3.50
92011
92011024
ref: 92011
SCREW-PAN HEAD,5MM
€ 2.00
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92015A
920151157
ref: 92015A
NUT,5MM
€ 3.50
92015B
920151231
ref: 92015B
NUT,6MM,HEAD LAMP
€ 6.50
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
€ 6.00
92069
92069071
ref: 92069
BULB,12V 4W
€ 4.50
92069A
920691002
ref: 92069A
BULB,12V-60155W
€ 15.00
92075
920751109
ref: 92075
DAMPER,HEAD LAMP FITT
€ 4.00
92075A
920751110
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 3.00
92081
920811103
ref: 92081
SPRING,HEAD LAMP LENS
€ 3.00
