CRANKSHAFT
ZX400C3 1987 UNITED KINGDOM SP ST

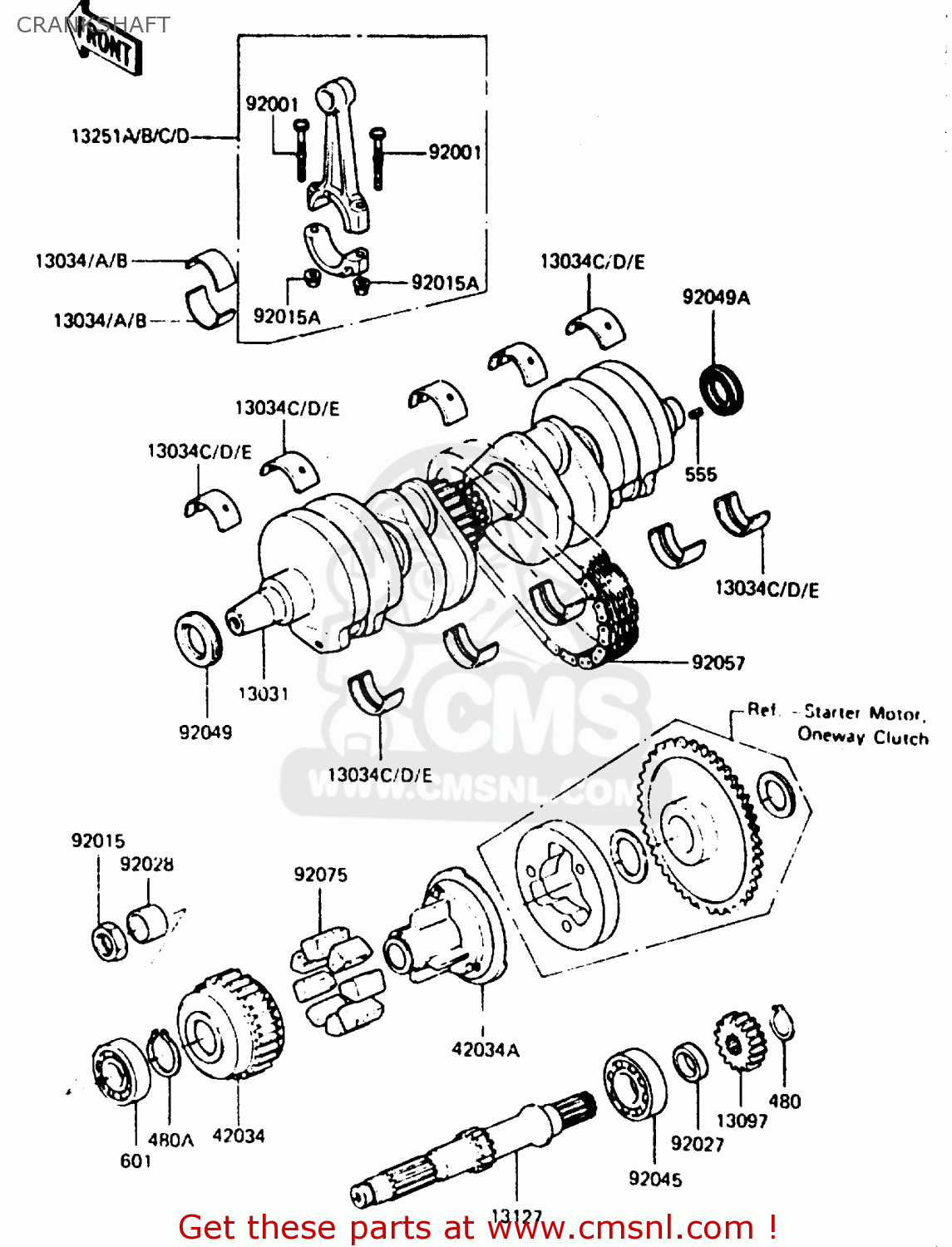

Crankshaft diagram ZX400C3 1987 UNITED KINGDOM SP ST
CRANKSHAFT ZX400C3 1987 UNITED KINGDOM SP ST
×
prices are in EUR
ref
part #
description
quantity
13031
130311091
ref: 13031
CRANKSHAFT-COMP
€ 954.50
13034
130341004
ref: 13034
METAL,CONNECTING ROD
€ 13.00
13034A
130341005
ref: 13034A
METAL,CONNECTING ROD
€ 13.00
13034B
130341006
ref: 13034B
METAL,CONNECTING ROD
€ 13.00
13034C
130341016
ref: 13034C
METAL,CRANKSHAFT,BROW
€ 13.00
13034D
130341017
ref: 13034D
METAL,CRANKSHAFT,BLAC
€ 13.00
13034E
130341018
ref: 13034E
METAL,CRANKSHAFT,BLUE
€ 13.00
13097
130971012
ref: 13097
GEAR,PRIMARY,24T
€ 76.00
13127
131271007
ref: 13127
SHAFT,SECONDARY
€ 162.00
13251
ref: 13251
13251A
132511010EE
ref: 13251A
ROD-ASSY-CONNECTING
€ 242.50
13251B
132511010FF
ref: 13251B
ROD-ASSY-CONNECTING
€ 242.50
13251C
132511010GG
ref: 13251C
ROD-ASSY-CONNECTING
€ 242.50
13251D
132511010HH
ref: 13251D
ROD-ASSY-CONNECTING
€ 242.50
42034
420341004
ref: 42034
COUPLING,OUTER,SECOND
€ 109.00
42034A
420341005
ref: 42034A
COUPLING,INNER,SECOND
€ 121.00
92001
920011793
ref: 92001
BOLT, CONNECTING ROD
€ 5.50
92015
92015019
ref: 92015
NUT,18MM
€ 4.00
92015A
920151527
ref: 92015A
NUT,CONNECTING ROD,8M
€ 3.50
92027
920271438
ref: 92027
COLLAR,22X34X7.3
€ 4.00
92028
920281037
ref: 92028
BUSHING,20X25X16.6
€ 16.00
92045
920451017
ref: 92045
BEARING-BALL,#63/22X
€ 32.50
92049
920491013
ref: 92049
OIL SEAL,HSCY25X36X7
€ 8.00
92049A
92050081
ref: 92049A
OIL SEAL, HSCY 25397
€ 8.00
92057
920571011
ref: 92057
CHAIN,PRIMARY DRIVE
€ 46.50
92075
920751070
ref: 92075
DAMPER,COUPLING
€ 4.50
480
480J2200
ref: 480
CIRCLIP-TYPE-C,22MM
€ 3.00
480A
480J2800
ref: 480A
CIRCLIP-TYPE-C,28MM
€ 3.50
555
555A0408
ref: 555
PIN-SPRING,4X8
€ 2.50
601
601B6205
ref: 601
BEARING-BALL,#6205C3
€ 14.00
