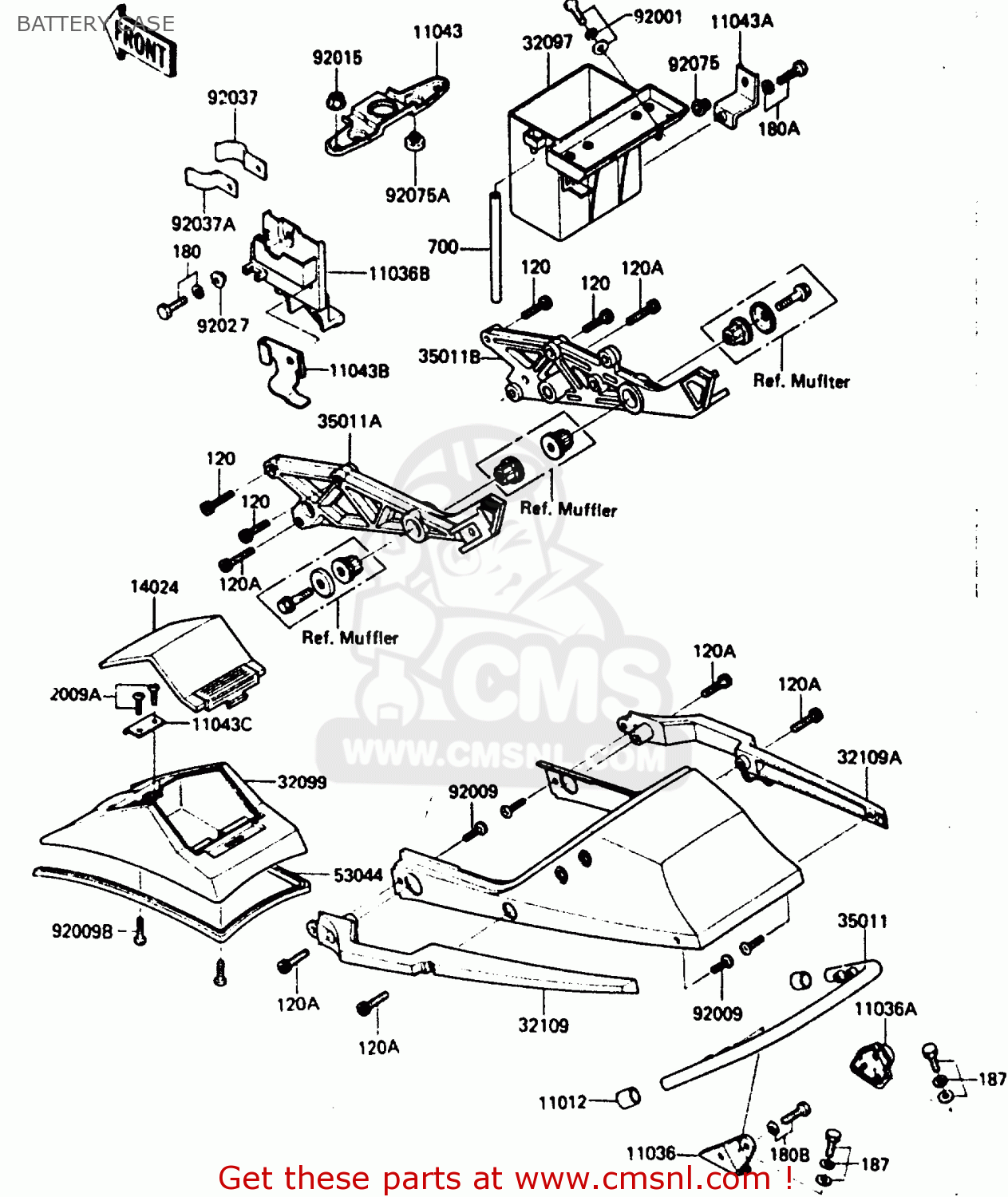

BATTERY CASE

ref

part #

description

quantity

11012

110121290
ref: 11012

CAP,RR STAY END

€ 3.00

11036

110361946
ref: 11036

BRACKET-A,REAR STAY,L

€ 10.50

11036A

110361947
ref: 11036A

BRACKET-A,REAR STAY,R

€ 10.50

11036B

110361948
ref: 11036B

BRACKET-A,ELECTRIC BA

€ 14.00

11043

110431035
ref: 11043

BRACKET-B,BATTERY

€ 13.50

11043A

110431218
ref: 11043A

BRACKET-B,IGNITER

€ 9.00

11043B

110431368
ref: 11043B

BRACKET,BATTERY

€ 5.50

11043C

110431702
ref: 11043C

BRACKET,HINGE

€ 6.00

14024

140251885
ref: 14024

COVER,CASE

€ 9.00

32097

320971068
ref: 32097

CASE-BATTERY

€ 58.00

32099

320991062
ref: 32099

CASE

€ 108.50

32109

321091042
ref: 32109

GRIP-FRAME,LH

€ 56.00

32109A

321091043
ref: 32109A

GRIP-FRAME,RH

€ 50.00

35011

350111165
ref: 35011

STAY,RR

€ 56.50

35011A

350111230
ref: 35011A

STAY,MUFFLER,LH

€ 168.00

35011B

350111231
ref: 35011B

STAY,MUFFLER,RH

€ 165.00

53044

530441126
ref: 53044

TRIM,CASE

€ 19.50

92001

920011870
ref: 92001

BOLT,6X25

€ 2.50

92009

920091186
ref: 92009

SCREW,SEAT COVER

€ 2.50

92009A

920091254
ref: 92009A

SCREW,TAPPING,4X12

€ 2.50

92009B

920091300
ref: 92009B

SCREW,5X18

€ 2.00

92015

920151233
ref: 92015

NUT,FLANGED,6MM

€ 3.50

92027

920271018
ref: 92027

COLLAR,L=3.5

€ 3.00

92037

920371455
ref: 92037

CLAMP,REAR SHOCK

€ 6.50

92037A

920371456
ref: 92037A

CLAMP,REAR SHOCK

€ 5.50

92075

92075078
ref: 92075

DAMPER,RUBBER

€ 2.50

92075A

92075281
ref: 92075A

DAMPER,9X24X14

€ 4.00

120

120S0830
ref: 120

BOLT-SOCKET,8X30,BLAC

€ 3.00

120A

120S0860
ref: 120A

BOLT-SOCKET

€ 3.00

180

180B0614
ref: 180

BOLT-UPSET-WSP

€ 2.50

180A

180B0616
ref: 180A

BOLT-UPSET-WS

€ 0.50

180B

180B0620
ref: 180B

BOLT-UPSET-WS

€ 0.50

187

187B0612
ref: 187

BOLT-UPSET-WSP

€ 0.50

700

700Q05720
ref: 700

TUBE-VINYL,5X720

€ 1.50
