Genuine ZX Kawasaki Parts delivered quickly!


RADIATOR

ZX1200C4 ZZR1200 2005 USA CALIFORNIA CANADA

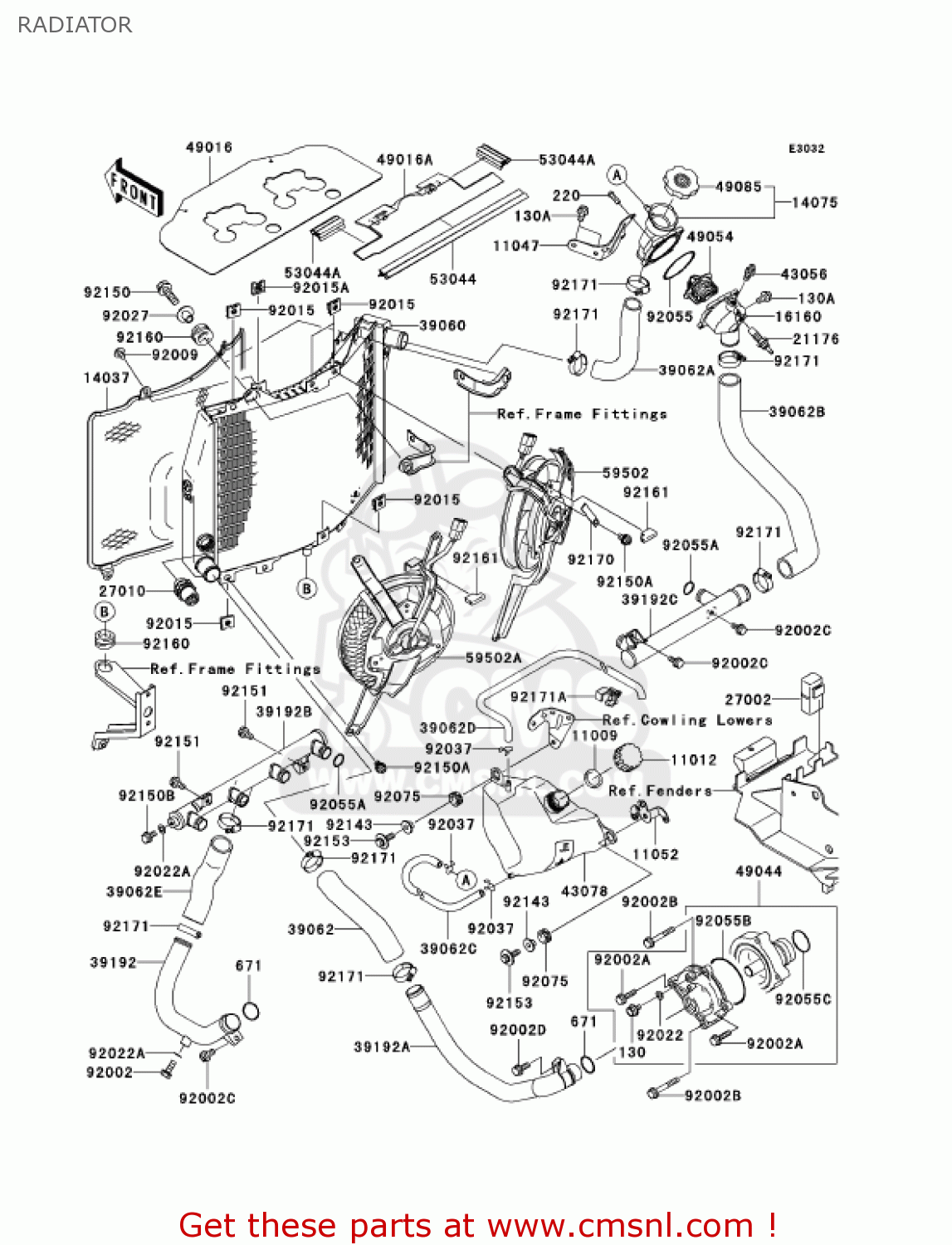

Radiator diagram ZX1200C4 ZZR1200 2005 USA CALIFORNIA CANADA

RADIATOR ZX1200C4 ZZR1200 2005 USA CALIFORNIA CANADA
RADIATOR ZX1200C4 ZZR1200 2005 USA CALIFORNIA CANADA
RADIATOR ZX1200C4 ZZR1200 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
11047
110471887
ref: 11047
BRACKET,THERMOSTAT BO
€ 10.00
11052
110521718
ref: 11052
BRACKET,RESERVOIR
€ 5.50
14037
140371172
ref: 14037
SCREEN,RADIATOR
140371172
€ 58.50
14075
140751068
ref: 14075
CAP-ASSY
140751068
€ 134.00
16160
161601117
ref: 16160
BODY,THERMOSTAT
161601117
€ 59.00
21176
211761054
ref: 21176
SENSOR,WATER
211761054
€ 49.50
27002
270021086
ref: 27002
RELAY-ASSY
270021086
€ 23.00
27010
270101443
ref: 27010
SWITCH
270101443
€ 115.50
39060
390601181
ref: 39060
RADIATOR
390601181
€ 846.50
39062
390621377
ref: 39062
HOSE-COOLING,RADIATOR
390621377
€ 27.00
39062A
390621531
ref: 39062A
HOSE-COOLING,THERMO-R
390621531
€ 27.00
39062B
390621542
ref: 39062B
HOSE-COOLING,HEAD-THE
390621542
€ 39.50
39062C
390621894
ref: 39062C
HOSE-COOLING,THERMOST
€ 29.00
39062D
390621895
ref: 39062D
HOSE-COOLING,OVERFLOW
€ 15.00
39062E
390621897
ref: 39062E
HOSE-COOLING,PUMP-CYL
390621897
€ 24.00
39192
391921011
ref: 39192
PIPE-WATER,PUMP-CYLIN
391921011
€ 56.00
39192A
391921145
ref: 39192A
PIPE-WATER,INLET
€ 60.00
39192B
391921146
ref: 39192B
PIPE-WATER,INLET
391921146
€ 85.00
39192C
391921147
ref: 39192C
PIPE-WATER,OUTLET
391921147
€ 109.00
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43078
430781183
ref: 43078
RESERVOIR
€ 56.00
49016
490161166
ref: 49016
COVER-SEAL
€ 38.50
49016A
490161215
ref: 49016A
COVER-SEAL,HEAD COVER
490161215
€ 31.00
49044
490441080
ref: 49044
PUMP-WATER
490441080
€ 252.50
49054
490541051
ref: 49054
THERMOSTAT
490541051
€ 44.50
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
490851067
€ 39.50
53044
530441331
ref: 53044
TRIM,L=403
€ 24.50
53044A
530441332
ref: 53044A
TRIM,L=70
€ 5.00
59502
595021145
ref: 59502
FAN-ASSY,RH
€ 592.50
59502A
595021146
ref: 59502A
FAN-ASSY,LH
€ 660.00
92002
920021099
ref: 92002
BOLT,6X16
€ 1.50
92002A
920021392
ref: 92002A
BOLT,6X22
920021392
€ 3.00
92002B
920021566
ref: 92002B
BOLT,6X40
920021566
€ 3.00
92002C
920021569
ref: 92002C
BOLT,6X12
920021569
€ 2.50
92002D
920021571
ref: 92002D
BOLT,6X16
920021571
€ 4.00
92009
920091261
ref: 92009
SCREW,TAPPING,6MM
920091261
€ 2.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151758
ref: 92015A
NUT
920151758
€ 4.50
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
130A
130H0612
ref: 130A
BOLT-FLANGED,6X12
130H0612
€ 0.50
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
671
671B2525
ref: 671
O RING,25MM
671B2525
€ 3.00
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
920221976
€ 4.00
92022A
92022304
ref: 92022A
WASHER,PLAIN
92022304
€ 2.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
920271134
€ 7.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92055A
920551282
ref: 92055A
RING-O
920551282
€ 3.00
92055B
920551423
ref: 92055B
RING-O,WATER PUMP INS
920551423
€ 6.00
92055C
920551424
ref: 92055C
RING-O,33.2X2.4
920551424
€ 4.00
92075
920751634
ref: 92075
DAMPER
920751634
€ 3.00
92143
921431962
ref: 92143
COLLAR
921431962
€ 4.00
92150
921501007
ref: 92150
BOLT
921501007
€ 2.50
92150A
921501186
ref: 92150A
BOLT
921501186
€ 3.00
92150B
921501826
ref: 92150B
BOLT,6X12
921501826
€ 2.50
92151
921511997
ref: 92151
BOLT,6X12
921511997
€ 1.00
92153
921531170
ref: 92153
BOLT,M6
€ 1.00
92160
921601007
ref: 92160
DAMPER
921601007
€ 3.50
92161
921611277
ref: 92161
DAMPER,HEAT GUARD
€ 2.00
92170
921701937
ref: 92170
CLAMP
€ 1.50
92171
921710179
ref: 92171
CLAMP
921710179
€ 7.50
92171A
921711512
ref: 92171A
CLAMP,TUBE
€ 2.50
