CYLINDER/PISTON(S)

ZX1200C4 ZZR1200 2005 USA CALIFORNIA CANADA

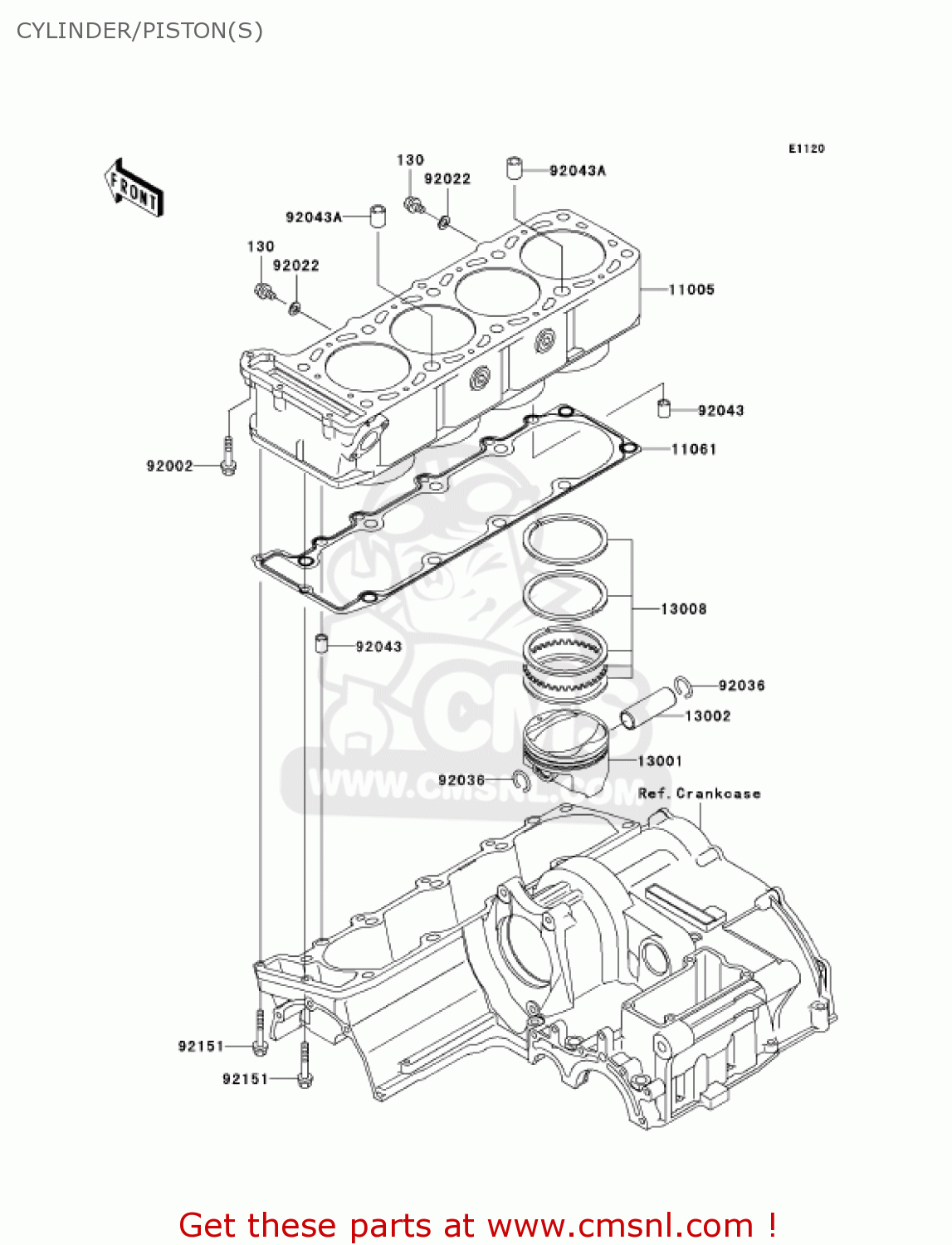

Cylinder/piston(s) diagram ZX1200C4 ZZR1200 2005 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130Y0610
ref: 130

BOLT-FLANGED

€ 2.50

11005

110051945
ref: 11005

CYLINDER-ENGINE

€ 1,651.50

11061

110611060
ref: 11061

GASKET,CYLINDER (NAS)

€ 28.50

13001

130011627
ref: 13001

PISTON-ENGINE

€ 110.50

13002

130021124
ref: 13002

PIN-PISTON

€ 25.00

13008

130081211
ref: 13008

RING-SET-PISTON

€ 70.00

92002

920021138
ref: 92002

BOLT,6X30

€ 3.00

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92036

92036008
ref: 92036

CIRCLIP-PISTON PIN

€ 0.50

92043

920431264
ref: 92043

PIN,DOWEL,8.2X10X14

€ 0.50

92043A

920431279
ref: 92043A

PIN,11.5X14X14

€ 3.00

92151

921511904
ref: 92151

BOLT,6X38

€ 1.50
