GEAR CHANGE DRUM/SHIFT FORK(S)

ZX1200C1 ZZR1200 2002 USA CALIFORNIA CANADA

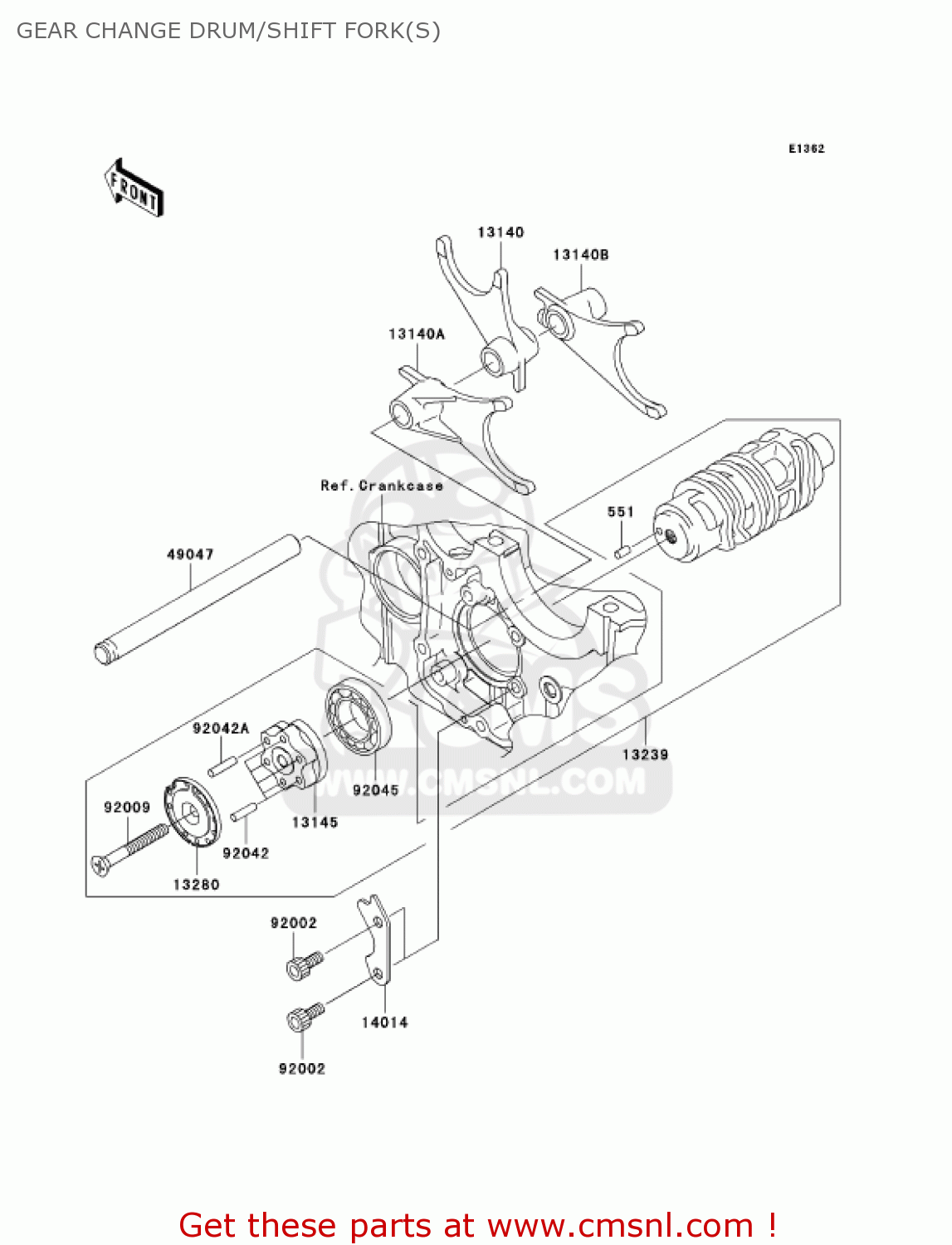

Gear change drum/shift fork(s) diagram ZX1200C1 ZZR1200 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

551

551A0408
ref: 551

PIN-DOWEL,4X8

€ 0.50

13140

131401196
ref: 13140

FORK-SHIFT

€ 79.00

13140A

131401197
ref: 13140A

FORK-SHIFT

€ 79.00

13140B

131401198
ref: 13140B

FORK-SHIFT

€ 79.00

13145

131451091
ref: 13145

CAM-CHANGE DRUM

€ 43.50

13239

132391213
ref: 13239

DRUM-ASSY-CHANGE

€ 260.50

13280

132801230
ref: 13280

HOLDER

€ 17.00

14014

140141059
ref: 14014

PLATE-POSITION,CHANGE

€ 10.00

49047

490471055
ref: 49047

ROD-SHIFT

€ 25.00

92002

920021778
ref: 92002

BOLT,SOCKET,6X16

€ 3.00

92009

920091599
ref: 92009

SCREW

€ 2.50

92042

92042014
ref: 92042

PIN-GEAR CHANGE DRUM

€ 0.50

92042A

92042020
ref: 92042A

PIN-GEAR CHANGE DRUM

€ 3.00

92045

920451045
ref: 92045

BEARING-BALL,16005

€ 27.00

GEAR CHANGE DRUM/SHIFT FORK(S)

all assemblies
